80366198-100 MU-KBFT01 | Honeywell FTA Bridge Cable

Overview

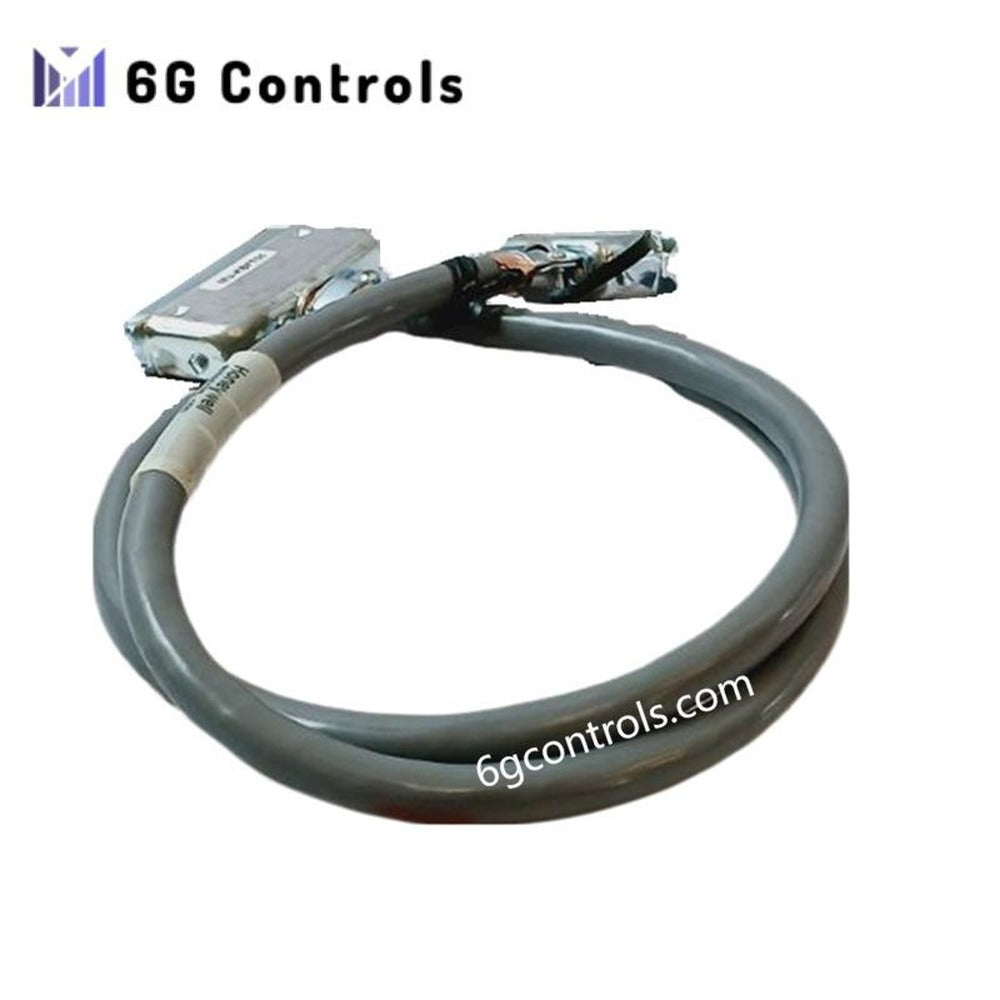

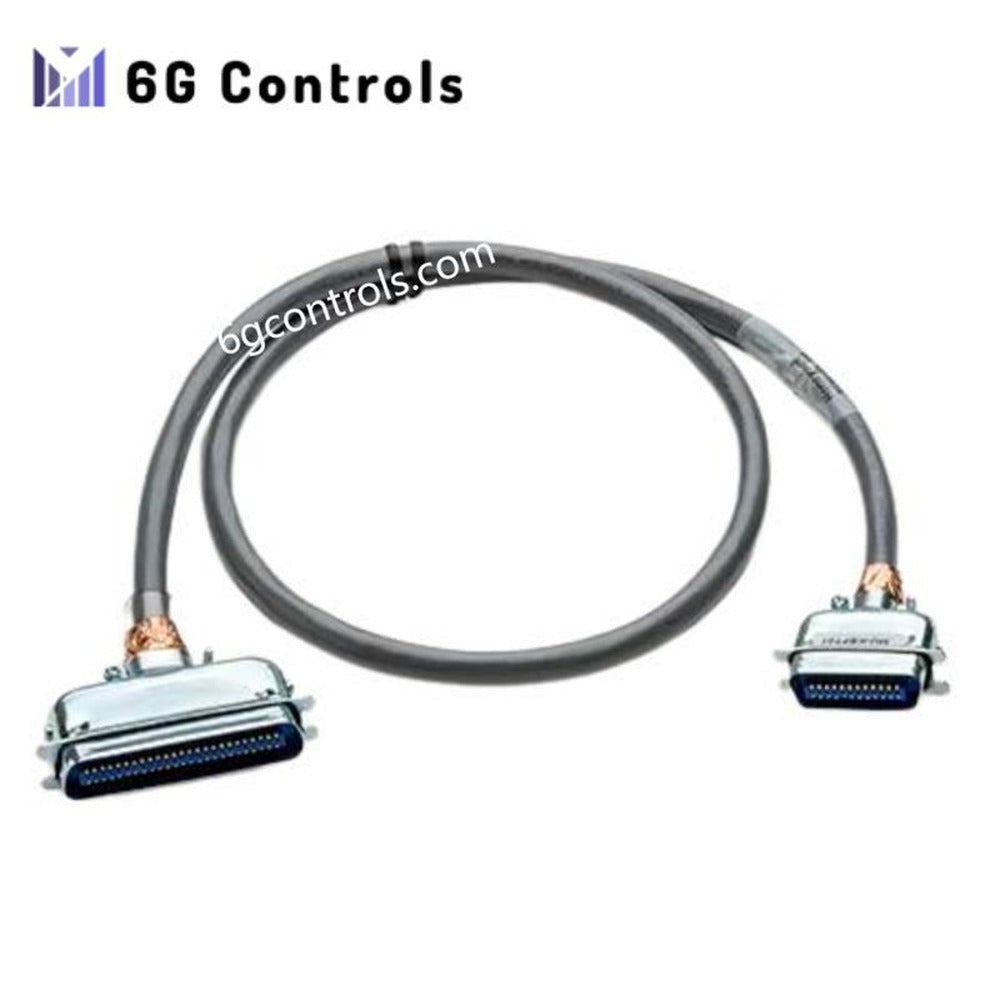

The 80366198-100 is a factory-assembled bridge interconnect cable developed for seamless integration within Honeywell TDC3000 and Experion PKS control architectures. It is used to establish reliable signal paths between control modules, Field Terminal Assemblies (FTAs), and associated I/O interfaces where signal stability and electromagnetic integrity are critical.

Engineered specifically for Honeywell control platforms, this cable supports continuous operation in electrically noisy and physically demanding industrial environments.

System Compatibility

• Honeywell TDC3000 Distributed Control Systems
• Honeywell Experion PKS Control Systems
• Honeywell FTAs and compatible I/O modules

​Electrical Characteristics

The 80366198-100 bridge cable is designed for low-level signal transmission while maintaining strong resistance to external interference.

• Rated insulation voltage up to 300 VAC
• Optimized for low-current analog and digital signals
• Multi-conductor architecture with full-length shielding
• High insulation resistance to minimize signal leakage
• Effective EMI/RFI suppression via foil shield and drain wire

Mechanical Construction

• Stranded copper conductors for flexibility and durability
• Typical conductor size range: 22–24 AWG
• Industrial-grade outer jacket (PVC or LSZH depending on production lot)
• Honeywell proprietary keyed connectors, factory terminated
• Standard cable length: 1 meter
• Minimum bend radius: 10 times overall cable diameter
• Weight: 0.44 lbs

Environmental Performance

Designed for continuous use in harsh industrial locations, the 80366198-100 supports stable operation across a wide range of environmental conditions.

• Operating temperature range: –20°C to +60°C
• Storage temperature range: –40°C to +80°C
• Relative humidity tolerance: 5% to 95% non-condensing
• Resistant to vibration typical of process plants
• Suitable for installations with high electromagnetic exposure

Compliance and Standards

• Fully compliant with Honeywell system design requirements
• Typically RoHS compliant
• Manufactured to meet applicable UL and CE industrial control standards

Typical Applications

• Module-to-module interconnection in Honeywell DCS cabinets
• FTA-to-I/O signal bridging
• Control system upgrades and maintenance replacements
• Refineries, petrochemical plants, power generation facilities, and other continuous-process industries

FAQ

Q: Is the 80366198-100 interchangeable with generic industrial cables? A: No. This cable uses Honeywell-specific connectors and pin assignments and should only be replaced with the same or approved equivalent part.

Q: Does the “-100” suffix indicate cable length? A: Yes. The “-100” designation corresponds to a standard 1-meter factory-defined length and connector configuration.

Q: Can this cable be used in high-noise environments? A: Yes. The full shielding design provides strong noise immunity suitable for electrically harsh industrial control cabinets.
