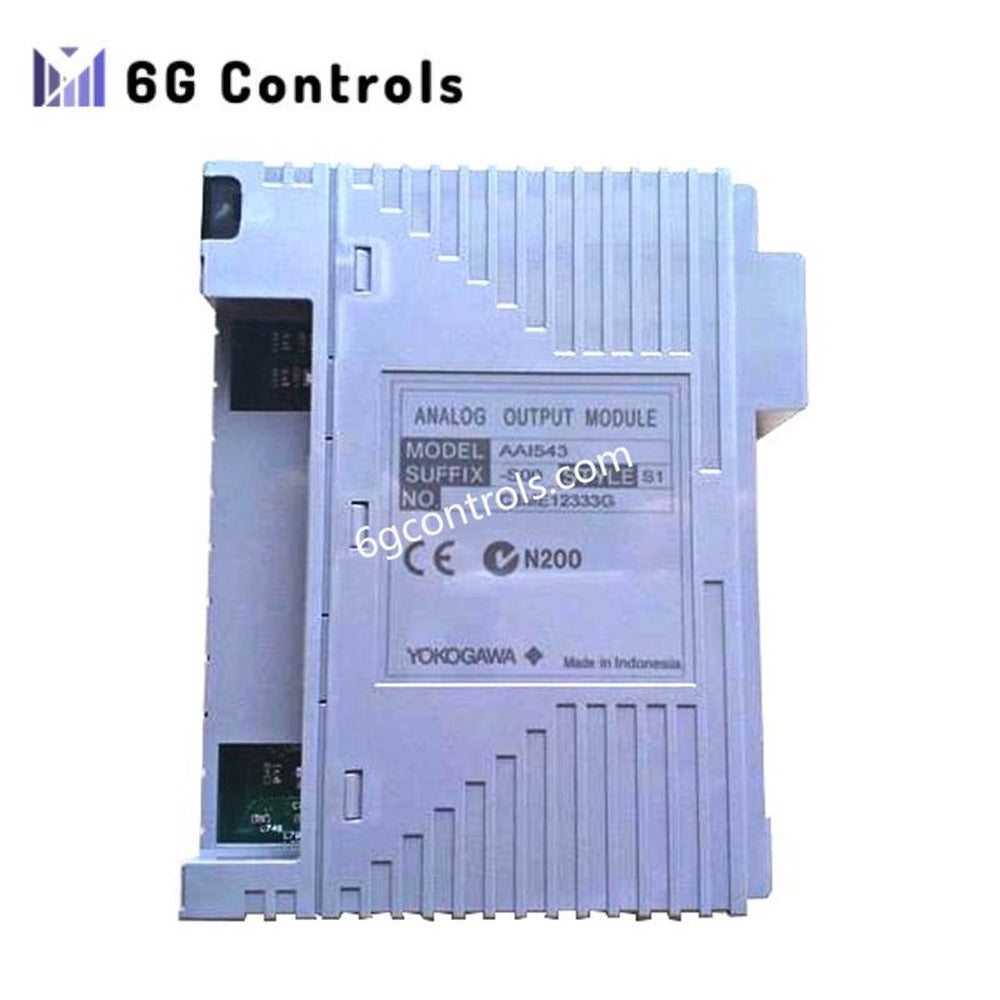

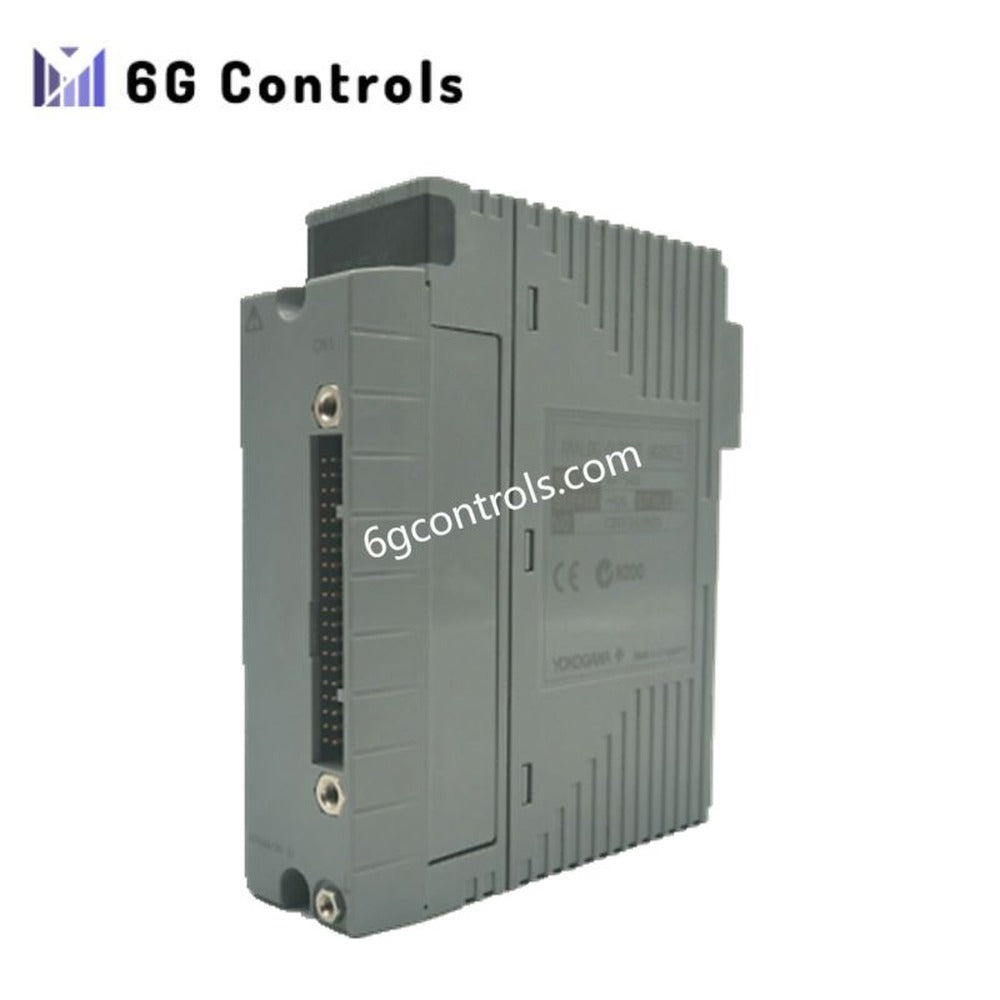

AAI543-H00/A4S10 | Yokogawa | Isolated Analog Output Module

Product Overview

The AAI543-H00/A4S10 is a multi-channel current output module designed for Yokogawa CENTUM distributed control systems. It provides accurate and repeatable 4–20 mA output signals from field control stations to final control elements, supporting stable closed-loop control in continuous and batch process applications. The module’s isolated architecture enhances operational reliability in electrically noisy plant environments.

Operational Description

Within a CENTUM system, the AAI543-H00/A4S10 functions as the interface between digital control logic and analog field equipment. Control data generated by the FCS is converted into analog current outputs suitable for driving valves, actuators, and positioning devices. Electrical isolation between channels helps prevent signal distortion caused by ground potential differences or external interference.

Technical Specifications

• Model and option code: AAI543-H00/A4S10
• Module classification: Analog output module, isolated type
• Output signal format: 4 to 20 mA DC
• Number of output channels: 16 independent channels
• Channel isolation: Individual channel-to-channel isolation
• Intended duty: Continuous analog control output
• Dimensions: 107.5 × 32.8 × 130 mm
• Weight: 0.4 kg
• Installation: Standard Yokogawa I/O rack mounting

System Compatibility

The AAI543-H00/A4S10 is engineered for use with Yokogawa CENTUM control platforms and supports integration with:

• ESB bus node units ANB10S and ANB10D
• Optical ESB bus node units ANB11S and ANB11D
• ER bus node units ANR10S and ANR10D
• Field control units AFV30, AFV40, and AFF50 series

This ensures consistent performance across conventional and optical bus architectures.

Application Areas

Typical deployment scenarios include:

• Analog control of process valves and dampers
• Current-loop output to actuators and I/P converters
• Distributed control in chemical, petrochemical, power, and utility plants
• High-channel-density output requirements within compact control cabinets

Frequently Asked Questions

Are the output channels electrically isolated? Yes. Each output channel is isolated to reduce noise coupling and improve loop stability.

What type of devices can this module drive? Any field device that accepts a standard 4–20 mA control signal, including control valves and actuators.

Is this module suitable for long-term continuous operation? Yes. It is designed for continuous duty in process industry environments under normal CENTUM operating conditions.
