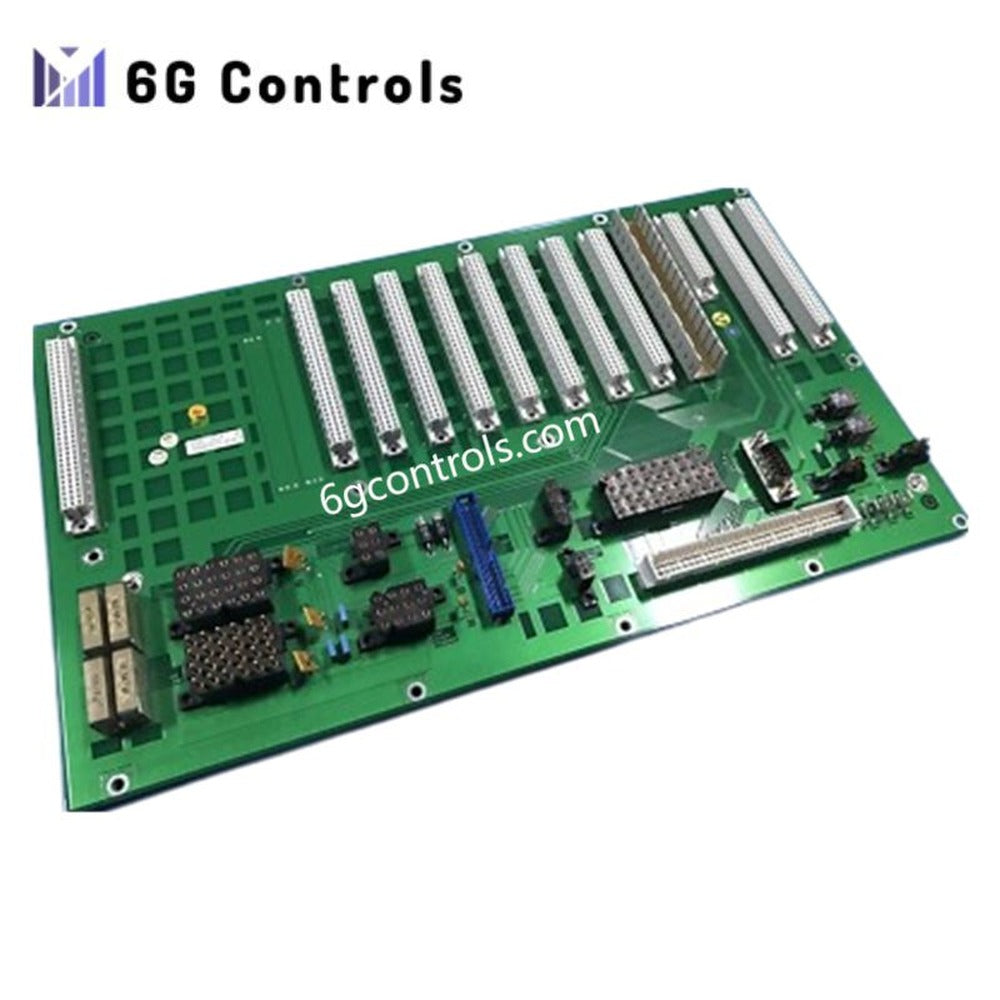

ABB 1JNL100100-591 10-Slot Backplane High Quality

14 in stock

Manufacturer: ABB
Product No.: 1JNL100100-591
Product Type: Backplane
Condition: Brand New
Payment: T/T, Western Union
Weight: 1.5 kg
Dimensions: 495 mm × 121.5 mm × 22.5 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Product Description

The ABB 1JNL100100-591 is a high-performance 10-slot backplane designed for ABB Advant OCS and Symphony Plus distributed control systems. It ensures seamless integration between controllers, I/O modules, and communication units, supporting large-scale process automation. Moreover, its compact rack-mounted design maximizes cabinet space efficiency while providing reliable mechanical and electrical connections. Engineers can trust this backplane to maintain signal integrity and reduce system downtime, even in harsh industrial environments.

This backplane delivers robust support for multiple modules and facilitates easy installation or replacement, minimizing maintenance efforts. In addition, the industrial-grade construction guarantees long-term durability, ensuring uninterrupted system performance. Whether used in chemical, petrochemical, or power generation applications, this module reliably manages complex automation tasks with precision.

Key Features

Supports up to 10 modules for flexible system expansion.
Compact rack-mounted design conserves cabinet space.
Provides stable electrical bus connections between modules.
Ensures low-noise signal transmission and high signal integrity.
Industrial-grade durability suitable for harsh environments.
Easy installation and replacement reduce downtime.

Technical Specifications

Model: 1JNL100100-591
Type: 10-Slot Backplane
Manufacturer: ABB
Slots: 10 module slots
Weight: 1.5 kg
Mounting: Rack-mounted
Electrical Connections: Stable bus connections for multiple modules

Typical Applications

Large-scale process automation in chemical, petrochemical, or power generation industries.
Industrial control systems requiring integration of multiple I/O and communication modules.
Distributed control systems (DCS) for manufacturing and infrastructure projects.
Process monitoring and control in complex automation environments.

Support & Maintenance

ABB’s 1JNL100100-591 is designed for low-maintenance operation and long-term reliability. Routine checks and proper installation help maintain consistent system performance. Furthermore, ABB provides technical support for installation guidance, troubleshooting, and spare parts availability.

FAQ

Q: Is this backplane compatible with all ABB Advant OCS systems? A: Yes, it supports ABB Advant OCS and Symphony Plus distributed control systems.

Q: How many modules can I install on this backplane? A: The 1JNL100100-591 backplane accommodates up to 10 modules.

Q: What is the recommended mounting method? A: Rack-mounted installation is recommended for efficient space utilization.

Q: Does it come with a warranty? A: Yes, ABB provides a 12-month warranty covering manufacturing defects.

Q: Can it be used in harsh industrial environments? A: Absolutely, its industrial-grade construction ensures reliable performance in demanding conditions.

Payment: T/T, Western Union.

Shipping port: Xiamen.

Lead time: Typically 1–3 working days after payment confirmation (subject to stock).

Worldwide delivery: We ship industrial automation parts to customers around the world. Freight is quoted with your RFQ.
