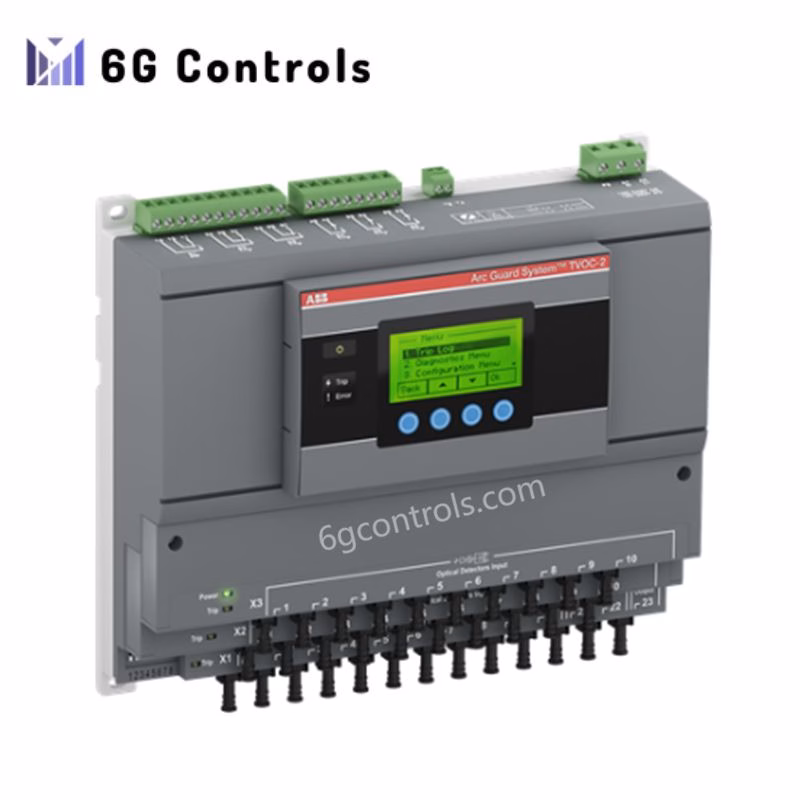

ABB 1SFA664001R1001 TVOC-2-240 Arc Monitor Brand New

General Information

• Extended Product Type: TVOC-2-240
• Product ID: 1SFA664001R1001
• EAN: 7320500382172
• Catalog Description: TVOC-2-240 Arc Monitor
• Long Description:
  The TVOC-2 Arc Guard System is an advanced arc protection relay. It detects arc light and sends a trip signal within 1 ms using fast IGBT outputs. It helps protect both people and equipment by extinguishing arc faults rapidly.
  • 10 detector inputs
  • Can trip up to 3 breakers
  • Supports zone selectivity
  • Expandable to 30 detectors with 2 extension units
  • Integrated HMI display for mounting on panel doors
  • Supply voltage: 100–250 V DC or 100–240 V AC, 50/60 Hz

Compliance & Environmental

• REACH Declaration: ABB Arc Guard System
• RoHS Status: Complies with EU Directive 2011/65/EU & Amendment 2015/863
• RoHS Document: 2AGS2022-006277-RoHS
• CMRT (Conflict Minerals): CMRT available
• TSCA Compliance: 2CMT001035D0902a
• Operating Temp: -25°C to +55°C
• Storage Temp: -25°C to +55°C
• Environmental Info: Product Environmental Information available

Ordering Information

• Order Code (US/Canada): TVOC-2-240
• E-Numbers:
  • Finland: 2712000
  • Norway: 4116451
  • Sweden: 2801705
• Minimum Order Quantity: 1 piece
• Customs Tariff Number: 85389099

Dimensions & Weight

• Net Width: 210 mm
• Net Height: 230 mm
• Net Depth: 80 mm
• Net Weight: 1.2 kg

Technical Specifications

• Product Type: Arc Monitor
• Product Main Type: TVOC-2
• Mounting: Wall mount or DIN rail
• Rated Operational Voltage: 100–240 V AC/DC
• Power Loss: 1.5 W
• Terminal Type: Screw Terminals
• Auxiliary Contacts:
  • NO (Normally Open): 3
  • CO (Change Over/SPDT): 3
  • NC (Normally Closed): 0
