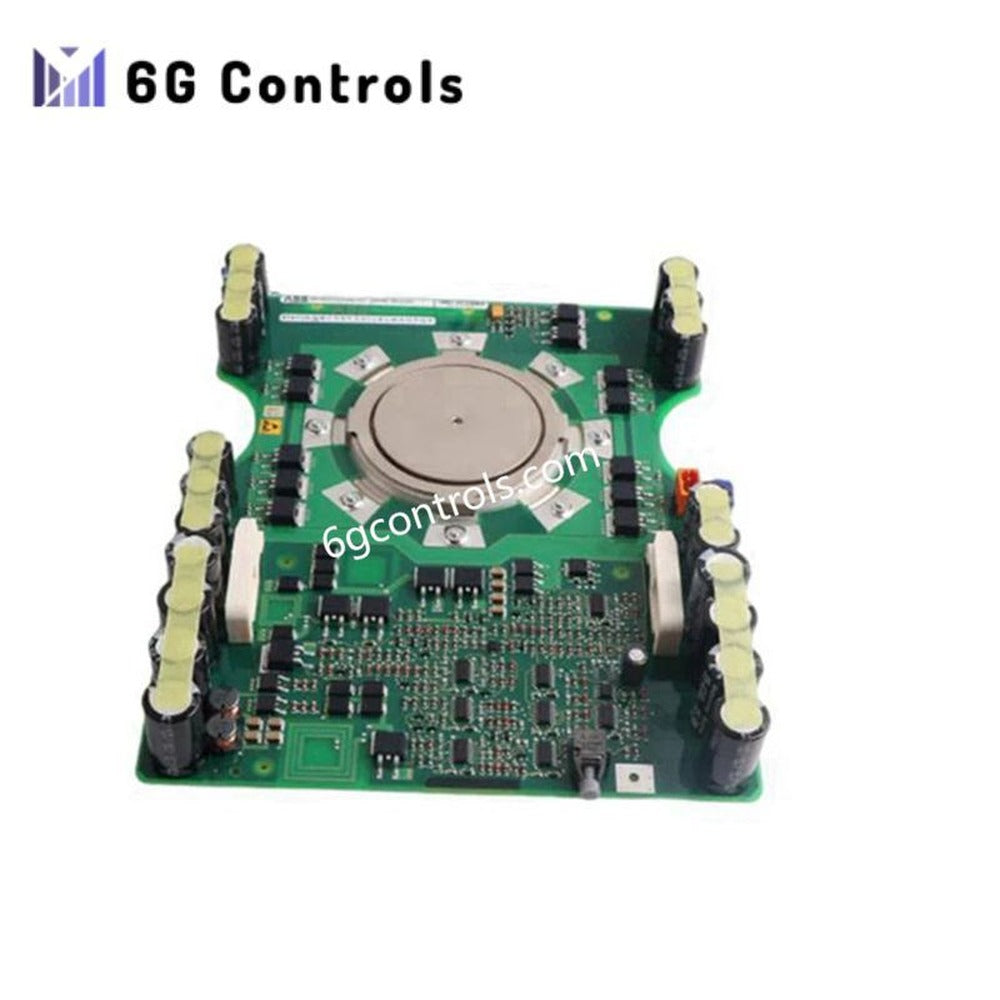

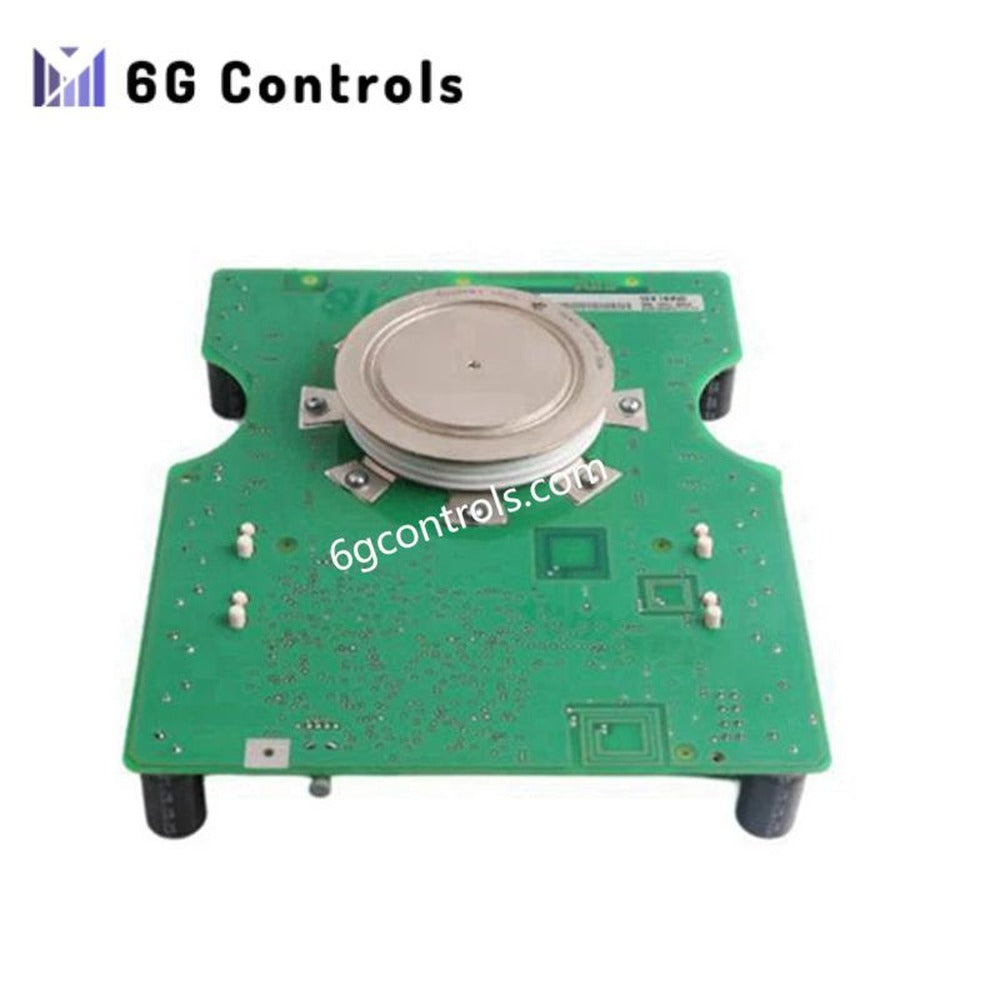

ABB 3BHB003230R0101 3BHL000391P0101 5SHY1445H0001 IGCT Module

Overview

The ABB 3BHB003230R0101 3BHL000391P0101 5SHY1445H0001 IGCT Module is a high-performance medium-voltage power semiconductor designed for industrial drive systems. It uses advanced IGCT technology to combine fast switching with high current handling, providing precise control for large motors and heavy-duty industrial applications. Moreover, its robust design ensures stable operation in demanding environments, reducing maintenance requirements and optimizing energy efficiency. This module integrates seamlessly with ACS2000 drives, enabling reliable, long-term performance in critical operations.

Key Features

• IGCT technology delivers high-speed switching with low conduction losses for efficiency.
• Rugged module construction supports harsh industrial environments and continuous duty.
• Compact and modular design facilitates integration into medium-voltage drive systems.
• Ensures precise motor control and torque stability under variable load conditions.
• Air-cooled configuration simplifies maintenance while maintaining thermal stability.

Technical Specifications

Manufacturer: ABB Model: 3BHB003230R0101 3BHL000391P0101 5SHY1445H0001

Product Type: Medium Voltage IGCT Module Series: ACS2000 Technology: IGCT (Integrated Gate-Commutated Thyristor) Country of Origin: Sweden Cooling Method: Air-cooled

Dimensions:

• Depth: 310.5 mm
• Height: 38.7 mm
• Width: 238.5 mm

Weight:

• 1.445 kg

Electrical Ratings:

• Voltage: 1700–4500 V (system dependent)
• Current: 1445–4000 A (depending on configuration)
• Switching Frequency: ~500 Hz

Typical Applications

This IGCT module is widely used in industrial power systems where high reliability is required. For instance, it controls medium-voltage motors in oil and gas pumping stations. In mining, it drives conveyors, crushers, and ventilation fans with stable torque. In addition, power generation facilities integrate the module into auxiliary and turbine drives, benefiting from its long-term stability and energy efficiency. The module also supports HVDC converters, FACTS, and SVC systems for advanced power-quality applications.

Support & Maintenance

Routine inspection and thermal management are essential to ensure long-term performance. Therefore, ABB recommends monitoring current, voltage, and temperature during operation. Moreover, authorized ABB service centers provide replacement modules and technical guidance, reducing downtime and enhancing system reliability.

FAQ

Q1: What type of motors can the ABB 3BHB003230R0101 module control? A: It supports medium-voltage induction and synchronous motors in industrial drive systems.

Q2: Is external cooling required for the module? A: No, the module is designed for air-cooled operation within the ACS2000 system.

Q3: Can it operate in harsh environments? A: Yes, the module’s rugged design ensures reliable performance in dust, vibration, and high-temperature conditions.

Q4: Which industries commonly use this module? A: Oil and gas, mining, metals, power generation, and heavy manufacturing applications.
