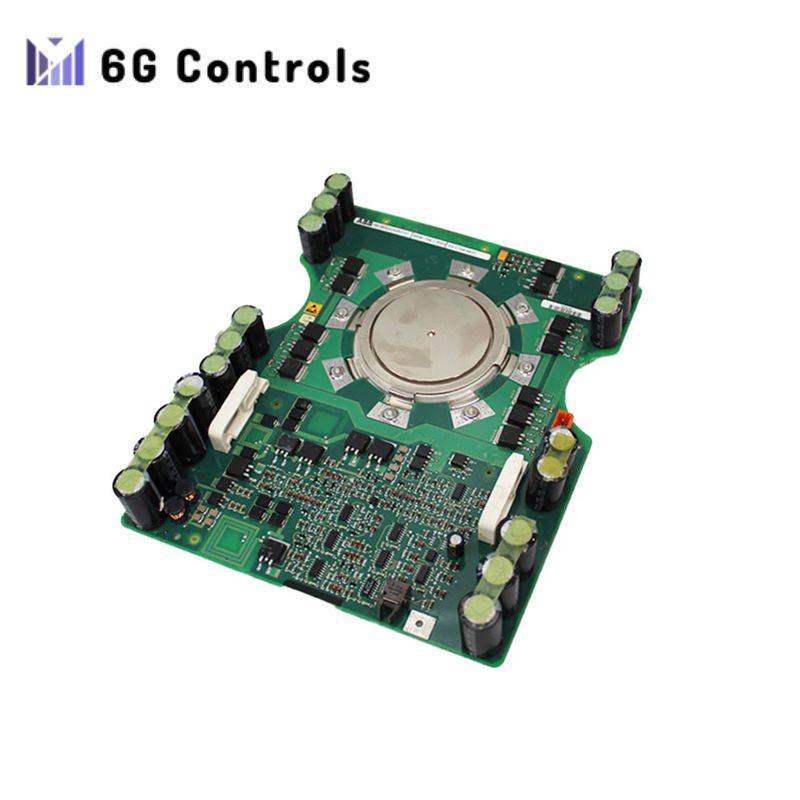

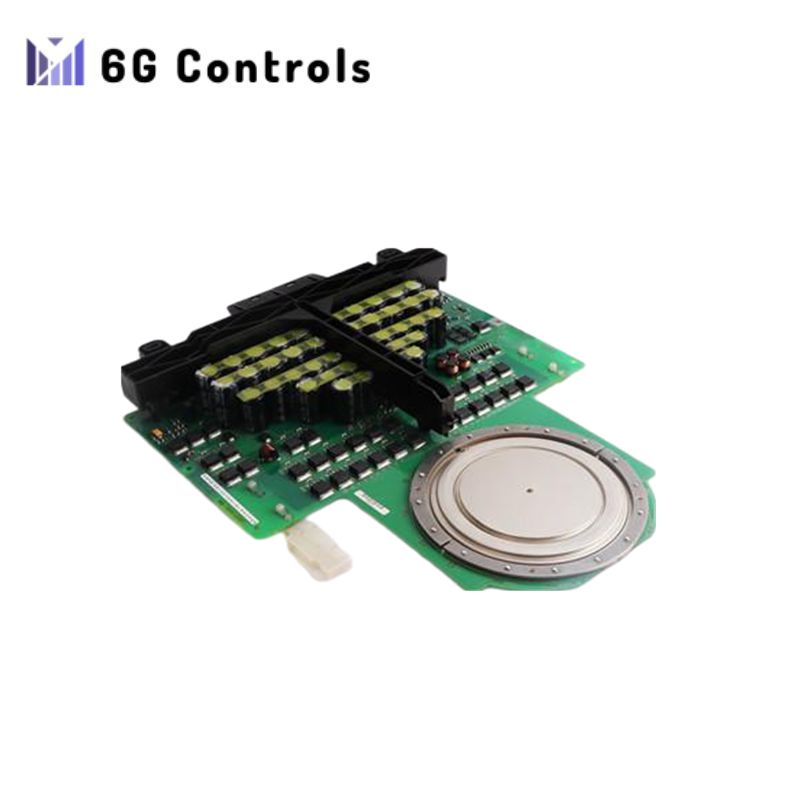

ABB 3BHE022333R0101 5SHX0660R0002 5SXE05-0158 IGCT Module

The ABB 3BHE022333R0101 5SHX0660R0002 5SXE05-0158, also cataloged as the 5SHX0660R0002 IGCT Module, operates as a dedicated hardware component for high-power semiconductor switching and power conversion within medium-voltage industrial drives and power grid infrastructure.

Hardware Specifications

Backplane Communication and Deterministic Gate Control

The ABB 3BHE022333R0101 5SHX0660R0002 integrated gate unit requires deterministic signal transmission through low-latency optical or backplane bus interfaces to manage rapid current commutation. Firmware flash compatibility across driving cards ensures low signal jitter during turn-on and turn-off sequences, preventing uneven current distribution across the semiconductor junction. In high-density power electronic assemblies, backplane control signals execute deterministic switching profiles to minimize thermal dissipation spikes and sustain maximum turn-off current ratings under continuous operational loads.

Frequently Asked Questions

Q: What are the primary thermal management requirements for this IGCT module?

A: The module supports both forced-air and liquid cooling configurations. Proper surface flatness, double-sided clamping pressure, and precise thermal interface material application are required to prevent thermal runaways during high current peak turn-off events.

Q: Can this module be operated above a 1 kHz switching frequency?

A: Operating above the specified 1 kHz switching frequency limit increases switching losses and gate unit power dissipation beyond safe thermal design thresholds, potentially degrading semiconductor lifespan.

Field Installation Guidelines

1. Ensure the press-pack mounting surfaces are strictly free of contamination, metallic particles, and oxidation prior to positioning the assembly.
2. Apply a thin, uniform layer of recommended thermal compound across both contact faces if specified by the mechanical design drawing.
3. Utilize calibrated torque wrenches and clamping fixtures to apply exact, symmetrical clamping force across the semiconductor stack to guarantee uniform electrical and thermal contact.
4. Verify that optical fiber control connections to the gate unit board are clean, correctly routed without exceeding minimum bend radii, and fully seated to prevent gate drive signal errors.
5. Connect safety ground conductors and bonding links in compliance with local high-voltage power isolation standards before applying busbar voltages.
