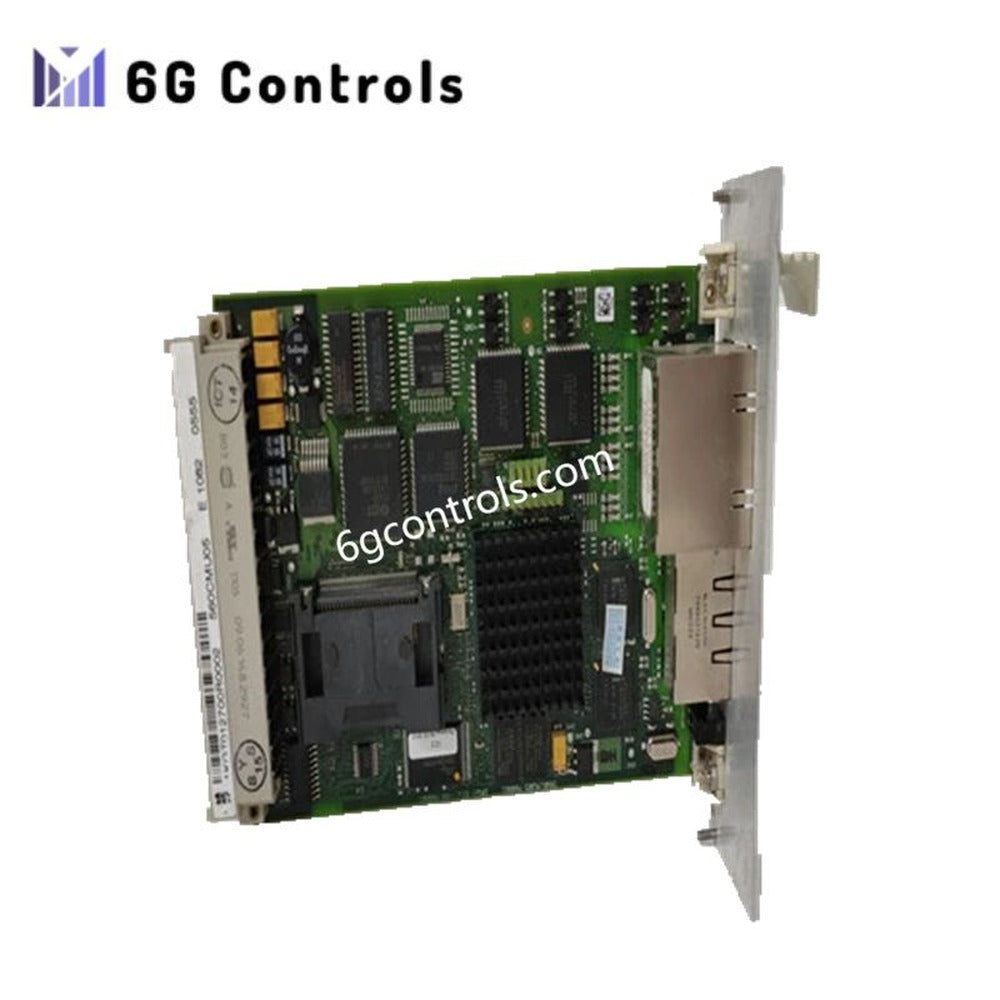

ABB 560CMU05 1KGT012700R0001 Central Communication Module

Product Description

The ABB 560CMU05 is a high-performance central communication module for the RTU560 platform, designed for seamless data exchange in complex industrial networks. It manages multiple I/O modules, processes events in real time, and communicates efficiently with SCADA systems, HMIs, and intelligent electronic devices. Engineered for industrial environments, this module delivers reliable, fault-tolerant operation under demanding conditions. Moreover, its modular design ensures easy integration into existing RTU560 racks while supporting a wide range of communication protocols.

Key Features

• Multi-protocol communication including IEC 60870-5-101/104, IEC 61850, DNP3, Modbus, and TCP/IP.
• Redundant operation for enhanced reliability in mission-critical applications.
• Compact, modular design occupying only two RTU560 slots for flexible installation.
• Diagnostic LEDs indicate communication status, faults, and module health.
• USB port enables convenient on-site service and configuration.
• Industrial-grade performance over –25°C to +70°C operating temperature.
• Secure communication with encryption and authentication support.

Technical Specifications

• Model: 560CMU05
• Part Numbers: 1KGT012700R0001
• Type: Central Communication Module (RTU560 series)
• Processor: 32-bit CPU
• Memory: 128 MB RAM, 2 MB storage
• Interfaces:
  • 4 serial ports (RS-232/RS-485, RJ45)
  • 2 Ethernet ports (10/100BaseT, RJ45)
  • 1 USB port for service access
• Data Transfer Rates:
  • Ethernet: up to 100 Mbps
  • Serial: up to 38.4 kbps
• Power Supply: 24 V DC ±10%
• Dimensions: 14 cm × 20.3 cm × 5.8 cm
• Weight: 0.21 kg
• Operating Temperature: –25°C to +70°C

Typical Applications

• Substation automation for power transmission and distribution networks.
• Utility SCADA systems requiring reliable data exchange with field devices.
• Industrial automation in oil & gas, water treatment, and manufacturing.
• Critical projects demanding redundancy, secure communication, and high reliability.

FAQ

Q: What communication protocols does the 560CMU05 support? A: It supports IEC 60870-5-101/104, IEC 61850, DNP3, Modbus, and TCP/IP protocols.

Q: Can this module operate in harsh environments? A: Yes, it functions reliably from –25°C to +70°C and supports industrial-grade conditions.

Q: Does the 560CMU05 support redundancy? A: Absolutely. It allows for redundant operation to ensure fault-tolerant communication.

Q: How is the module installed in the RTU560 rack? A: Its modular design occupies two slots, allowing easy integration without additional modifications.

Q: Is secure communication supported? A: Yes, it offers encryption and authentication features for secure industrial data transfer.
