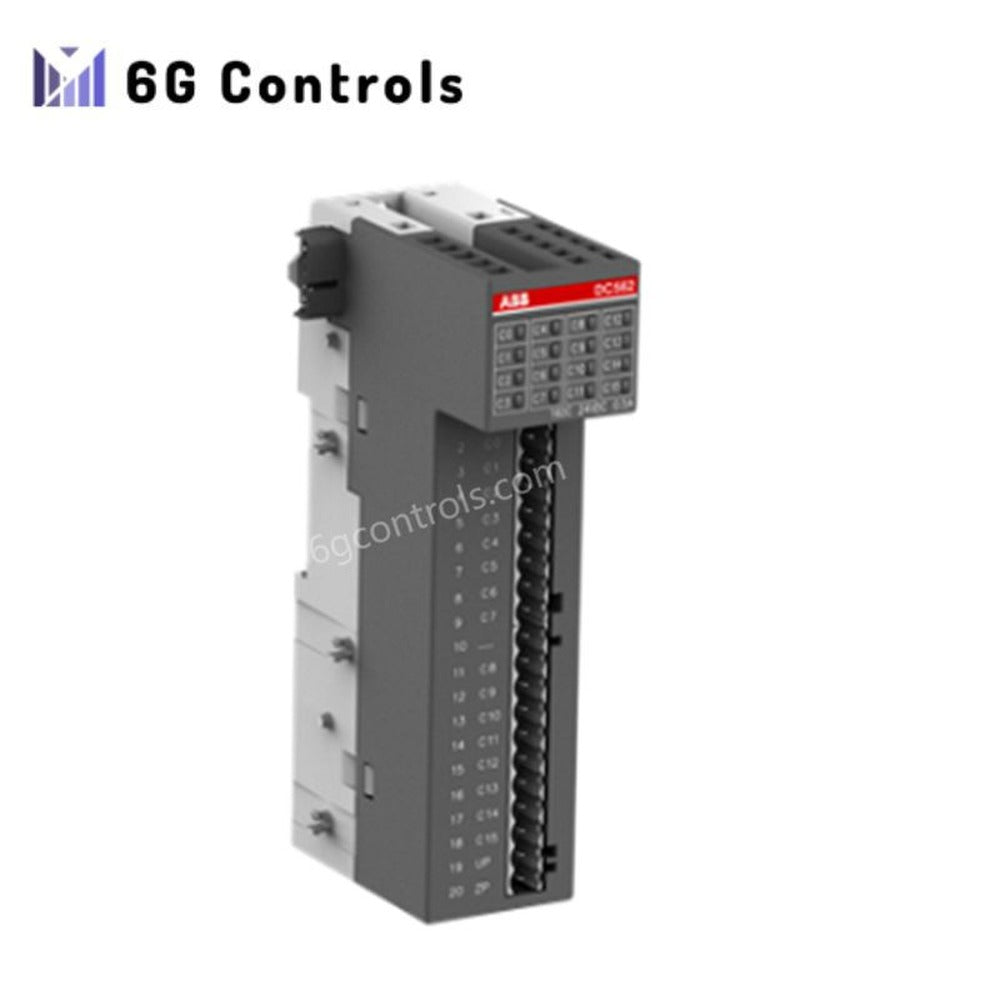

ABB DC562 1SAP231900R0000 Digital Input/Output Module

13 in stock

Manufacturer: ABB
Product No.: DC562-1SAP231900R0000
Product Type: Digital Input/Output Module
Condition: Brand New
Payment: T/T, Western Union
Dimensions: 75 mm × 135 mm × 34 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

General Information

Model: DC562
Product ID: 1SAP231900R0000
Type Designation: DC562 – S500-eCo Series
EAN: 4016779927574
Catalog Description: Digital input/output module. Transistor: 16DC: 0.5 A (DC562)
Long Description: DC562 is a digital I/O module in the S500-eCo family. It provides 16 configurable DI/DO channels at 24VDC and 0.5A with single-wire connection.
Invoice Description: Digital input/output module. 16 configurable DI/DO: 24VDC 0.5A
Customs Tariff Code (CN8): 85371091
Made to Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Selling Unit of Measure: piece

Technical Specifications

Function: 16 configurable DI/DO at 24VDC, 0.5A
I/O Type: Digital, configurable
Number of Channels: 16
Input Voltage Type: DC
Input Voltage Range: 0 to 30 VDC
Input Current: 5 mA
Input Delay Time (τ): 8 ms
Output Type: Transistor
Output Voltage Range: 20.4 to 28.8 VDC
Output Current: 0.5 A per channel
Connection Type: Pluggable
Protection Class: IP20
Supply Voltage Range: 20.4 to 28.8 VDC

Dimensions and Weight

Net Weight: 0.15 kg
Net Dimensions:
- Depth/Length: 75 mm
- Height: 135 mm
- Width: 34 mm
Gross Weight: 0.222 kg
Package Dimensions:
- Depth/Length: 93 mm
- Height: 63 mm
- Width: 170 mm
Package Units: 1 carton

Compliance and Environmental

CE Declaration: S500-eCo EU DoC
RoHS Status: Complies with EU Directive 2011/65/EU and Amendment 2015/863
RoHS Declaration Date: 2013
REACH Declaration: Contains substances above 0.1 mass percent
REACH Date: 2024-12-06
SCIP Code: bfeea254-2f62-465d-8fb2-666407f08264 (Germany)
WEEE Classification:
- Category: 5 – Small Equipment
- Type: Business to Business (B2B)

Standards and Classifications

Product Name: Distributed Automation PLCs
Product Type: DC562
ETIM (Version 8/9/10): EC001419 – PLC digital I/O module
UNSPSC: 32151705
