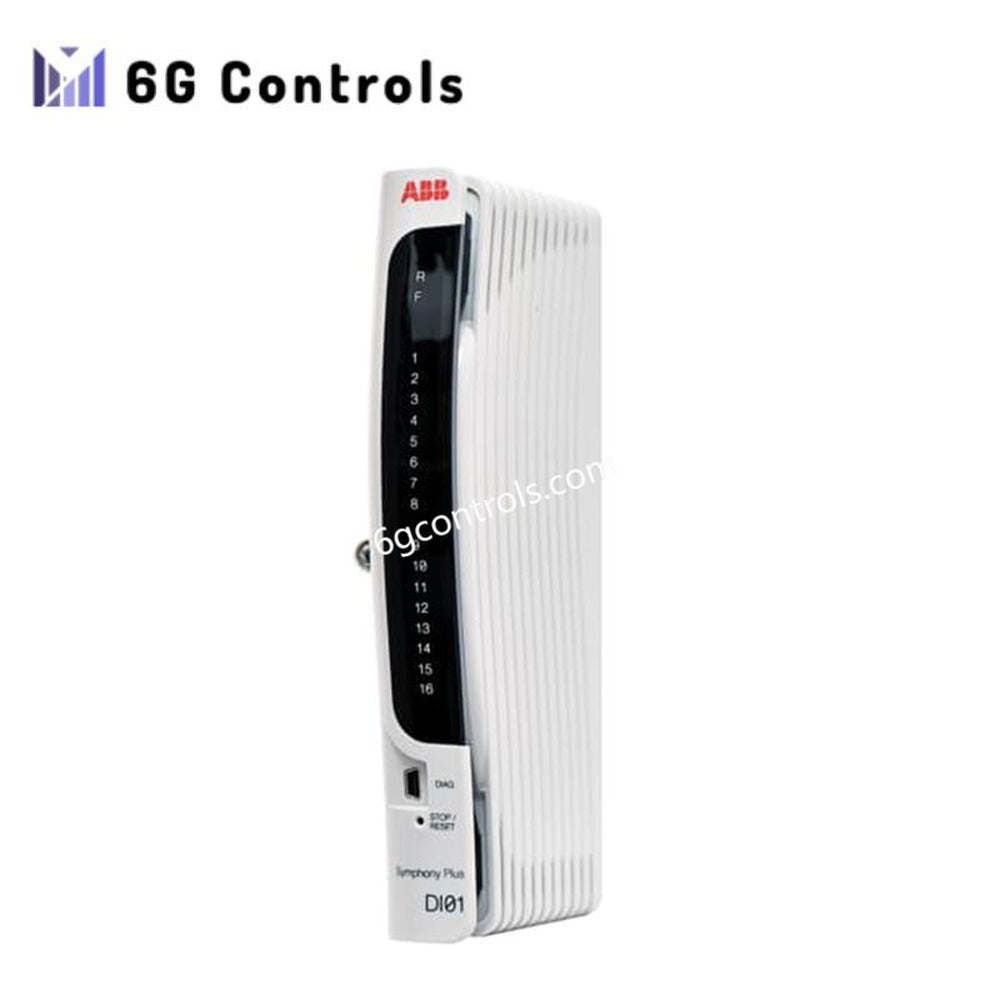

ABB DI01 Low Voltage Digital Input Module Brand New

18 in stock

Manufacturer: ABB
Product No.: DI01
Product Type: Low Voltage Digital Input Module
Condition: Brand New
Payment: T/T, Western Union
Dimensions: 27 mm × 106 mm × 190 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

DI01 Digital Input Module Overview

Article Number: DI01 Type: Digital Input Channels: 16 Signal: 24/48 VDC with SOE support Form Factor: Standard (190 mm) Mounting: Horizontal row or vertical column Redundancy: No MTBF: 208,017 hours MTTR: 1 hour

Electrical & Power

Module power: 24 VDC ±10%, 67 mA typical, 85 mA max
Field IO power: 3.3–7.2 mA @ 24 VDC
Input ON voltage: ≥16.2 V (24/48 VDC)
Input OFF voltage: ≤15.2 V
Max cable length: 600 m
Isolation: 1500 V galvanic (field to logic and channel-to-channel)

Diagnostics

LEDs: Run (R), Fault (F), and channel indicators (1–16)
Local: Mini USB port on front
Remote: HN800 diagnostics via SPE

Environment & Certification

Operating temp: -40 to +70 °C
Storage temp: -40 to +85 °C
Humidity: 20–95% non-condensing @ 40 °C
Vibration & shock: Tested to IEC/MIL standards
Protection: IP20
Altitude: Up to 3,048 m operational, 12,192 m storage
EMC & Immunity: Meets IEC/EN standards, severity level 3–4
CSA certified for non-hazardous and Class I Div 2 locations
Complies with CE, RoHS, WEEE directives

Compatibility

Use with MTU types: HBS01-EPD, FPH, FPN, VBS01 variants
Module keying: Slot #1 = 09, Slot #2 = 15

Dimensions & Weight

Width: 27 mm
Depth: 106 mm
Height: 190 mm
Weight: 228 g
