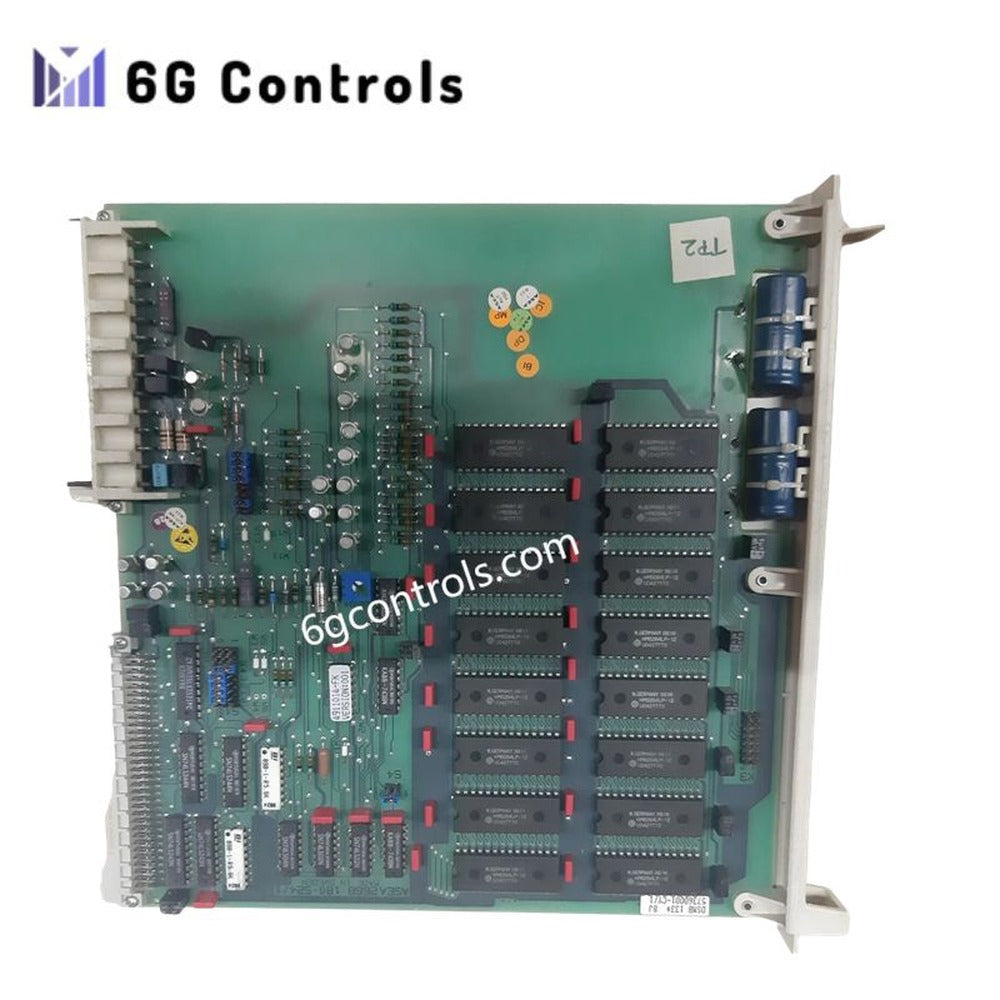

ABB DSMB133 DSMB 133 57360001-CY Memory Board Brand New

Product Description

The ABB DSMB133 is a robust memory module engineered for Advant Controller and MasterBus 300 systems. It stores configuration data, control programs, and essential process information with high reliability. Engineers value this module because it safeguards critical data even during unexpected power interruptions. Moreover, its battery-backed architecture keeps long-term applications stable in demanding environments such as manufacturing, utilities, and HVAC control.

This module offers dependable non-volatile memory supported by an onboard lithium battery. Therefore, the DSMB133 helps maintain system continuity while reducing the risk of data corruption. Its compact design allows flexible installation on a DIN rail or within a controller rack, enabling easy integration with existing automation architectures.

Key Features

• Non-volatile memory protects essential data during power loss.
• Battery backup ensures continuous data retention in mission-critical systems.
• Modbus RTU interface simplifies integration with industrial automation networks.
• DIN-rail or rack mounting provides installation flexibility.
• Wide operating temperature range ensures reliable operation in harsh sites.
• Low power consumption supports energy-efficient system design.

Technical Specifications

Model: DSMB133 Part Number: 57360001-CY Type: Memory Board

Memory Capacity

• 128 kB EEPROM (non-volatile option)

Backup Method

• 3.6 V, 240 mAh lithium battery

Interface

• Modbus RTU

Mounting

• DIN-rail or controller-rack installation

Operating Conditions

• Temperature:
  • EEPROM version: −20°C to +60°C
  • RAM version: 0°C to +55°C
• Storage temperature: −25°C to +70°C

Power

• 100 mA

Dimensions

• 235 × 255 × 10 mm

Weight

• 0.29 kg

Typical Applications

The DSMB133 supports multiple industrial sectors requiring secure storage and dependable data retention. For instance, power plants and petrochemical sites use it to protect control logic in continuous-operation systems. Machine builders install this module to ensure stable operation of complex sequences and motion functions. In addition, building automation teams rely on it to maintain HVAC programs, alarm settings, and schedule data during outages.

Support & Maintenance

Operators can easily monitor battery health to avoid unplanned downtime. Moreover, replacement procedures are simple, allowing fast maintenance without disrupting field operations. Its long service life and strong environmental tolerance make the DSMB133 a dependable asset for long-cycle automation systems.

FAQ

Q1: What is the main purpose of the ABB DSMB133? It securely stores control programs and configuration data for Advant and MasterBus 300 systems.

Q2: Does the module retain data during power loss? Yes. It uses non-volatile memory and a lithium battery to maintain data integrity.

Q3: Which systems support the DSMB133? It works with ABB Advant Controller platforms and MasterBus 300-based installations.

Q4: How long does the internal battery last? Battery life depends on usage conditions, but it typically supports long-term retention in industrial environments.

Q5: Can the module be installed on a DIN rail? Yes. It supports DIN-rail and rack-mounted installation options.
