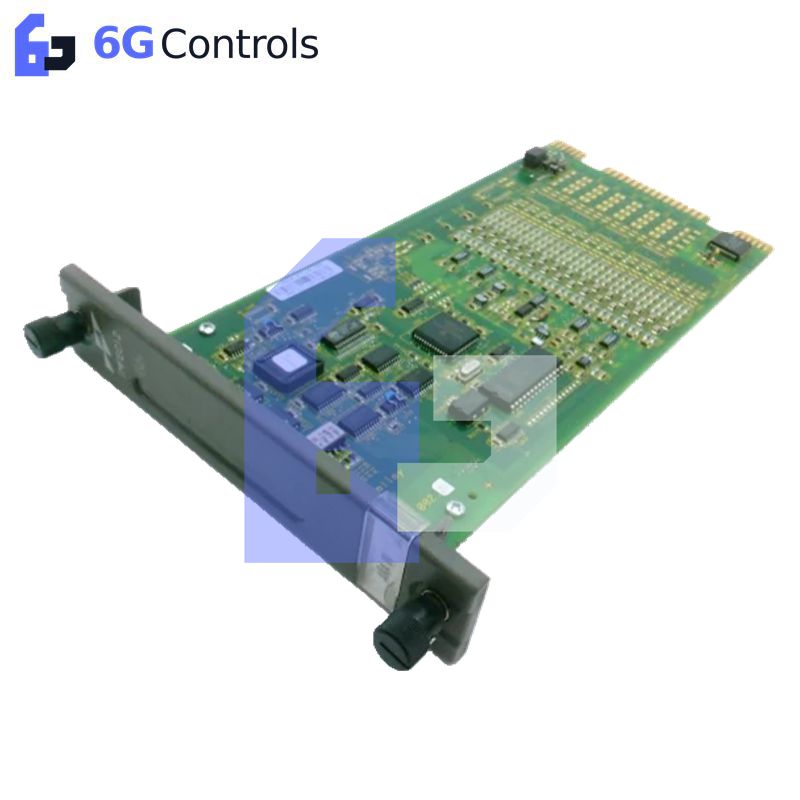

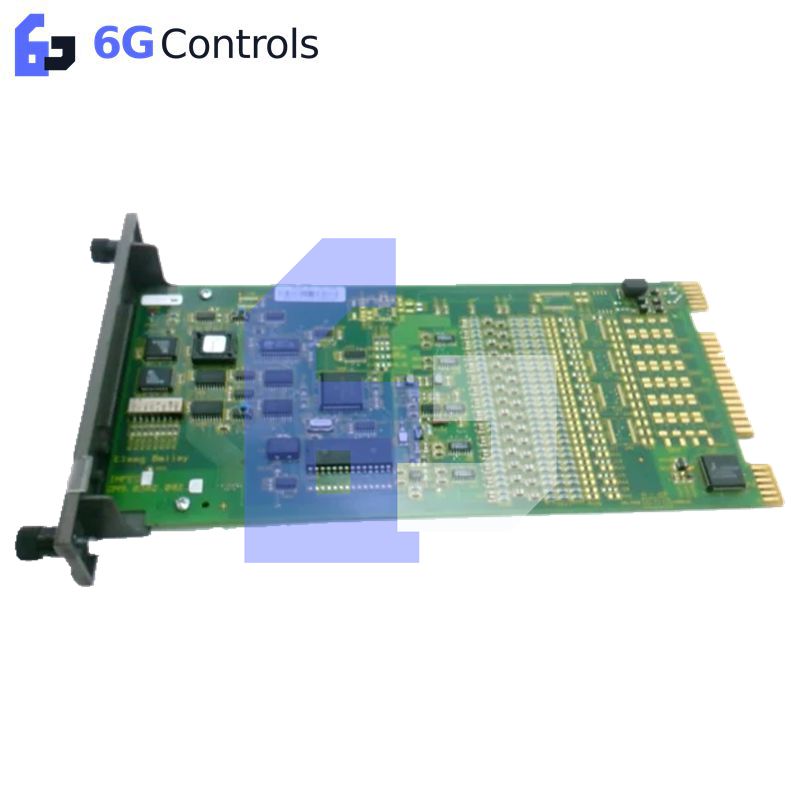

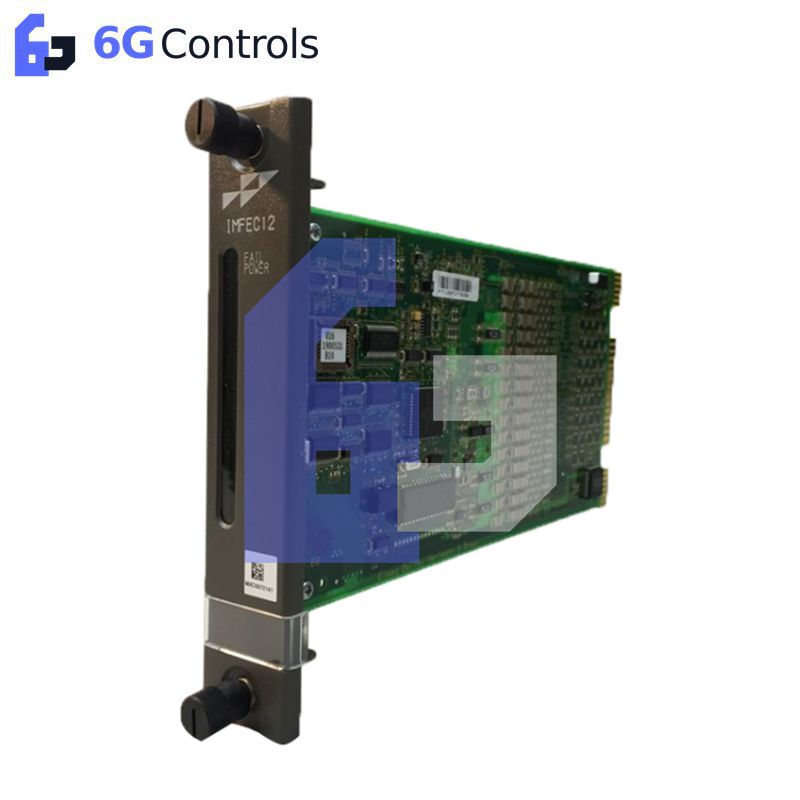

ABB IMFEC12 High-Level Analog Input Module

Configured for high-level analog signal acquisition in ABB Bailey INFI 90, Network 90 (Net 90), and Symphony Enterprise DCS platforms, the ABB IMFEC12 (IMFEC12 High-Level Analog Input Module) provides direct conversion of 15 differential field inputs into digital values for processing by an MFP or MFC through the I/O Expander Bus. It accepts 4-20 mA DC and 1-5 VDC signals from conventional transmitters.

Hardware Specifications

Analog Signal Acquisition and INFI 90 Bus Interface

The IMFEC12 provides 15 differential analog input channels for conventional transmitter signals. Current inputs are specified for 4-20 mA DC with a 250 ohm input impedance, while voltage inputs support 1-5 VDC with an input impedance greater than 1 Mohm. The on-board A/D conversion circuitry converts field signals into digital data for transfer through the I/O Expander Bus.

Channel isolation and input filtering are specified for electrical noise and ground-loop control. The module communicates with an MFP or MFC rather than operating as an independent process controller. The module is installed in a standard MMU slot and receives system power through the module mounting assembly.

Frequently Asked Questions

Q: How many analog signals can the IMFEC12 process?

A: The module provides 15 differential analog input channels.

Q: Which field signal ranges are supported?

A: The supplied specifications identify 4-20 mA DC current signals and 1-5 VDC voltage signals.

Q: What power rails are required by the module?

A: The supplied data specifies +5 VDC at 1.2 A, +15 VDC at 0.05 A, and -15 VDC at 0.05 A from the MMU power chassis.

Field Installation Guidelines

Install the IMFEC12 in the designated MMU slot and verify that the module edge connector is fully seated before applying system power. Field transmitters should be wired through the specified termination hardware using the appropriate conductors for the selected 4-20 mA or 1-5 VDC signal type.

Keep analog signal wiring separated from high-voltage power conductors and high-current switching circuits. Where shielded instrumentation cable is used, terminate the shield according to the system grounding design to limit ground-loop and noise coupling. Verify transmitter polarity, channel assignment, and termination wiring before energizing the input circuits.

The module interfaces with the MFP or MFC through the I/O Expander Bus. Confirm the MMU slot assignment and system configuration before commissioning. Do not apply signal levels outside the specified input ranges without confirming compatibility with the complete signal conditioning circuit.
