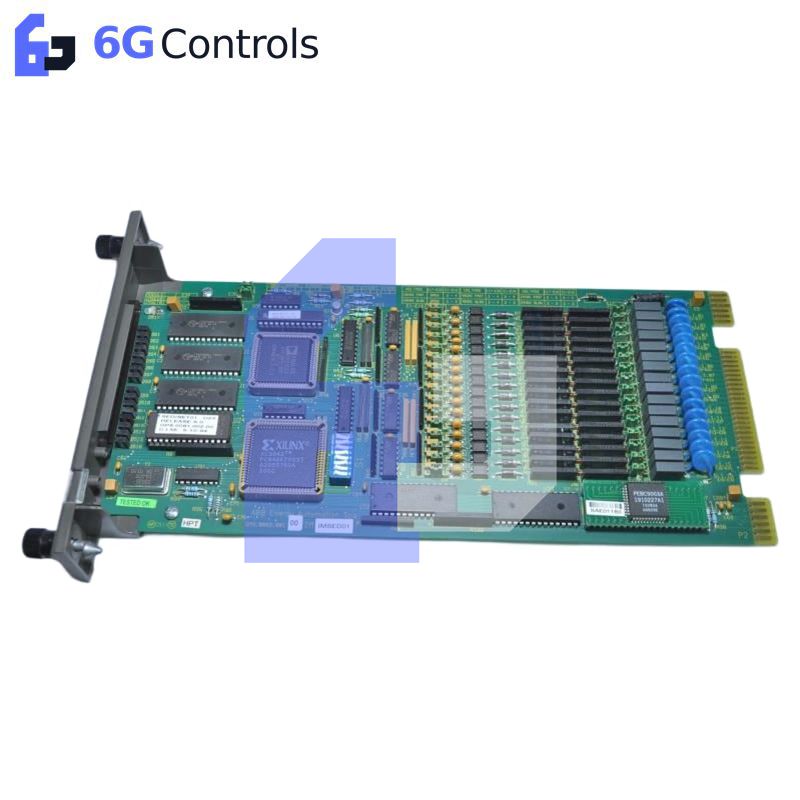

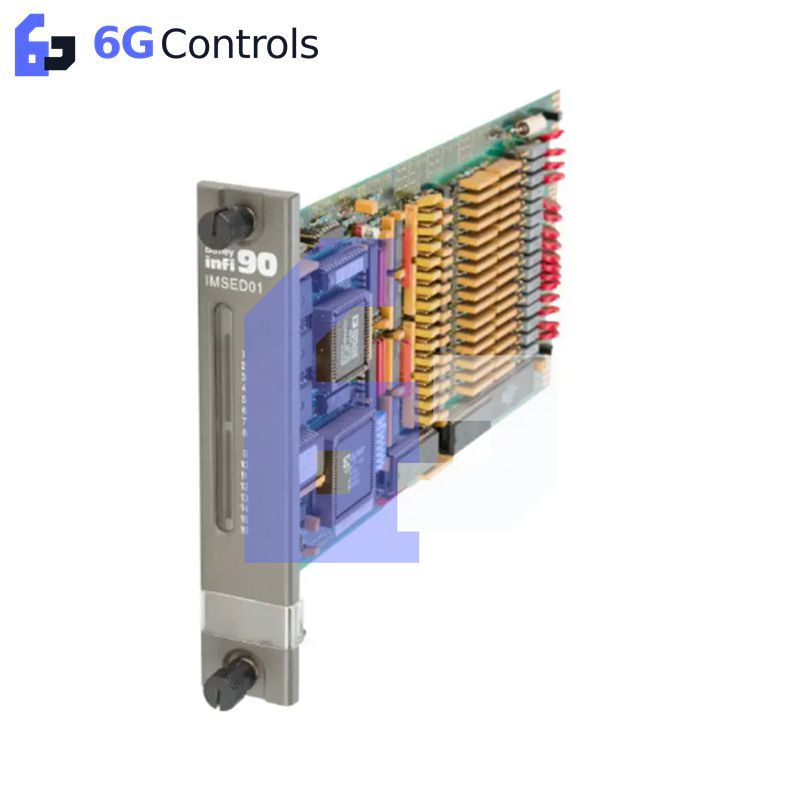

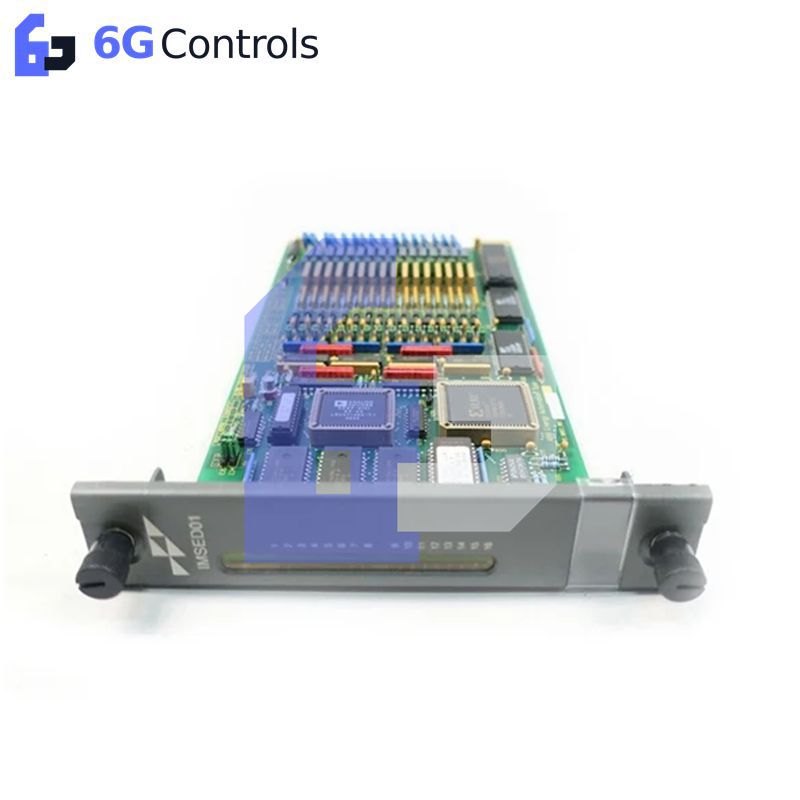

ABB IMSED01 Sequence of Events Digital Input Module

Low stock: 10 left

Manufacturer: ABB
Product No.: IMSED01 3BSE018161R1
Country of origin: Sweden
Product Type: Sequence of Events Digital Input Module
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.62 lb
Dimensions: 17.8 cm x 5.1 cm x 2.5 cm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

The ABB IMSED01, also cataloged as the IMSED01 Sequence of Events Digital Input Module, operates as a dedicated hardware component for 16-point digital signal acquisition within the ABB INFI 90 control system. The module receives DC and AC discrete input states and transfers event information through the system communication structure.

Hardware Specifications

Parameter	Specification
Model	IMSED01
Brand	ABB
Weight	0.62 lbs
Dimensions	17.8 cm x 5.1 cm x 2.5 cm
Operating Temp	-40 deg C to +70 deg C
Power Consumption	5 VDC power supply
Product Type	Sequence of Events Digital Input Module
Input Channels	16 digital input points
Input Voltage Range	24/48/125 VDC and 125 VAC digital inputs
Communication Interface	RS485
Response Time	< 1 ms

INFI 90 Sequence Event Acquisition

The IMSED01 provides 16 digital input channels for sequence-of-events monitoring in ABB INFI 90 systems. Each input channel processes discrete field signals and records state transitions for event monitoring functions. The module accepts multiple voltage levels including 24 VDC, 48 VDC, 125 VDC, and 125 VAC inputs according to the installed field configuration.

The module architecture supports high-speed input detection with a specified response time below 1 ms. Digital event information is transferred through the INFI 90 control architecture using the module communication interface.

Frequently Asked Questions

Q: What type of signals can the IMSED01 accept?
A: The IMSED01 accepts digital input signals with field voltage ranges of 24/48/125 VDC and 125 VAC.

Q: How many discrete input points are available on the IMSED01?
A: The module provides 16 digital input points for sequence-of-events monitoring.

Q: What power supply is required for the IMSED01?
A: The module operates with a 5 VDC power supply from the INFI 90 system hardware configuration.

Field Installation Guidelines

Install the IMSED01 in the designated ABB INFI 90 module mounting location with correct backplane alignment. Verify that field wiring matches the configured digital input voltage range before energizing the module.

Use shielded signal wiring where required by the installation environment. Keep digital input cables separated from high-voltage power conductors and high-current switching circuits to reduce electrical interference.

Confirm terminal connections, module seating, and backplane contact conditions during installation and maintenance procedures. Follow ABB INFI 90 system grounding and cabinet wiring practices for signal integrity.

Payment: T/T, Western Union.

Shipping port: Xiamen.

Lead time: Typically 1–3 working days after payment confirmation (subject to stock).

Worldwide delivery: We ship industrial automation parts to customers around the world. Freight is quoted with your RFQ.
