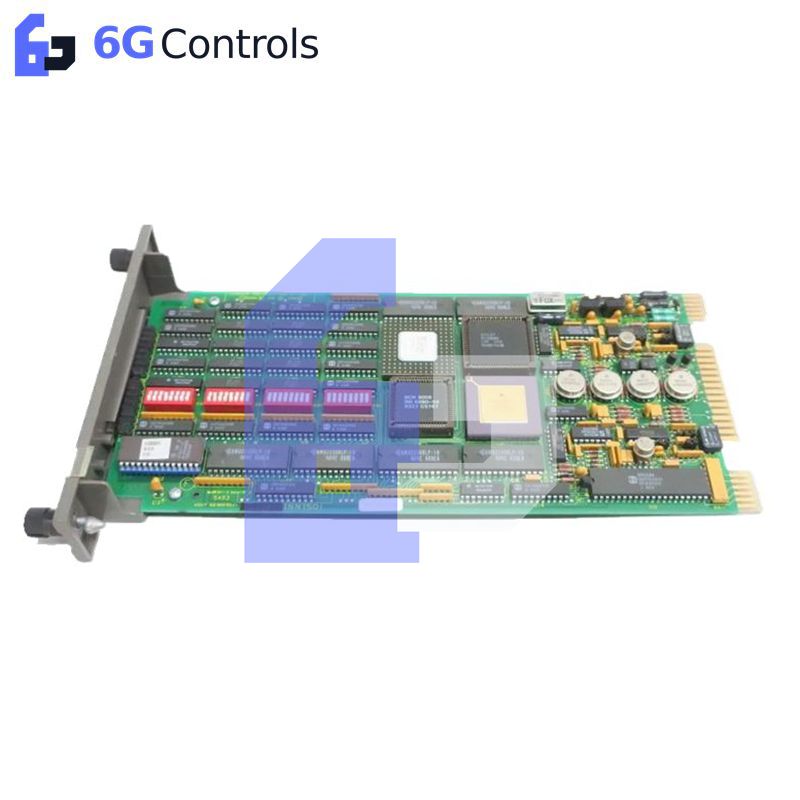

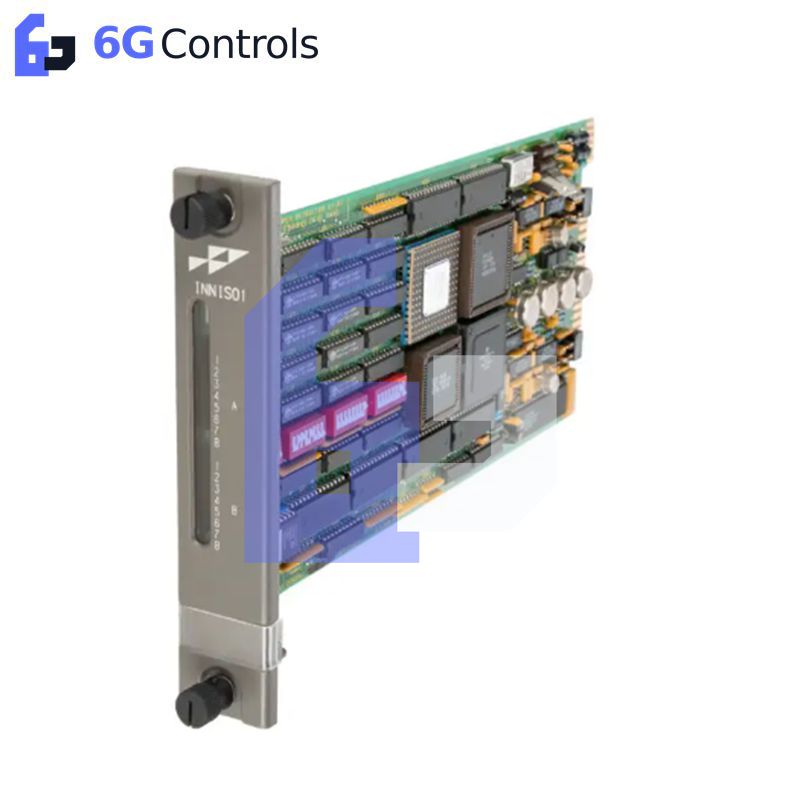

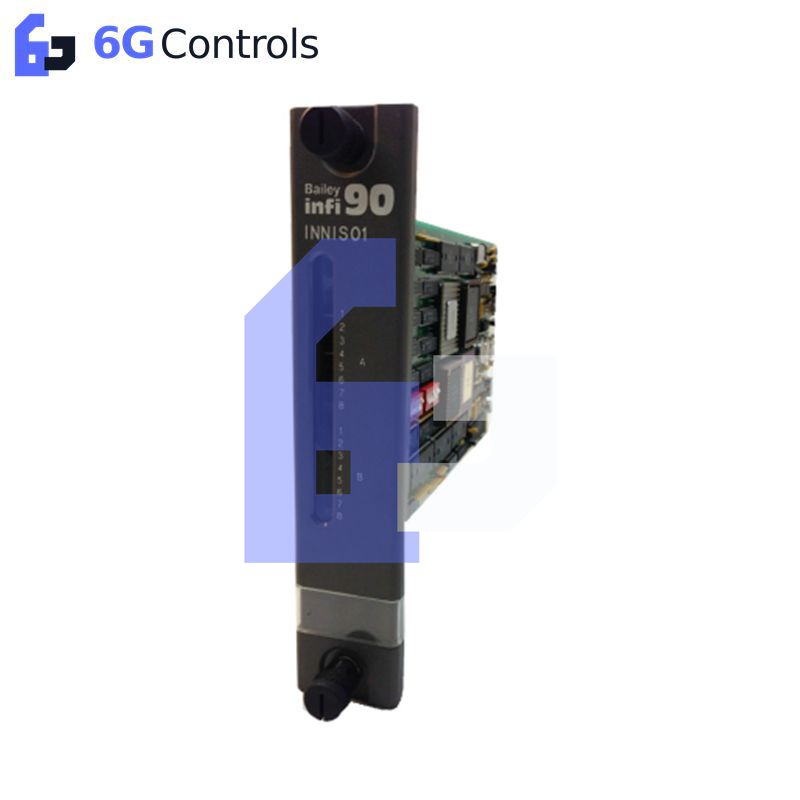

ABB INNIS01 Symphony Infi 90 Network Interface Slave Module

19 in stock

Manufacturer: ABB
Product No.: INNIS01
Country of origin: Sweden
Product Type: Symphony Infi 90 Network Interface Slave Module
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.93 kg
Dimensions: 20.3 cm x 5.1 cm x 2.5 cm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

The ABB INNIS01, also cataloged as the INNIS01 Network Interface Slave Module, provides network interface functions within the ABB Symphony Infi 90 system. It communicates at 2 Mbaud or 10 Mbaud and occupies one slot in a standard INFI 90 OPEN module mounting unit. The module operates from +5 VDC and +/-15 VDC supply rails.

Hardware Specifications

Parameter	Specification
Model	INNIS01
Brand	ABB Bailey
Series	Symphony Infi 90 / Net 90
Product Type	Network Interface Slave Module
Memory	208 kbytes RAM, 64 kbytes ROM
Communication Rate	2 Mbaud or 10 Mbaud
System Capacity	62,500 nodes per system
Loop Capacity	250 nodes per loop
Interface Compatibility	PCU, MCS, OIS, or ICI interfaces
Mounting	One slot in standard INFI 90 OPEN module mounting unit
Power Supply	+5 VDC, +15 VDC, -15 VDC
+5 VDC Current	900 mA
+5 VDC Nominal Power	4.50 W
+15 VDC Current	5 mA
+15 VDC Nominal Power	0.08 W
-15 VDC Current	200 mA
-15 VDC Nominal Power	3.00 W
Total Nominal Power	7.58 W
Stated Power Rating	10 VA
Dimensions	20.3 cm x 5.1 cm x 2.5 cm
Weight	0.93 kg
Power Consumption	10 VA stated; calculated nominal rail consumption 7.58 W

INFI 90 Network Communication

The INNIS01 handles network interface communication for Symphony Infi 90 systems at selectable communication rates of 2 Mbaud or 10 Mbaud. The supplied system specification permits up to 62,500 nodes in the system and 250 nodes on a loop, with PCU, MCS, OIS, and ICI interfaces supported in the stated configuration.

The module contains 208 kbytes of RAM and 64 kbytes of ROM for its network interface processing functions. Its physical installation is based on a single slot in the standard INFI 90 OPEN module mounting unit.

Frequently Asked Questions

Q: What communication rates does the INNIS01 support?
A: The supplied specifications list 2 Mbaud and 10 Mbaud communication rates.

Q: What power rails are required by the INNIS01?
A: The module requires +5 VDC, +15 VDC, and -15 VDC. The specified currents are 900 mA, 5 mA, and 200 mA respectively.

Q: How is the INNIS01 mechanically installed?
A: The module occupies one slot in a standard INFI 90 OPEN module mounting unit.

Field Installation Guidelines

Install the INNIS01 in the designated slot of the INFI 90 OPEN module mounting unit and verify that the module is fully seated in the backplane connector. Confirm the presence and polarity of the required +5 VDC, +15 VDC, and -15 VDC supply rails before energizing the assembly.

Route network wiring separately from high-current power conductors and switching circuits where practical. Maintain proper cable shielding and grounding according to the applicable INFI 90 installation documentation. Inspect connectors, backplane contacts, and module seating before commissioning. Because the supplied data identifies the INNIS01 as discontinued, verify hardware and firmware compatibility with the existing INFI 90 configuration before replacement.

Payment: T/T, Western Union.

Shipping port: Xiamen.

Lead time: Typically 1–3 working days after payment confirmation (subject to stock).

Worldwide delivery: We ship industrial automation parts to customers around the world. Freight is quoted with your RFQ.
