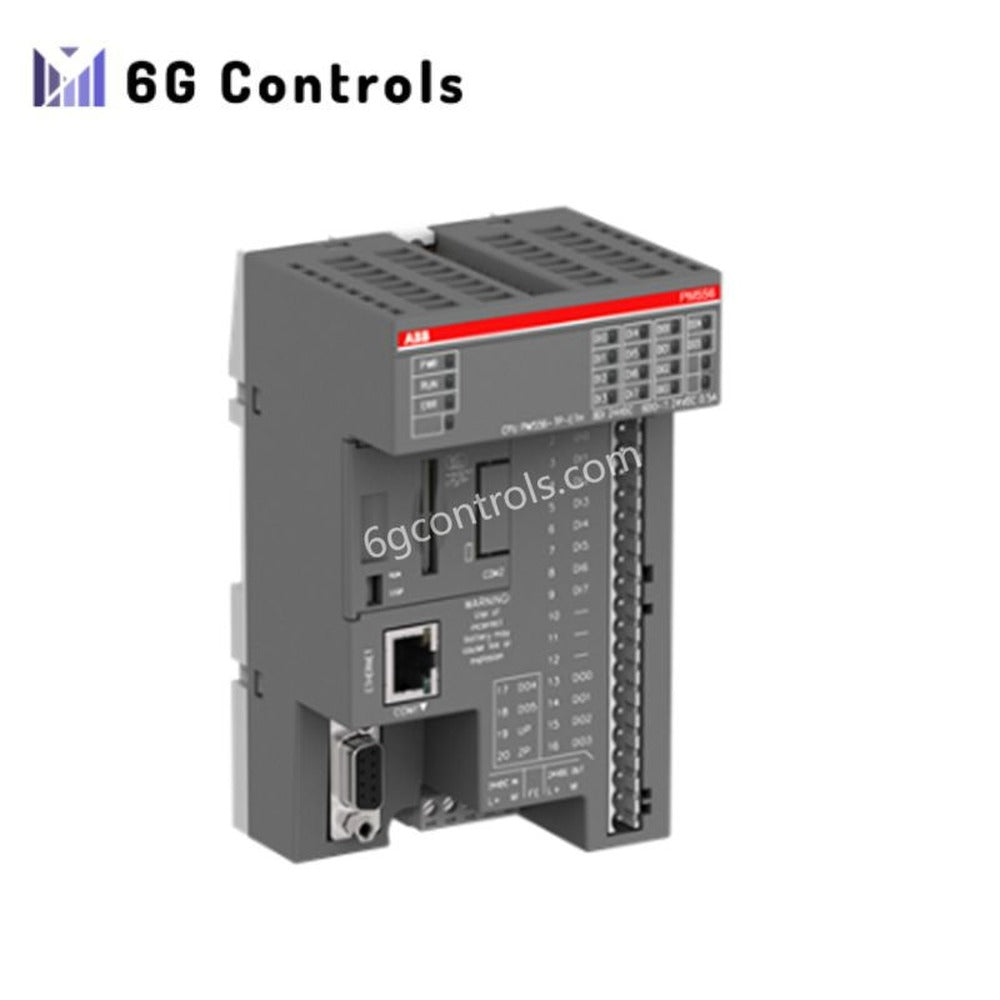

ABB PM556-TP-ETH AC500 Programmable Logic Controller

17 in stock

Manufacturer: ABB
Product No.: PM556-TP-ETH
Product Type: Programmable Logic Controller
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.28 kg
Dimensions: 74 mmx 135 mm x 82 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

PM556-TP-ETH: AC500 Programmable Logic Controller

General Information

Product ID: 1SAP121200R0071
ABB Type Designation: PM556-TP-ETH
EAN: 4016779927567
Catalog Description: PM556-TP-ETH: AC500 Programmable Logic Controller
Long Description: PM556-TP-ETH: AC500, Programmable Logic Controller, 512kB, 8DI/6DO-T, Ethernet, 24VDC, 1x RS485, 2x Option Slot
Ordering CN8: 85371091
Invoice Description: PM556-TP-ETH: AC500 Programmable Logic Controller
Made to Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Selling Unit of Measure: piece

Dimensions

Product Net Weight: 0.28 kg
Product Net Depth / Length: 74 mm
Product Net Height: 135 mm
Product Net Width: 82 mm
Gross Weight: 0.446 kg

Technical Specifications

Number of Hardware Interfaces:
- Industrial Ethernet: 1
- RS-485: 1
Memory Size: 642 kB
Memory Type (User Data): RAM
Controller Processing Time: 0.00008 ms
Number of Digital Inputs: 8
Number of Digital Outputs: 6
Input Voltage Type: DC
Rated Voltage (Ur): 24 V DC
Supply Voltage: 20.4 – 28.8 V DC

External Classifications and Standards

eClass: 27-24-22-07
ETIM 8: EC000236 - PLC CPU-module
ETIM 9: EC000236 - PLC CPU-module
ETIM 10: EC000236 - PLC CPU-module
UNSPSC: 32151705

Environmental Information

SCIP: 2a63d61d-7ffc-43ef-9637-a33f2e73e31c (Germany)
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C/B2B: Business To Business
