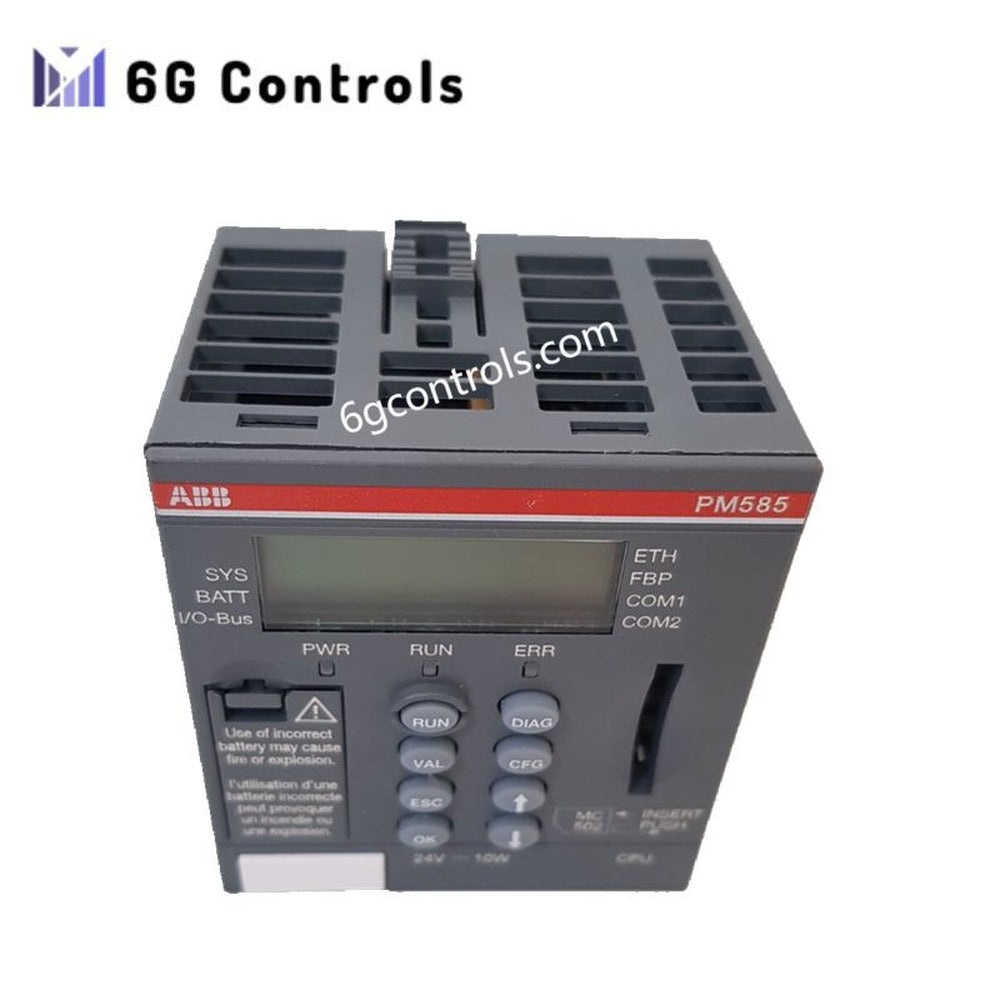

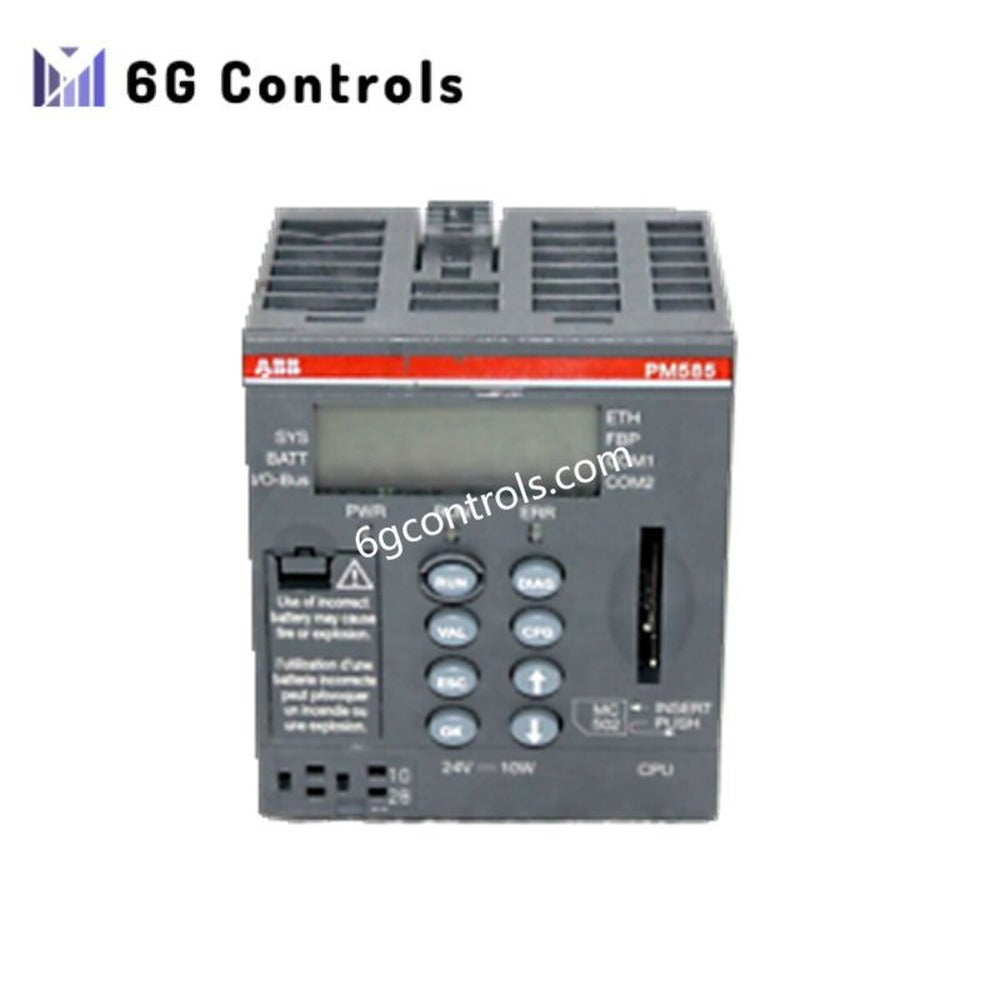

ABB PM585-ETH 1SAP140500R0271 Processor Module

13 in stock

Manufacturer: ABB
Product No.: PM585-ETH-1SAP140500R0271
Product Type: Processor Module
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.162 kg
Dimensions: 62 mm × 76 mm × 67.5 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

General Information

Extended Product Type: PM585-ETH
Product ID: 1SAP140500R0271
ABB Type Designation: PM585-ETH
EAN: 4013614506413
Catalog Description: Processor module. Memory 1MB. Interfaces: Ethernet, 2x RS232/485, FBP. Display
Long Description: PM585-ETH: AC500 Processor module with 1MB memory. Interfaces include Ethernet, 2x RS232/485, FBP, and a display.

Ordering Information

CN8: 85389091
Invoice Description: Processor module. Memory 1MB. Interfaces: Ethernet, 2x RS232/485, FBP. Display (PM585-ETH)
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Selling Unit of Measure: piece

Dimensions

Product Net Weight: 0.137 kg
Product Net Depth / Length: 62 mm
Product Net Height: 76 mm
Product Net Width: 67.5 mm
Gross Weight: 0.162 kg
Package Level 1 Dimensions: 84 × 72 × 71 mm
Package Level 1 Units: 1 carton

Certificates and Declarations

CE Declaration of Conformity: EU & UK – AC500 V2 CPUs, AC500 CM, S500 CI, S500 IO, CMS modules
REACH Date: 2024-12-06
REACH Declaration: REACH declaration for ABB PLC products
REACH Information: True – contains substances > 0.1 mass %
SCIP: 6efd0b88-1104-43ff-a06a-953e7024227d (Germany)
RoHS Declaration: EU & UK – AC500 V2 CPUs, AC500 CM, S500 CI, S500 IO, CMS modules

Technical Specifications

Function: Memory 1MB. Interfaces: Ethernet, 2x RS232/485, FBP. Display
Number of Hardware Interfaces:
- Industrial Ethernet: 1
- Other: 2
- Parallel: 0
- RS-232/RS-422/RS-485: 0
- Serial TTY: 0
- USB: 0
- Wireless: 0
Memory Size: 3584 kB
Memory Type (User Data): RAM
Controller Processing Time: 0.000004 ms
Number of Digital Configurable I/Os: 0
Degree of Protection: IP20
Rated Voltage (Ur): 24 V DC
Supply Voltage: 20.4 … 28.8 V DC

Additional Information

Product Main Type: PM585
Product Name: Distributed Automation PLCs

External Classifications and Standards

eClass: 27-24-22-07
ETIM 8/9/10: EC000236 – PLC CPU-module
UNSPSC: 32151705

Environmental

WEEE B2C / B2B: Business To Business
WEEE Category: 5 – Small Equipment (No External Dimension More Than 50 cm)
