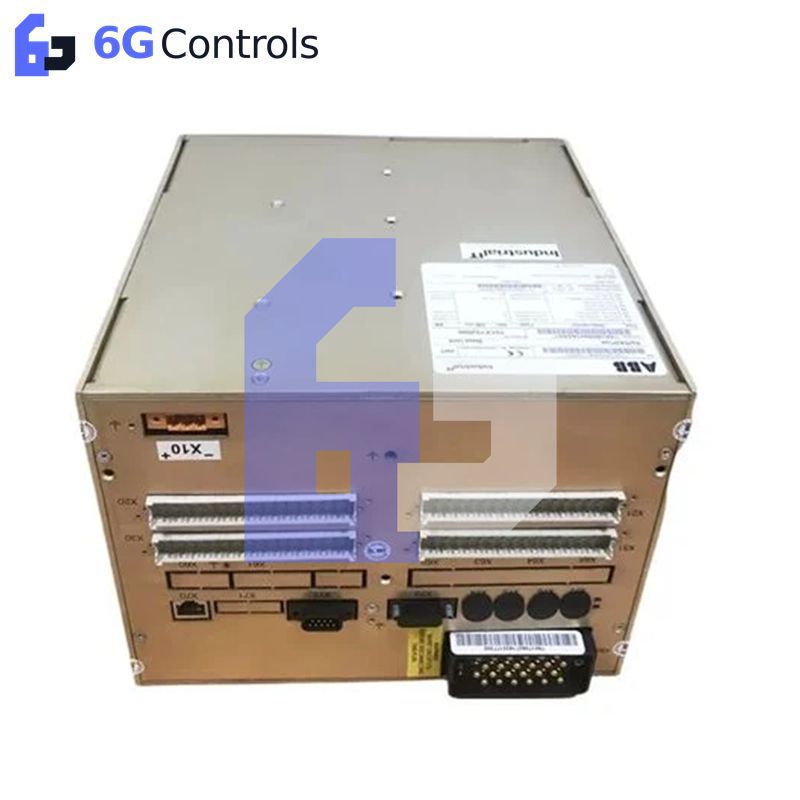

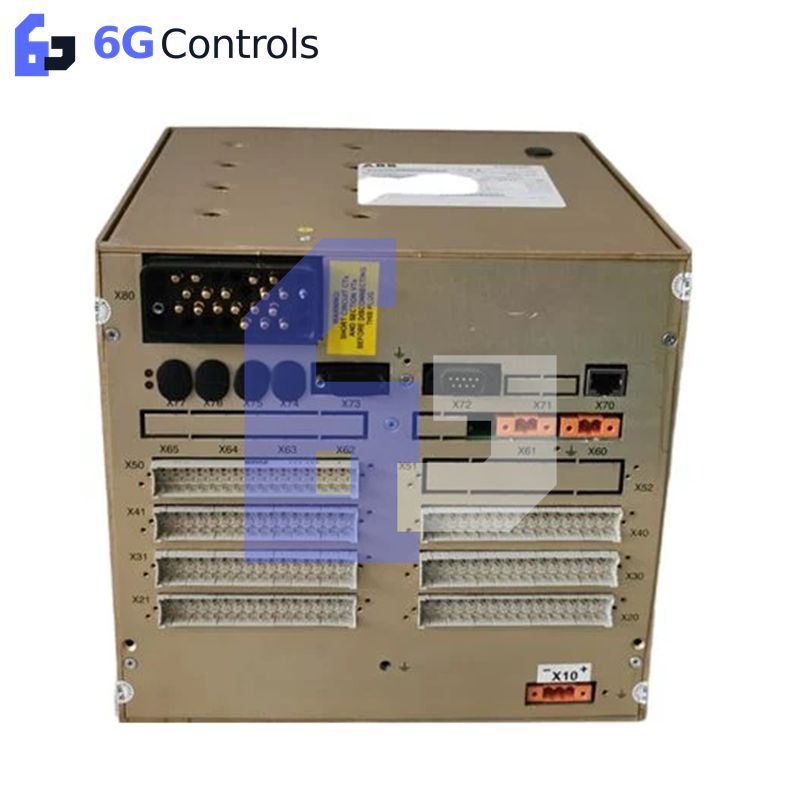

ABB REF542PLUS 1VCF752000 Feeder Protection Terminal

Configured for feeder protection, measurement, and control in medium-voltage switchgear, the ABB REF542plus (1VCF752000) (REF542plus Feeder Protection Terminal) provides direct processing of CT/VT, Rogowski coil, and voltage-sensor signals with configurable binary I/O and substation communication interfaces.

Hardware Specifications

ABB REF542plus Protection and Communication Functions

The REF542plus combines protection, measurement, control, monitoring, and communication functions within one feeder terminal. Directional and non-directional overcurrent and earth fault functions can process feeder current signals, while voltage and frequency functions provide additional electrical protection.

The input architecture accepts conventional CT/VT signals as well as Rogowski coils and voltage sensors. This allows the measurement interface to be matched to the instrument transformer arrangement installed in the switchgear cubicle.

For substation automation, the terminal provides IEC 61850 together with Modbus RTU, PROFIBUS DP, SPA-bus, and IEC 60870-5-103 interfaces. Communication selection and wiring should follow the configured station architecture and the applicable interface specification.

The unit also provides transient fault recording, event logging, disturbance monitoring, trip circuit supervision, and accumulated I2t breaker wear calculation. These functions are associated with electrical event analysis and breaker condition monitoring rather than with the primary protection trip element.

Frequently Asked Questions

Q: What signal types can be connected to the REF542plus?

A: The supplied data identifies conventional CT/VT inputs, Rogowski coils, and voltage sensors as supported input signal types. The actual connection method must correspond to the configured hardware and switchgear instrumentation.

Q: Can the REF542plus communicate with a substation automation system?

A: Yes. The supplied specifications list IEC 61850, Modbus RTU, PROFIBUS DP, SPA-bus, and IEC 60870-5-103. The selected protocol depends on the configured communication interface and system architecture.

Q: What enclosure protection is specified for the terminal?

A: The front panel is specified as IP54, while the rear terminal area is specified as IP20. Installation should therefore provide suitable protection for the rear connection area inside the switchgear enclosure.

Field Installation Guidelines

• Install the terminal using the specified flush or panel mounting arrangement in the MV switchgear cubicle.
• Verify the terminal designation and configured I/O arrangement before connecting CT, VT, Rogowski coil, or voltage-sensor circuits.
• Route current and voltage measurement wiring separately from high-energy switching conductors where practical to reduce unwanted electromagnetic coupling.
• Follow the applicable CT secondary safety and wiring procedures. Never leave an energized CT secondary circuit open.
• Keep communication wiring separated from high-current power conductors and terminate cable shields according to the selected communication interface and site grounding scheme.
• Verify binary input polarity, relay output wiring, and trip circuit supervision connections against the approved protection schematic before energization.
• Confirm the selected communication protocol and station addressing before connecting the terminal to the SAS, SCADA, or DCS network.
• Check the front-panel IP54 installation condition and ensure the rear IP20 terminal area remains inside the protected switchgear enclosure.
• Perform functional checks for protection inputs, binary I/O, communication, event recording, and breaker supervision before placing the feeder into service.
