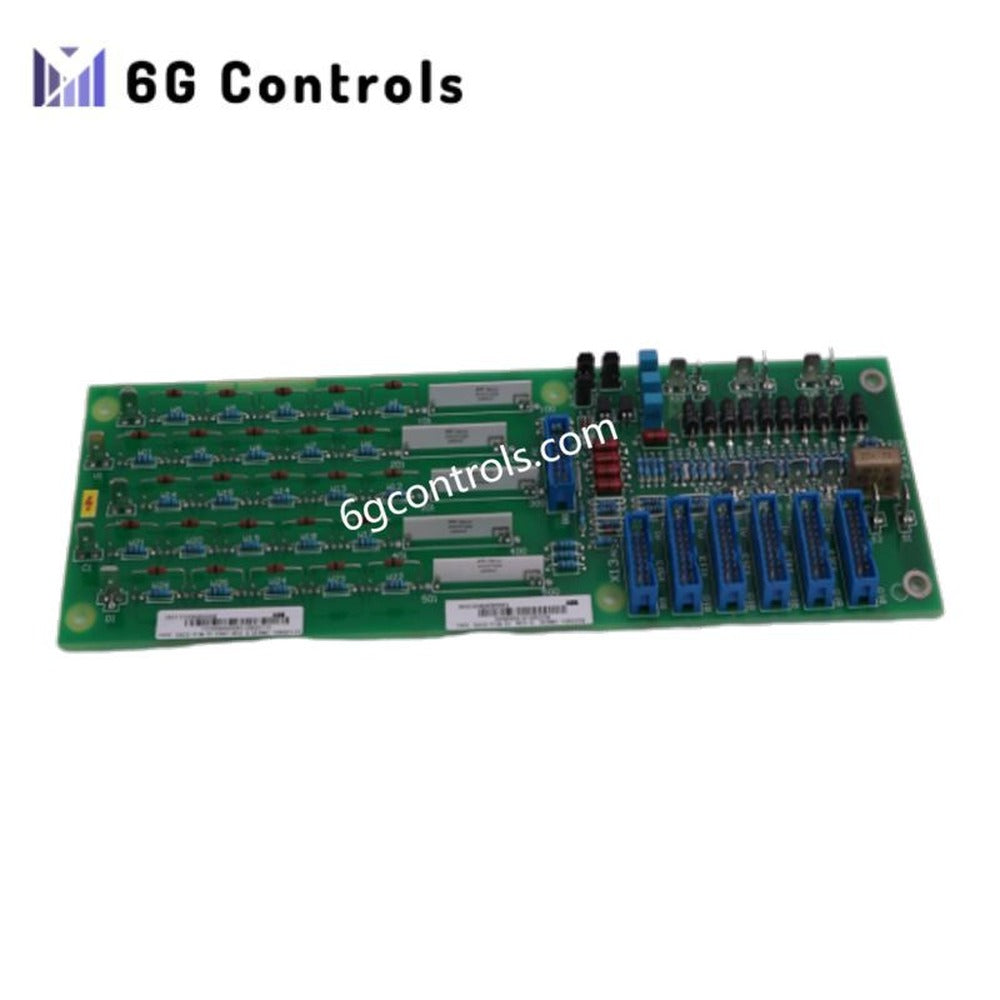

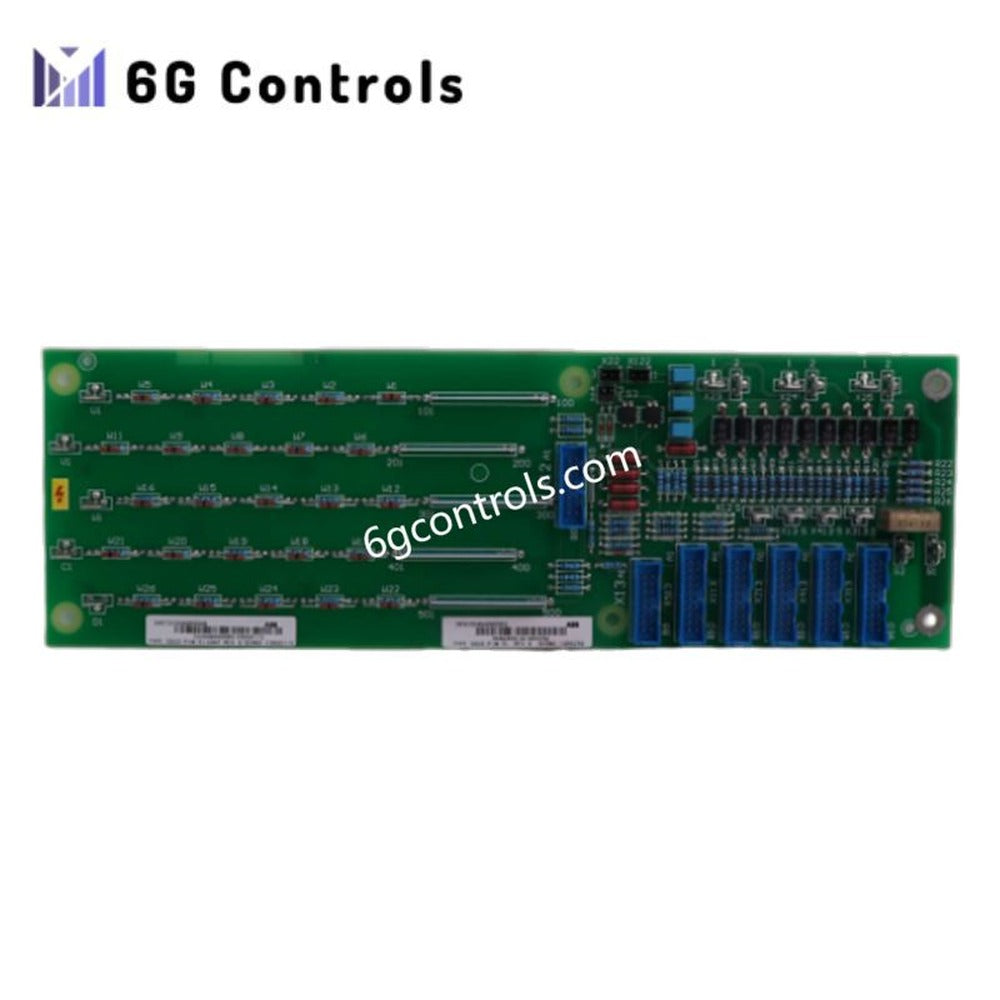

ABB SDCS-PIN-51 3BSE004940R1 Measurement Card Brand New

Overview

The ABB SDCS-PIN-51 3BSE004940R1 is a precision-engineered measurement card designed for advanced industrial drive systems. It provides accurate signal acquisition and real-time data processing for critical control and monitoring tasks. This module integrates seamlessly with ABB SDCS drives, as well as ABB 800xA, Advant OCS, PLC, and SCADA systems. With a robust design and conformal coating, it ensures long-term performance even in harsh industrial environments.

Moreover, the SDCS-PIN-51 supports multiple communication interfaces, allowing flexible integration with both ABB and third-party platforms. Its plug-and-play configuration simplifies commissioning, reducing setup time and enhancing operational reliability.

Key Features

• High-resolution measurement with 16-bit A/D conversion ensures precise signal processing.
• Conformal coating offers strong protection against moisture, dust, and corrosion.
• Real-time data acquisition improves control accuracy and system responsiveness.
• Flexible connectivity via RS-485, Profibus, and Modbus communication protocols.
• Diagnostic indicators and software alerts simplify system monitoring and maintenance.
• DIN rail or backplane mounting enables easy installation and space efficiency.

Technical Specifications

Typical Applications

The ABB SDCS-PIN-51 is ideal for industrial automation and drive control systems where precision and reliability are critical. It measures parameters such as speed, torque, current, and temperature, ensuring stable performance in heavy-duty environments. Common use cases include:

• Variable speed drive systems for motors and pumps
• Process automation in chemical and steel plants
• Power distribution and motion control applications
• Integration with PLCs, SCADA, and DCS platforms

Support and Reliability

ABB ensures long-term support through global service centers and technical documentation. The SDCS-PIN-51 is engineered for continuous operation in harsh conditions, minimizing downtime and maintenance costs. With ABB’s Control Builder tools, engineers can easily configure, calibrate, and maintain the module over its operational lifespan.

FAQ

Q1: Can the SDCS-PIN-51 be used with non-ABB control systems? Yes. The card supports open protocols such as RS-485, Modbus, and Profibus for third-party integration.

Q2: What is the main advantage of the conformal coating? The coating protects the electronics from humidity, dust, and chemical exposure, extending product life.

Q3: How does the module ensure signal accuracy? It uses a 16-bit A/D converter with ±0.1% precision to guarantee stable and reliable measurement.

Q4: Is this card suitable for high-vibration environments? Yes. The rugged construction and secure mounting options make it ideal for demanding industrial setups.

Q5: How can users perform diagnostics on this card? LED indicators and software alerts provide real-time diagnostic feedback for quick issue detection.
