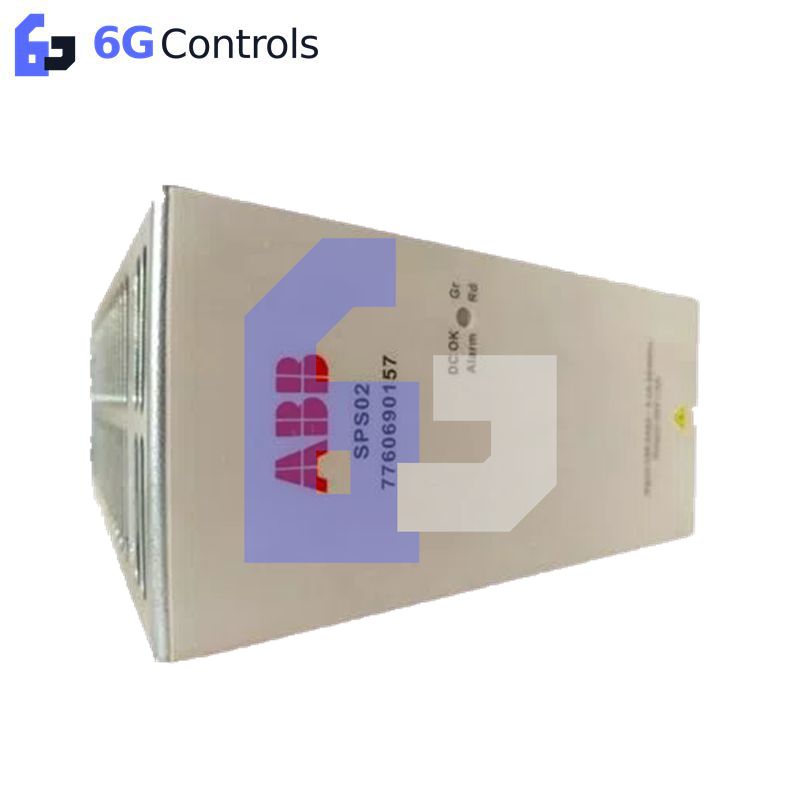

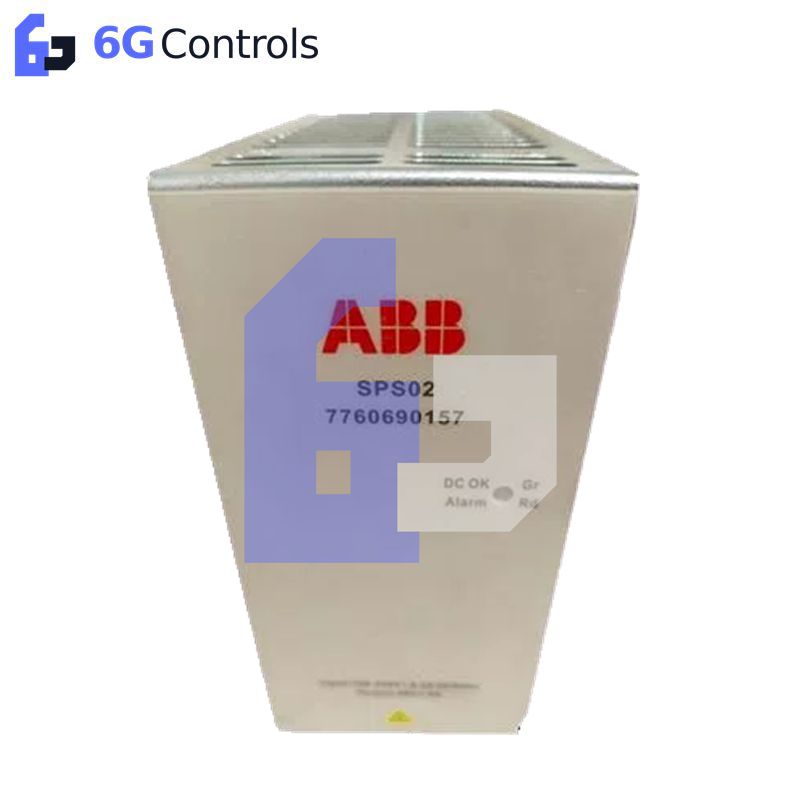

ABB SPS02 Power Supply Module

Configured for AC-to-DC power conversion in industrial automation equipment, the ABB SPS02 (SPS02 Power Supply Module) provides a 48 VDC output from a 90-264 VAC input range. The supplied data specifies a 47-63 Hz input frequency range, 240 W power rating, 85% efficiency, and an operating temperature range of -25 deg C to 70 deg C.

Hardware Specifications

ABB Power Conversion and Control Interface

The SPS02 accepts a wide AC input range of 90-264 VAC at 47-63 Hz and converts the input to a nominal 48 VDC output. The supplied product details specify a 5 A output current, which corresponds to the stated 240 W power rating at 48 VDC. The source data also lists 10 A under output current in its electrical specifications; this conflicts with the later product-detail value of 5 A and should be verified against the applicable ABB hardware documentation before system loading is calculated.

The 85% efficiency specification defines the stated conversion relationship between electrical input and output power. Installation should account for the resulting heat dissipation within the enclosure and maintain the specified operating temperature range.

Frequently Asked Questions

Q: What AC input range does the SPS02 accept?
A: The supplied data specifies 90-264 VAC at 47-63 Hz.

Q: What DC output is specified for the SPS02?
A: The product details specify 48 VDC and 5 A. The source also contains a conflicting 10 A output-current entry, so the actual maximum load current should be confirmed from the applicable hardware documentation.

Q: What operating temperature range is specified?
A: The supplied data specifies -25 deg C to 70 deg C.

Field Installation Guidelines

Mount the module using the designated mechanical fixing points and provide sufficient enclosure clearance for heat dissipation. Keep AC input wiring physically separated from low-level signal and communication wiring where practical.

Terminate protective earth and chassis connections according to the installation requirements of the host cabinet. Route the 48 VDC output conductors with appropriate polarity identification and avoid unnecessary parallel routing with high-current switching conductors.

Verify the AC input range and frequency before energization. Confirm the downstream load requirement against the verified SPS02 output-current specification, particularly because the supplied source contains both 5 A and 10 A output-current values. Do not use the conflicting 10 A value for load sizing until it has been confirmed against the applicable ABB documentation.
