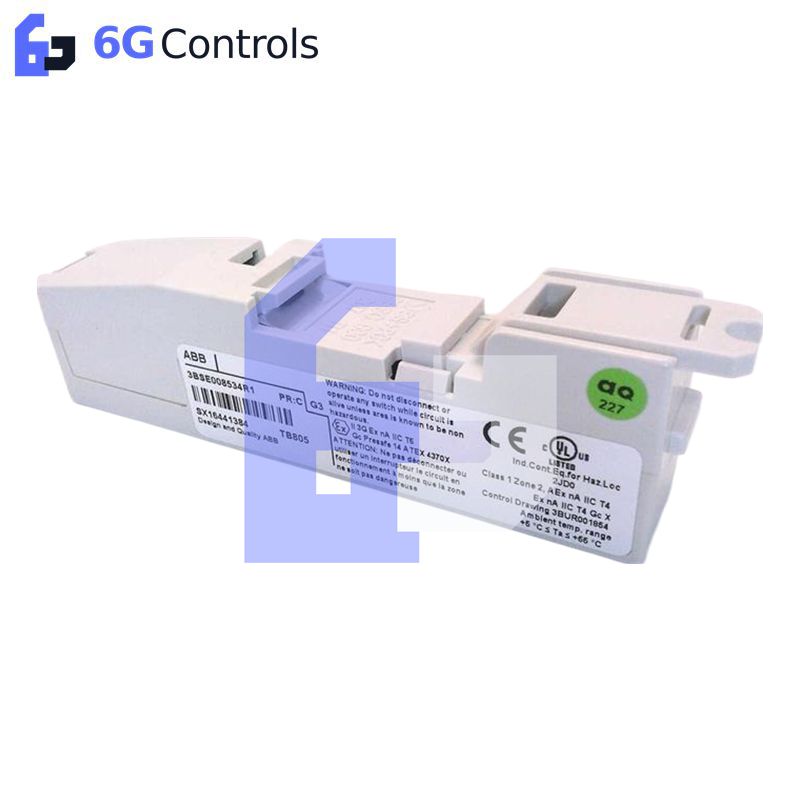

ABB TB805 3BSE008534R1 ModuleBus Cable Adaptor S800 I/O

15 in stock

Manufacturer: ABB
Product No.: TB805-3BSE008534R1
Country of origin: Sweden
Product Type: ModuleBus Cable Adaptor S800 I/O
Condition: Brand New
Payment: T/T, Western Union
Weight: 46 g
Dimensions: 22 mm (W) x 25 mm (D) x 109 mm (H)
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

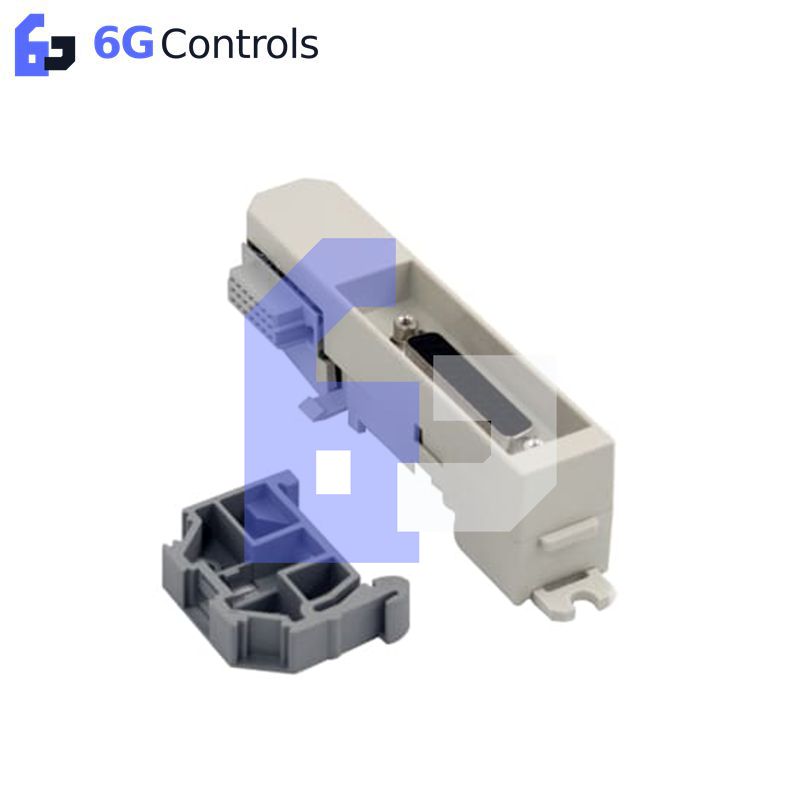

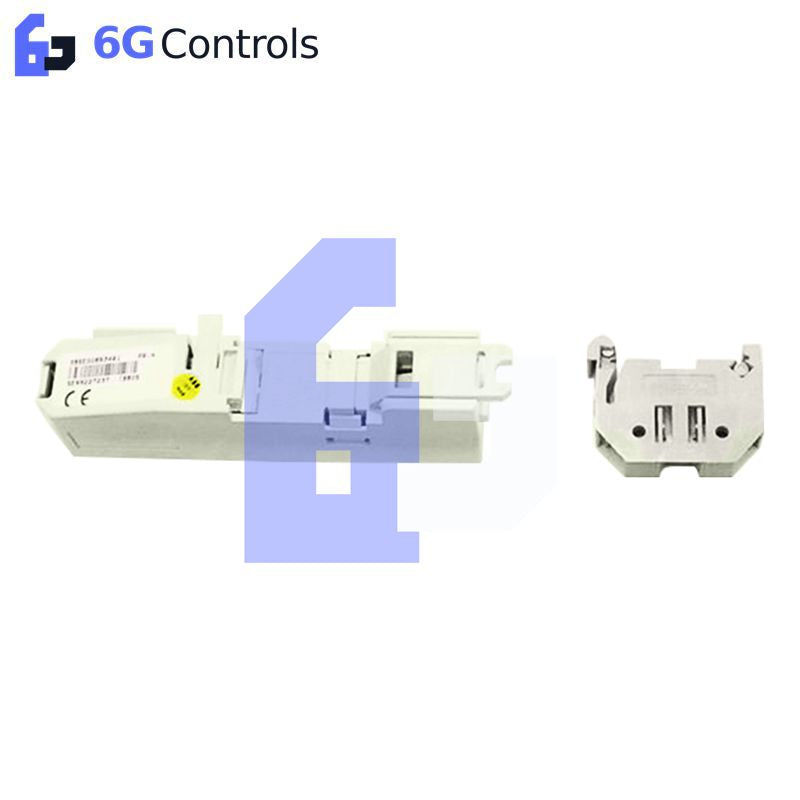

The ABB TB805 (3BSE008534R1) ModuleBus Cable Adaptor extends the electrical ModuleBus when used with the TB806 and TK801V0xx. It allows S800 I/O modules connected to the same electrical ModuleBus to be mounted on separate DIN rails. The adaptor provides the physical interface for extending the ModuleBus connection between distributed mounting positions.

Hardware Specifications

Parameter	Specification
Model	TB805
Article Number	3BSE008534R1
Brand	ABB
Product Type	ModuleBus Cable Adaptor
Product Series	S800 I/O
Weight	46 g
Dimensions	22 mm (W) x 25 mm (D) x 109 mm (H)
Operating Temp	0 to +55 deg C
Storage Temperature	-25 to +70 deg C
Relative Humidity	5 to 95%, non-condensing
Compatible Components	TB806 and TK801V0xx
Mounting	DIN rail
Protection Class	IP20, IEC 60529
Electrical Safety	IEC 61131-2, UL 61010-1, UL 61010-2-201
EMC	EN 61000-6-4 and EN 61000-6-2
Pollution Degree	Degree 2, IEC 60664-1
Corrosion Protection	ISA-S71.04 G3
Hazardous Location	Class I Division 2 cULus, Class I Zone 2 cULus, ATEX Zone 2
Marine Certification	ABS, BV, DNV, LR, CCS
Equipment Class	Class I, earth-protected, IEC 61140
Compliance	CE, EU RoHS, UAE RoHS, CN RoHS, WEEE Directive 2012/19/EU

ModuleBus Extension and Mounting Configuration

The TB805 extends the electrical ModuleBus through a compatible connection arrangement incorporating the TB806 and TK801V0xx. This configuration permits S800 I/O modules on the same electrical ModuleBus to occupy different DIN rails.

Installation must follow the applicable ABB hardware configuration instructions. The cable and adaptor arrangement must maintain the intended ModuleBus connection between mounting positions. Confirm the compatibility of the associated TB806 and TK801V0xx components before assembly.

Frequently Asked Questions (FAQ)

Q: Which components are specified for use with the TB805?

A: The supplied product description identifies the TB806 and TK801V0xx as associated components for extending the electrical ModuleBus.

Q: Can the TB805 support I/O modules installed on separate DIN rails?

A: Yes. The adaptor is intended to extend the electrical ModuleBus so that I/O modules on the same bus can be mounted on different DIN rails.

Q: What environmental limits apply to the TB805?

A: The specified operating temperature is 0 to +55 deg C, with storage from -25 to +70 deg C. Relative humidity is 5 to 95% without condensation.

Field Installation Guidelines

Verify that the TB805 article number is 3BSE008534R1 and confirm compatibility with the associated TB806 and TK801V0xx components.
Mount the adaptor and associated hardware according to ABB installation documentation and the intended DIN rail arrangement.
Route the ModuleBus extension cable to avoid excessive mechanical stress, sharp bends, and interference with adjacent wiring.
Keep signal wiring separated from power conductors where required by the installation design and applicable EMC practices.
Maintain protective earthing and enclosure bonding in accordance with the equipment design and applicable electrical safety standards.
Observe the IP20 protection rating. Install the assembly inside an enclosure that provides the environmental protection required by the site.
Confirm the operating temperature, humidity, hazardous-area classification, and applicable certification requirements before commissioning.
Inspect the ModuleBus connections for correct seating and mechanical retention before energizing the system.

Payment: T/T, Western Union.

Shipping port: Xiamen.

Lead time: Typically 1–3 working days after payment confirmation (subject to stock).

Worldwide delivery: We ship industrial automation parts to customers around the world. Freight is quoted with your RFQ.
