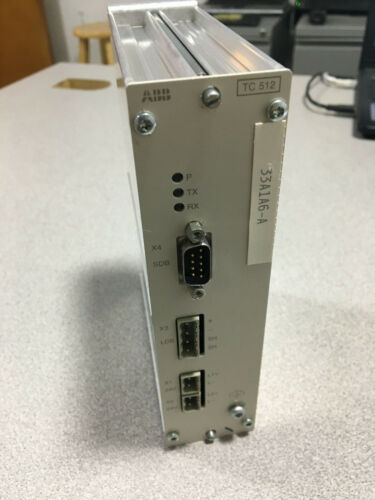

ABB TC512 3BSE006383R1 RS485 Twisted Pair Modem

Configured for serial data transmission in Advant Controller platforms, the ABB TC512 (3BSE006383R1 RS485 Twisted Pair Modem) provides direct physical/electrical execution.

Hardware Specifications

Backplane Bus Communication Velocity and Deterministic Field Networks

The ABB TC512 module interfaces directly with the system backplane to deliver deterministic, low-latency communication over RS485 differential twisted-pair lines. Integrated hardware transceivers ensure noise rejection across extended cabling distances, preventing signal degradation in electrically noisy sub-station and plant floor environments. Standardized firmware flash compatibility allows transparent protocol translation across legacy and updated ABB controller rack backplanes without adding execution overhead.

Frequently Asked Questions

Q: Can the TC512 RS485 modem be hot-swapped during active system operation?

A: Hot-swapping must conform to the specific rack carrier rules of the host Advant system. While the module supports live insertion, ensure the RS485 bus segment is quiescent or properly terminated to prevent transient network faults during physical mating.

Q: What grounding procedure is required for the twisted-pair shield on the TC512?

A: Ground the overall cable shield at one end only to the system earth bar to prevent ground loops. Do not connect the shield at both ends unless equipotential bonding between stations is fully verified.

Field Installation Guidelines

• Mounting & Mechanical Fixation: Secure the TC512 into its designated rack slot or baseplate carrier. Tighten all retaining screws to the recommended torque specification to maintain physical backplane connectivity and earth grounding.
• Wiring & Terminal Shielding: Utilize high-quality shielded twisted-pair cabling for all RS485 differential signal lines (+/A, -/B). Maintain a minimum 200 mm separation between signal lines and high-voltage AC power wiring to minimize electromagnetic interference.
• Bus Termination: Ensure proper bus termination resistors (typically 120 ohms) are applied at the physical start and end nodes of the RS485 loop to suppress signal reflections.
