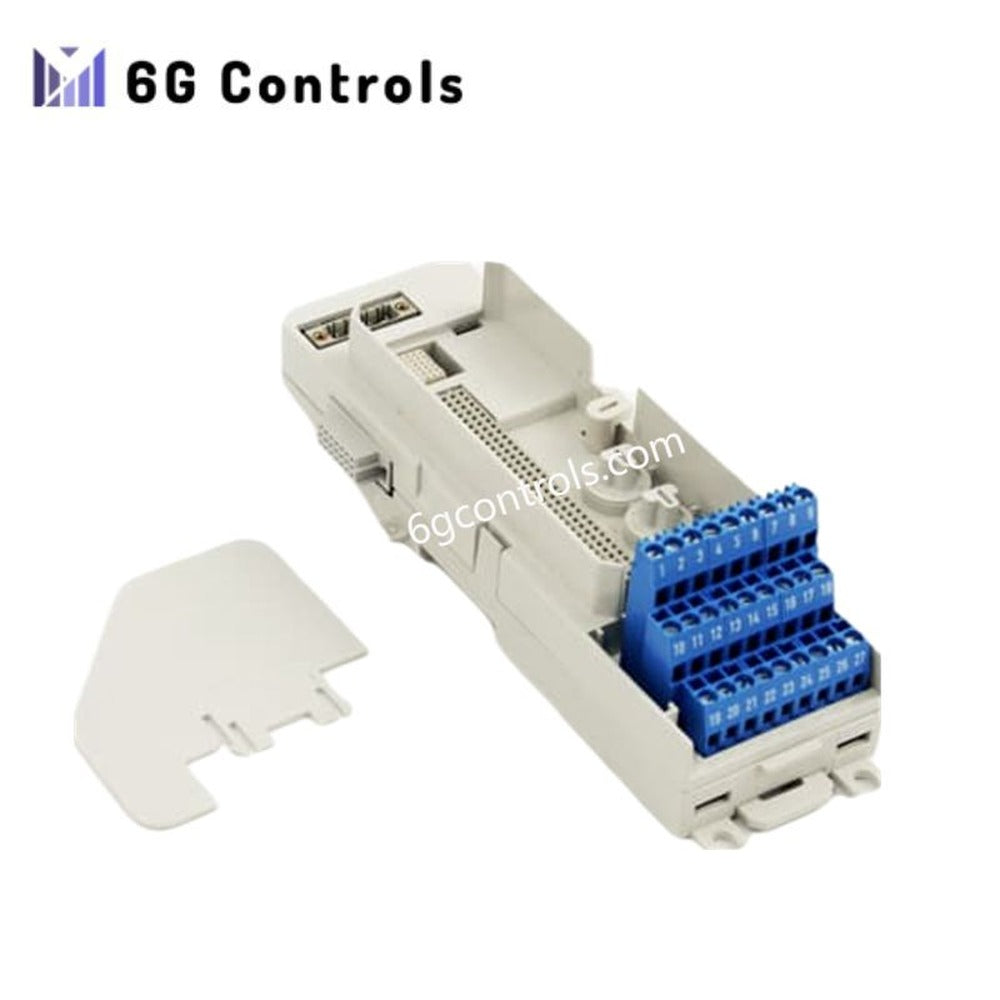

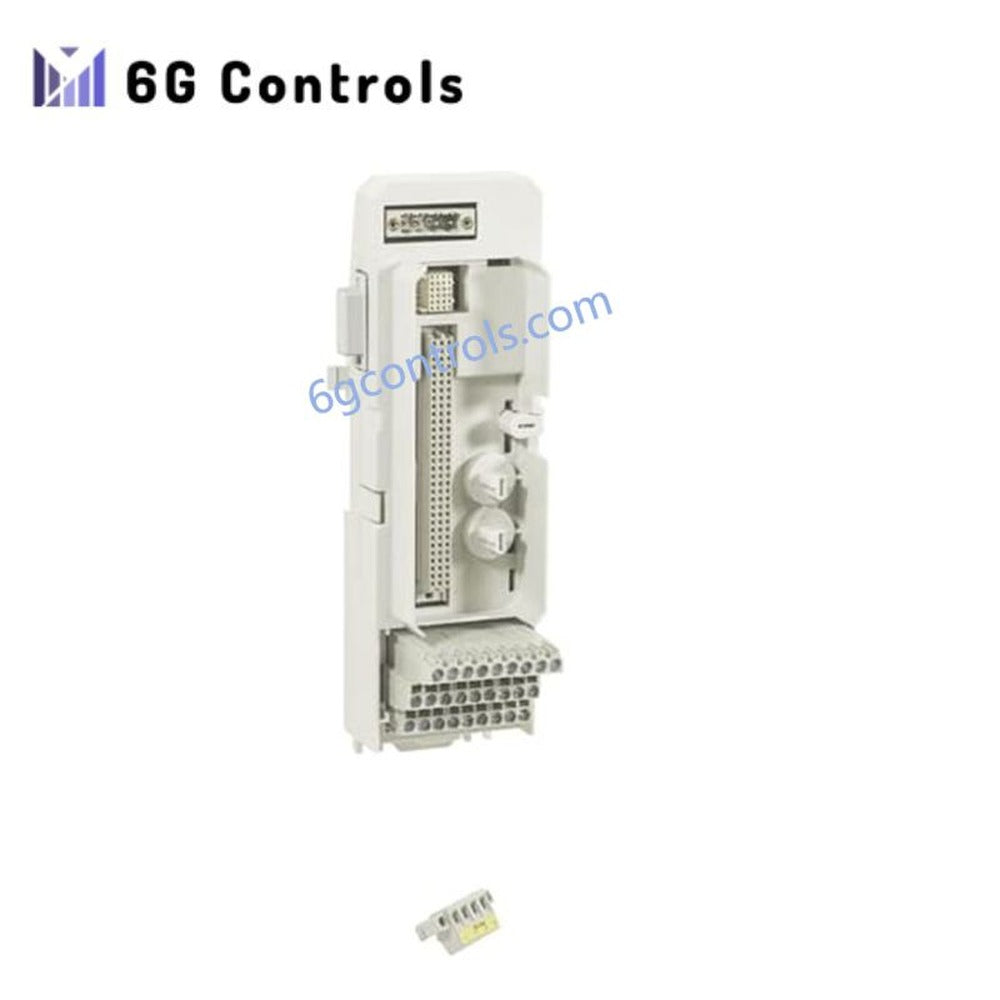

ABB TU891 3BSC840157R1 Terminal block High Quality

16 in stock

Manufacturer: ABB
Product No.: TU891
Product Type: Terminal block
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.17 kg
Dimensions: 64 mm × 58 mm × 194 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

ABB TU891 MTU

The TU891 MTU is a compact module designed to distribute the ModuleBus to connected I/O modules and the next MTU. It handles field signals and process voltage connections with precision and ensures proper addressing of I/O modules.

General Information

Article Number: 3BSC840157R1
Type: Compact
Connection: Terminal block
Channels: 8
Voltage: 24 V
Mounting Orientation: Horizontal
Maximum Operating Temperature: 55 ºC (131 °F)
Compatible I/O Modules: AI890, AI893, AI895, AO890, AO895, DI890, DO890
Process Connections: 27 gray terminals
Single/Redundant I/O: Single

Electrical Specifications

Maximum Current per I/O Channel: 2 A
Process Connector Wire Size:
- Solid: 0.2 – 4 mm²
- Stranded: 0.2 – 2.5 mm² (24 – 12 AWG)
- Recommended Torque: 0.5 – 0.6 Nm
Power Supply Connector Wire Size:
- 0.25 – 2.5 mm² (24 – 14 AWG)
- Recommended Torque: 0.5 – 0.6 Nm
Dielectric Test Voltage: 500 V a.c.

Environment and Certification

CE Mark: Yes
Electrical Safety Standards: IEC 61131, EN 61010-1, EN 61010-2-201
Hazardous Locations: –
Marine Certification: ABS, BV, DNV-GL, LR
Operating Temperature: 0 to +55 °C (32 to +131 °F)
Storage Temperature: -40 to +70 °C (-40 to +158 °F)
Relative Humidity: 5 to 95 % non-condensing
Pollution Degree: 2 (IEC 60664-1)
Corrosion Protection: ISA-S71.04: G3
Protection Class: IP20 (IEC 60529)
Mechanical Operating Conditions: IEC/EN 61131-2
EMC Standards: EN 61000-6-4, EN 61000-6-2
Overvoltage Category: IEC/EN 60664-1, EN 50178
Equipment Class: Class I (earth protected)
RoHS Compliance: EN 50581:2012

Dimensions & Weight

Width: 64 mm (1.77 in.) including connector, 58.5 mm (2.3 in.) edge-to-edge installed
Depth: 58 mm (2.28 in.), 106 mm (4.2 in.) including terminals
Height: 194 mm (7.6 in.) including latch
Weight: 0.17 kg (0.37 lbs)

Features

Distributes ModuleBus to I/O modules and next MTU
Generates correct addresses for connected I/O modules
Supports standard process voltages and currents within specified limits
Designed for reliable industrial operation with IP20 protection
