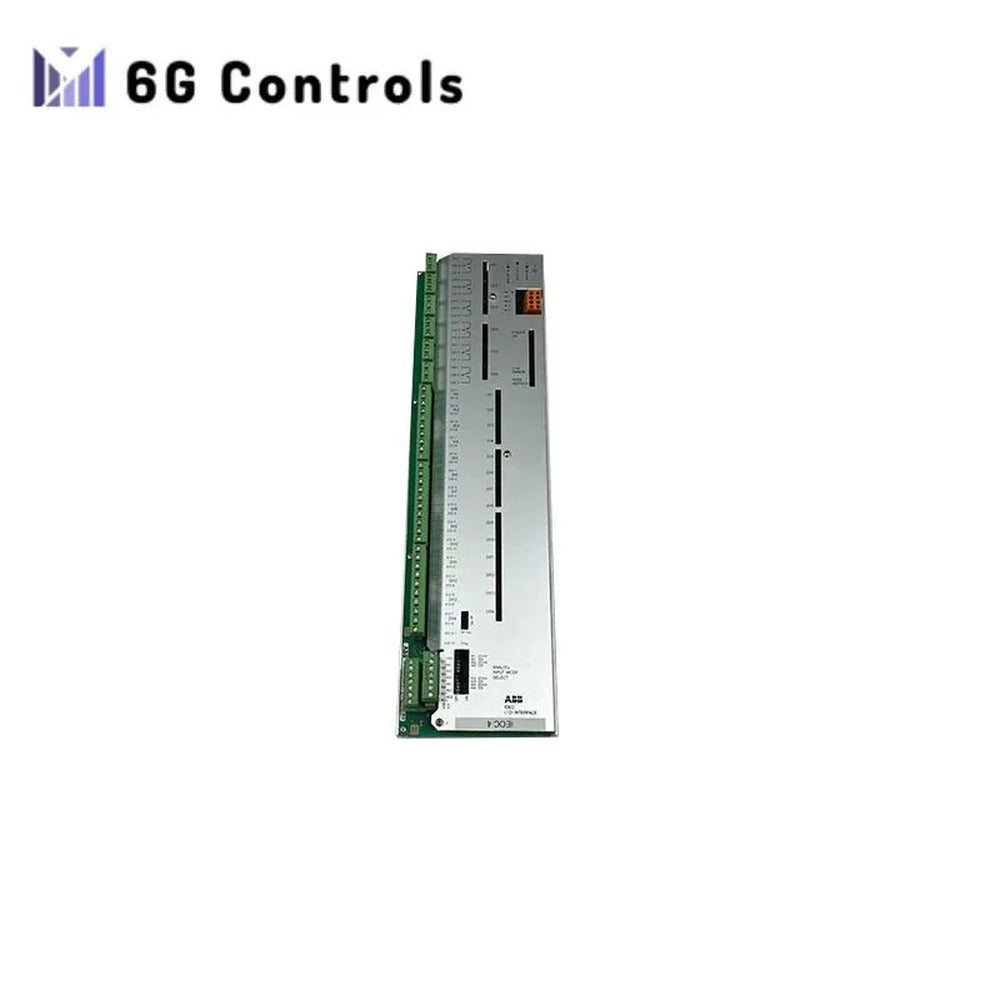

ABB UFC719AE01 3BHB003041R0101 I/O Control Board

Low stock: 10 left

Manufacturer: ABB
Product No.: UFC719AE01 3BHB003041R0101
Country of origin: Sweden
Product Type: I/O Control Board
Condition: Brand New
Payment: T/T, Western Union
Weight: 1.18 kg
Dimensions: 45.3 cm x 12.8 cm x 4.8 cm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

The ABB UFC719AE01 3BHB003041R0101, also cataloged as the UFC719AE01 I/O control board, provides 32-channel digital and analog signal interfacing for ABB UFC719 high-voltage inverters. It performs signal acquisition and control output through a serial communication interface and operates from a 24 VDC control supply.

Hardware Specifications

Parameter	Specification
Model	UFC719AE01 3BHB003041R0101
Brand	ABB
Product Type	I/O Control Board
Series	UFC719
I/O Configuration	16-bit, 32-channel
Input/Output Types	Digital and analog inputs/outputs
Communication Interface	Serial
Application	ABB UFC719 high-voltage inverters
Power Supply	24 VDC
Weight	1.18 kg
Dimensions	45.3 cm x 12.8 cm x 4.8 cm
Operating Temp	-20 to +70 deg C, subject to environmental conditions
Power Consumption	Not specified in supplied data

UFC719 I/O and Serial Communication

The UFC719AE01 provides a 32-channel interface for digital and analog signal handling. Input channels can acquire signals from connected field devices, while output channels provide control signals to external actuators and inverter-related circuits. The serial communication interface provides data exchange between the board and the UFC719 inverter control system.

The board is specified for use with ABB UFC719 high-voltage inverters. Signal wiring should maintain separation between low-level analog circuits, digital I/O conductors, and power conductors to reduce induced electrical noise.

Frequently Asked Questions (FAQ)

Q: What inverter platform is the UFC719AE01 designed for?
A: The board is specified for ABB UFC719 high-voltage inverters.

Q: What type of I/O does the UFC719AE01 provide?
A: The supplied data specifies 32 channels with digital and analog inputs and outputs.

Q: What power supply is specified for the board?
A: The supplied technical data specifies a 24 VDC power supply.

Field Installation Guidelines

Verify the board identification and part number before installation: UFC719AE01, 3BHB003041R0101.
Confirm that the inverter control system is isolated from hazardous voltage before inserting or removing the board.
Install the board according to the mechanical orientation and retention method specified for the UFC719 equipment assembly.
Route analog signal wiring separately from high-voltage and high-current conductors.
Use appropriate shield termination practices for analog and serial communication wiring according to the inverter installation documentation.
Verify the 24 VDC supply polarity and wiring before energizing the board.
Check all I/O connections for correct channel assignment before applying operating power.
After installation, verify serial communication and I/O signal states from the associated UFC719 control system.
