AF533-03 | Yokogawa AF-533-03 | 6-Channel Alarming Fuse Module

Product Overview

The AF533-03 is a multi-channel fuse supervision module developed by Yokogawa Electric Corporation for use in PLC racks and industrial control panels. It combines individual circuit protection with centralized alarm signaling, enabling maintenance personnel to immediately identify blown fuses through visual LED status indicators and remote alarm outputs.

Designed for continuous operation in harsh environments, this module supports fast-acting DC fuse protection while maintaining electrical isolation between channels to improve system safety and fault containment.

Key Functional Characteristics

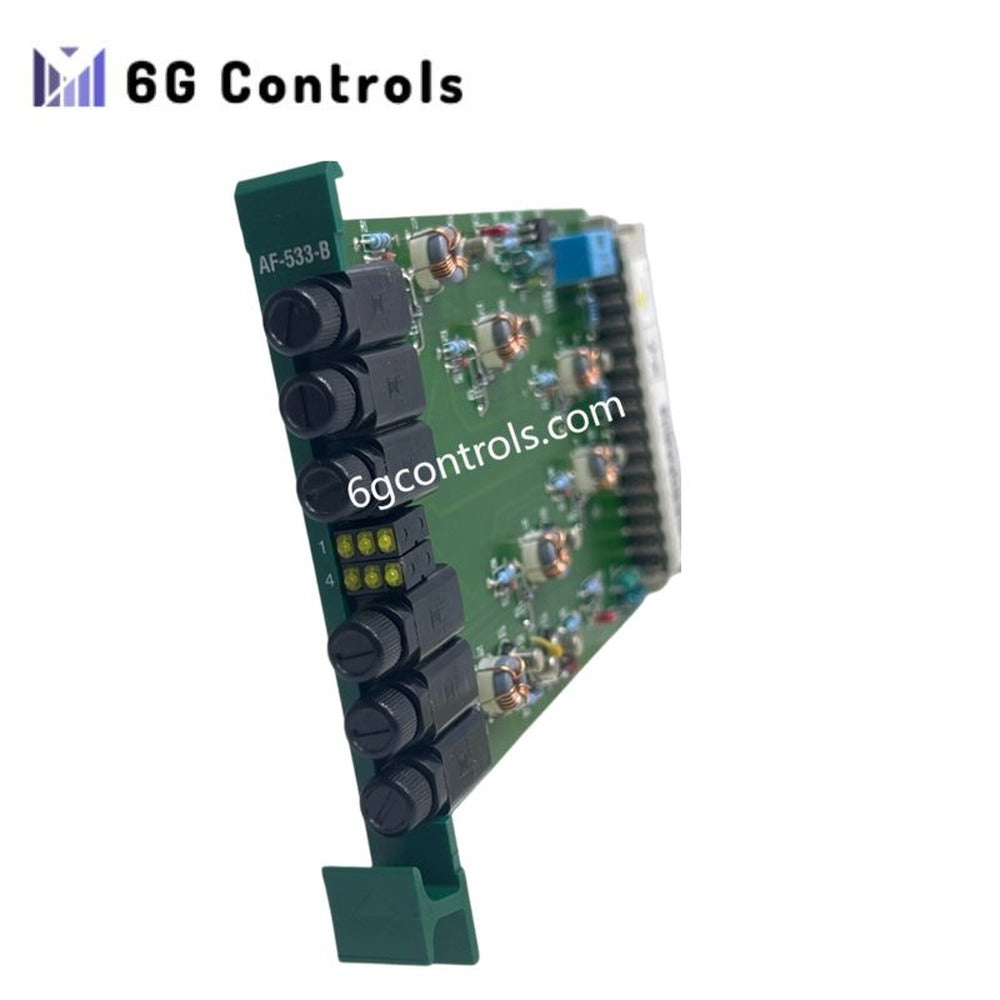

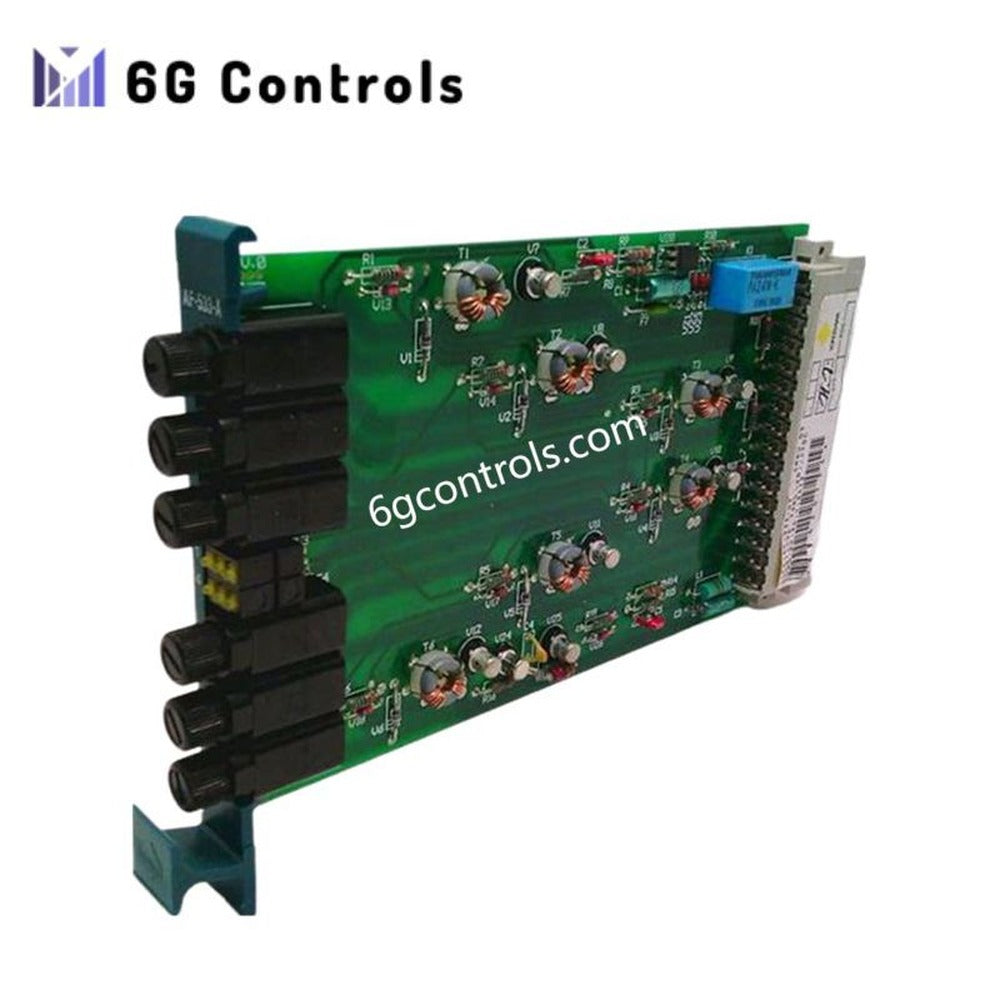

The AF533-03 integrates six independently fused power channels within a compact enclosure. Each channel includes a front-accessible fuse holder and a dedicated LED that activates upon fuse interruption. A shared alarm interface allows the module to report fault conditions to higher-level control or monitoring systems.

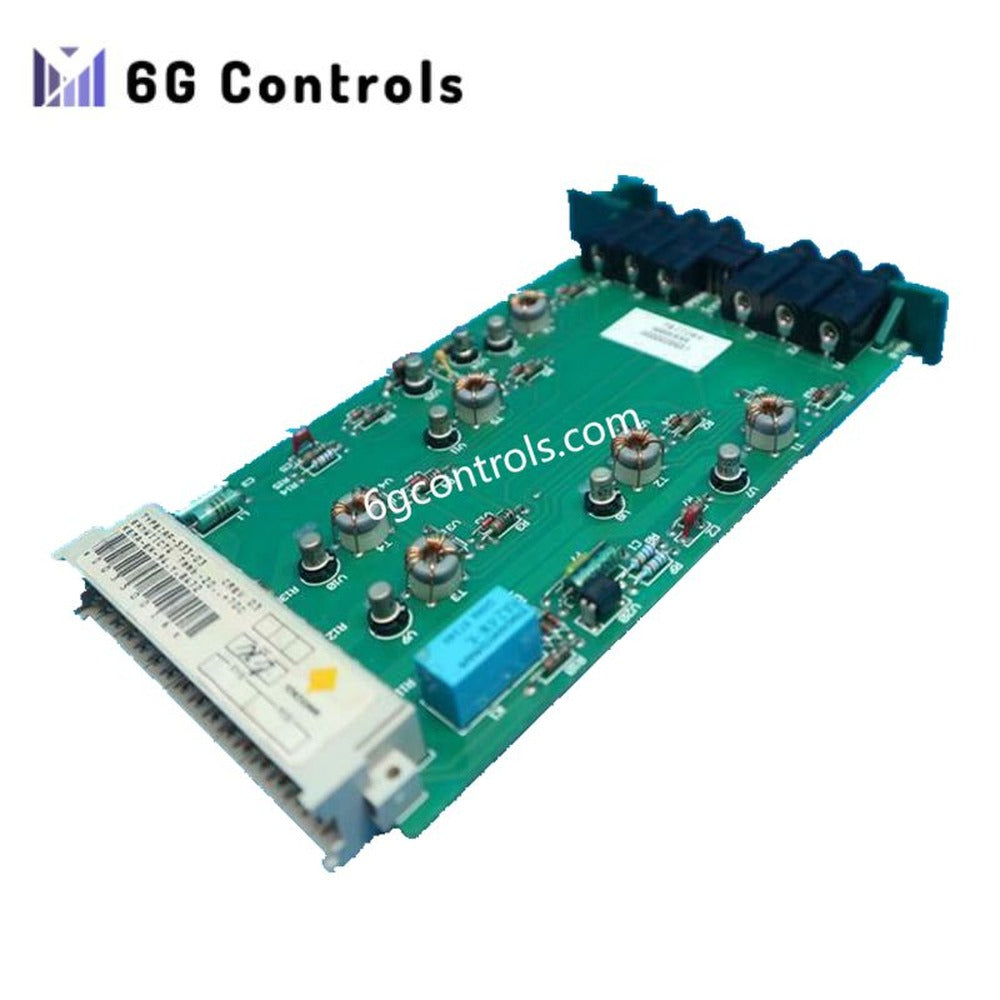

The internal detection circuit uses an oscillator-driven transformer principle to sense loss of current through a fuse, ensuring reliable annunciation without direct load interference.

Technical Specifications

• Model: AF533-03
• Manufacturer: Yokogawa Electric Corporation
• Module Type: DC Alarming Fuse Module
• Number of Channels: 6 isolated fuse channels
• Nominal Supply Voltage: 24 VDC
• Standard Fuse Rating: 2 A fast-acting (user-replaceable)
• Fuse Accessibility: Front-mounted, tool-assisted
• Visual Status Indication: 6 individual yellow LEDs
• Alarm Outputs:
  • Common dry contact for external annunciation
  • Common DC current sink output for PLC/DCS input
• Electrical Isolation: Channel-to-channel galvanic isolation
• Operating Temperature Range: -25 °C to +85 °C
• Mounting: Control cabinet or system rack installation
• Dimensions: 1.3 cm × 12.7 cm × 17.8 cm
• Weight: 0.1 kg

Design and Reliability Considerations

Yokogawa designed the AF533-03 for long service life in mission-critical control systems. The module minimizes downtime by allowing rapid fault localization without removing wiring or disconnecting adjacent circuits. Galvanic isolation reduces the risk of cascading failures, making it suitable for high-availability applications.

Typical Application Scenarios

The AF533-03 is commonly installed in:

• PLC and DCS control cabinets
• Power distribution sections of automation systems
• Process control panels in power generation facilities
• Oil, gas, and chemical processing plants
• Industrial systems requiring centralized fuse status feedback

Frequently Asked Questions

Q: Can different fuse ratings be used per channel? Yes. While the module is supplied with 2 A fast-acting fuses as standard, users may install alternative fuse ratings in accordance with system design documentation and electrical limits.

Q: Does a blown fuse interrupt other channels? No. Each channel is electrically isolated and operates independently, ensuring that a fault on one circuit does not affect adjacent channels.

Q: Can the alarm output be connected directly to a PLC input? Yes. The DC current sink output and common contact are designed for seamless integration with PLC or DCS digital input modules.
