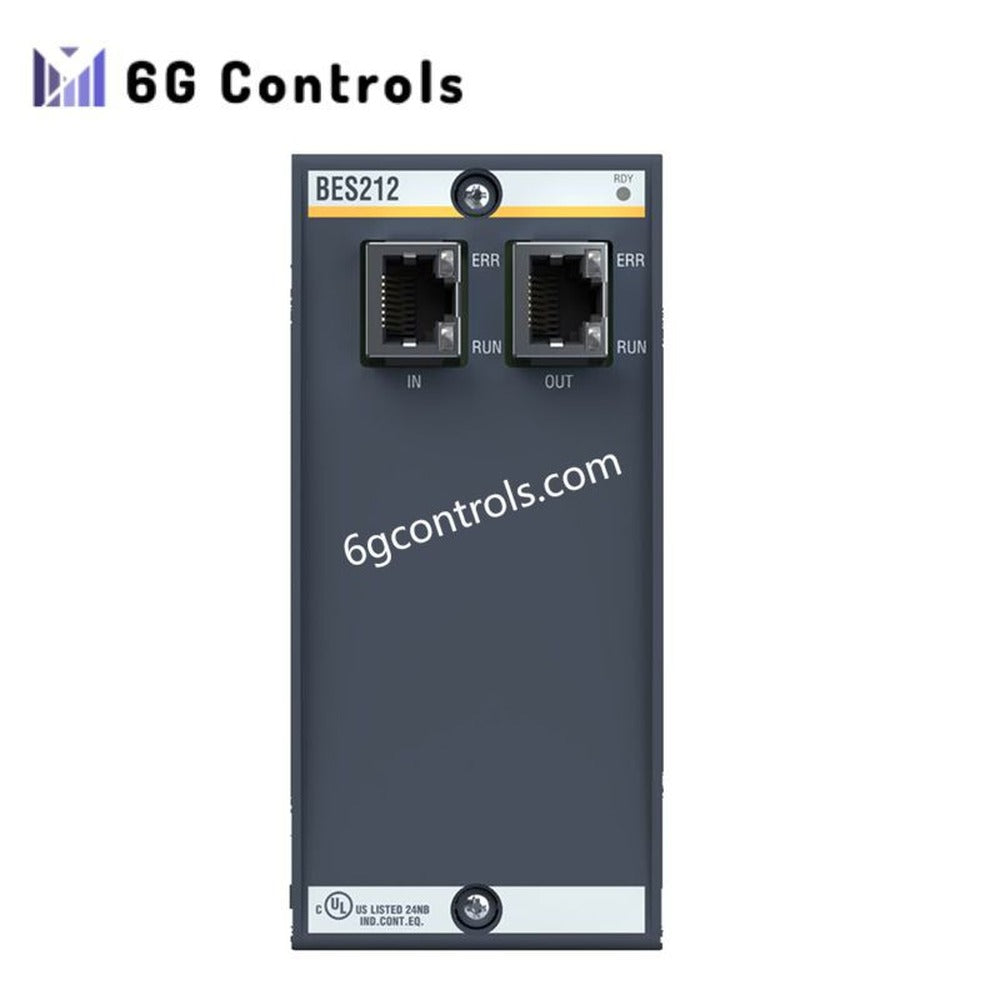

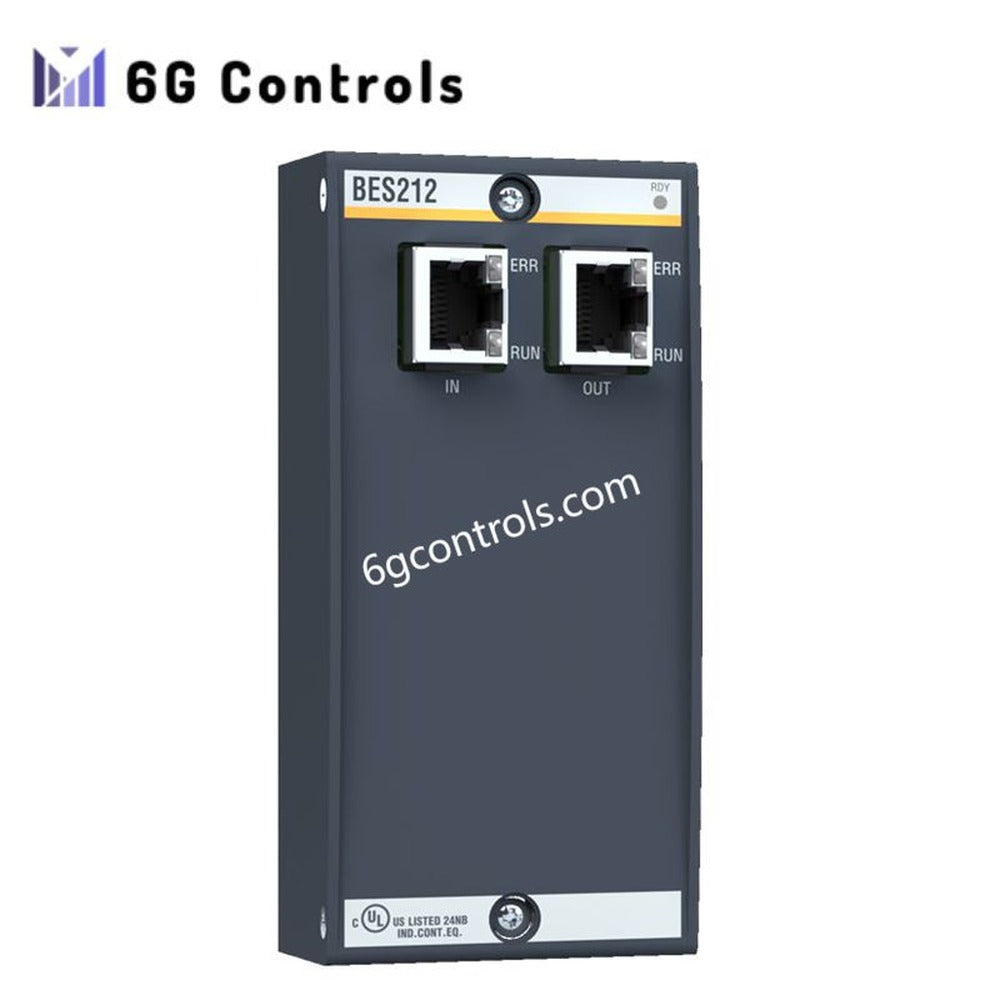

Bachmann BES212/N Bus Expansion Module High Quality

18 in stock

Manufacturer: Bachmann
Product No.: BES212/N
Country of origin: Austria
Product Type: Bus Expansion Module
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.6 kg
Dimensions: 330 mm × 63 mm × 45 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Overview

The Bachmann BES212/N is a bus expansion module designed to extend the communication capabilities of M1 automation systems. It facilitates seamless integration of remote I/O stations into the FASTBUS network, enabling high-speed, low-latency communication. The module supports both copper (RJ45) and fiber optic connections, offering flexibility in installation. Additionally, it includes an integrated 24 V power supply, providing power to connected sub-devices, which simplifies wiring and reduces the need for separate power sources.

Technical Specifications

Specification	Details
Model	BES212/N
Manufacturer	Bachmann Electronic GmbH
Function	Bus Expansion Module
Communication Protocol	FASTBUS
Interfaces	2× FASTBUS slave ports
Transmission Media	Copper (RJ45), Fiber Optic (HCS/PCF up to 150 m, POF up to 40 m)
Max Distance per Segment	Copper: 200 m; Fiber: 150 m (HCS), 40 m (POF)
Cable Type	CAT7 special cable (3 m standard)
Max Number of Stations	6 (BES212/N)
Integrated Power Supply	Yes (optional)
Input Voltage Range	18 V DC to 34 V DC
Power Consumption	Max. 1.2 A at 24 V (Nominal Power: 17 W)
Output Current	+5 V: 2 A; +15 V: 250 mA; –15 V: 200 mA
Reverse Polarity Protection	Yes
Signal Delay	< 1.5 µs
Operating Temperature	-30 °C to +60 °C
Storage Temperature	-40 °C to +85 °C
Relative Humidity	Operation: 5% to 95% non-condensing; Storage: 5% to 95% non-condensing
