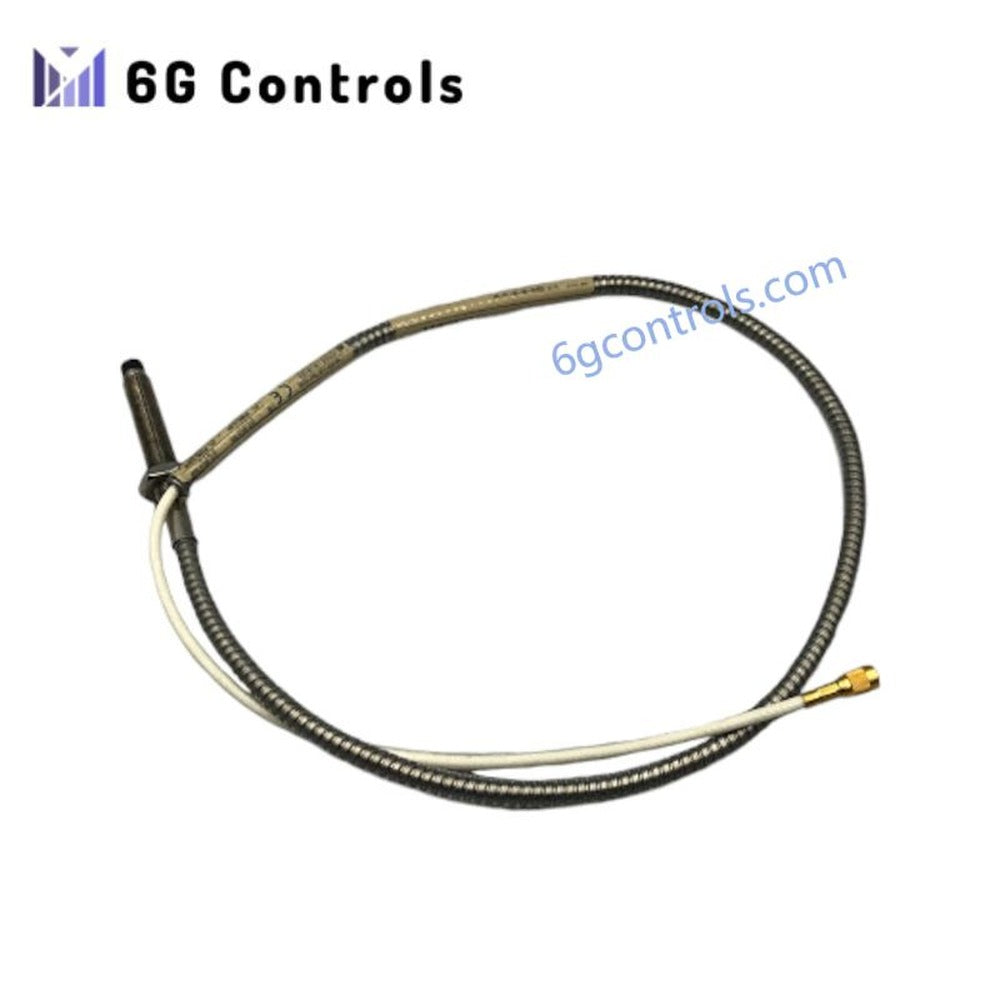

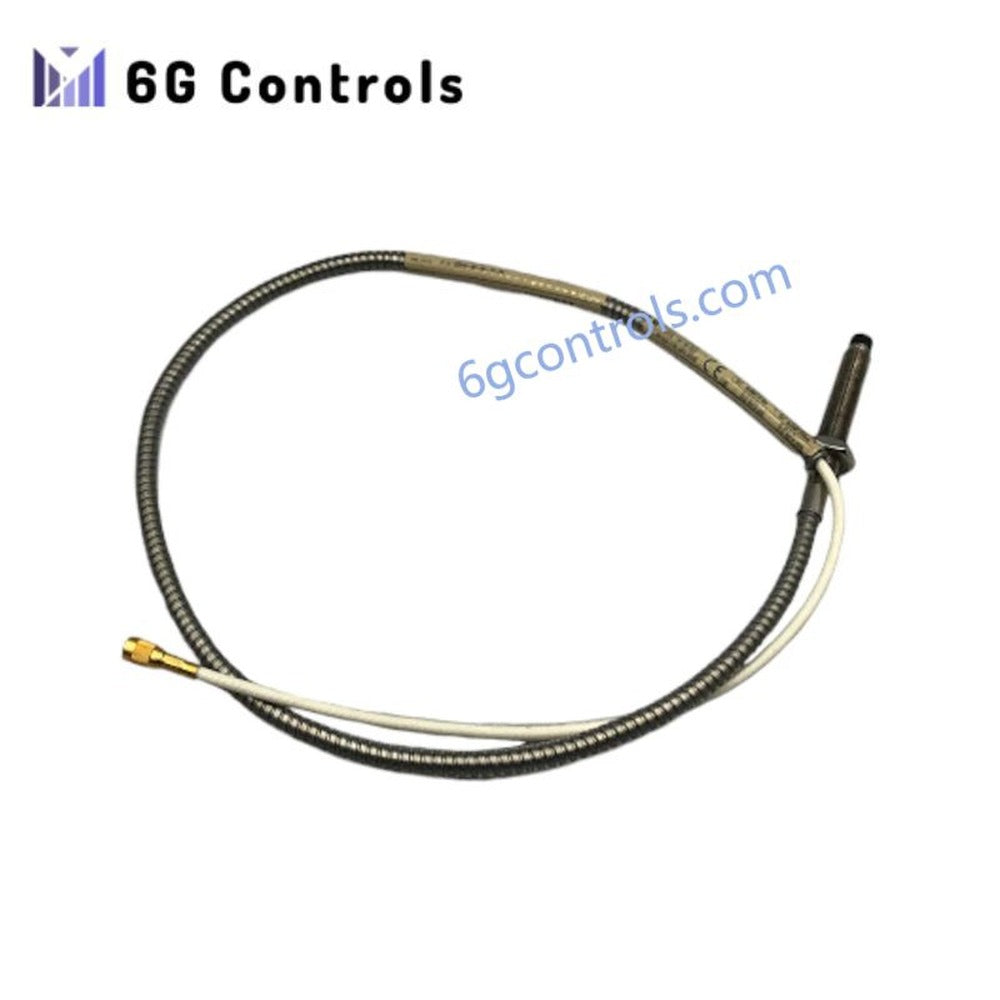

Bently Nevada 22810-00-06-10-02 Proximity Probe Brand New

Product Description

The Bently Nevada 22810-00-06-10-02 is an 8 mm Standard Mount Proximity Probe from the 7200 Series, engineered for precise non-contact measurement of shaft displacement and vibration in critical rotating machinery. It ensures reliable monitoring of machinery health, enabling early detection of mechanical faults and minimizing unplanned downtime. Moreover, its robust stainless steel housing and IP67 rating provide superior durability in harsh industrial environments.

This probe works seamlessly with a Proximitor® Sensor and extension cable to form a complete transducer system, delivering accurate and consistent signals. In addition, the standard calibration ensures compatibility with existing monitoring systems and simplifies integration for machinery protection and condition monitoring applications.

Key Features & Benefits

• Provides accurate non-contact vibration and shaft displacement measurement relative to the probe tip.
• Detects mechanical issues such as imbalance, misalignment, bearing wear, and shaft cracks.
• Continuous monitoring capability reduces the risk of catastrophic machinery failure.
• Corrosion-resistant 316 stainless steel housing supports long-term operation in harsh environments.
• Wide operating temperature range accommodates extreme industrial conditions from –51 °C to +177 °C.
• IP67-rated design ensures protection against dust and water ingress.
• Compact, lightweight construction simplifies installation and retrofitting.
• Calibrated for standard scale factor of 7.87 V/mm, ensuring precise signal output.

Technical Specifications

• Probe Tip Diameter: 8 mm
• Cable Length: 6.0 m
• Thread Type: M10 × 1 stainless steel
• Housing Material: 316 stainless steel
• Nominal Range: 2.0 mm (80 mils)
• Linear Range: 1.6 mm, from 0.25 to 2.10 mm
• Scale Factor: 7.87 V/mm ±5%
• Frequency Response: 0–10 kHz (±3 dB)
• Operating Temperature: –51 °C to +177 °C (–60 °F to +350 °F)
• Power Supply Voltage: DC 12 V
• Current Consumption: <20 mA
• Mounted Resonant Frequency: >20 kHz
• Weight: 0.323 kg
• Ingress Protection: IP67

Typical Applications

• Turbines, compressors, pumps, and industrial motors
• Machinery protection and condition monitoring systems
• Rotating equipment requiring precise vibration and displacement analysis
• Predictive maintenance programs to extend machinery lifecycle

FAQ

Q: Can this probe operate in extremely hot environments? A: Yes, the 22810-00-06-10-02 supports temperatures up to 177 °C (350 °F).

Q: Is this probe compatible with other 7200 Series Proximitor sensors? A: Yes, it integrates seamlessly with 7200 Series Proximitor Sensors and extension cables.

Q: How is the cable length specified? A: The “06” suffix indicates a 6-meter cable length; other lengths are available upon request.

Q: Does the probe provide real-time monitoring? A: Absolutely, it continuously transmits vibration and displacement data for immediate machinery protection.

Q: What maintenance is required? A: Minimal maintenance is needed. Periodic inspection of the probe tip and cable connections ensures long-term performance.
