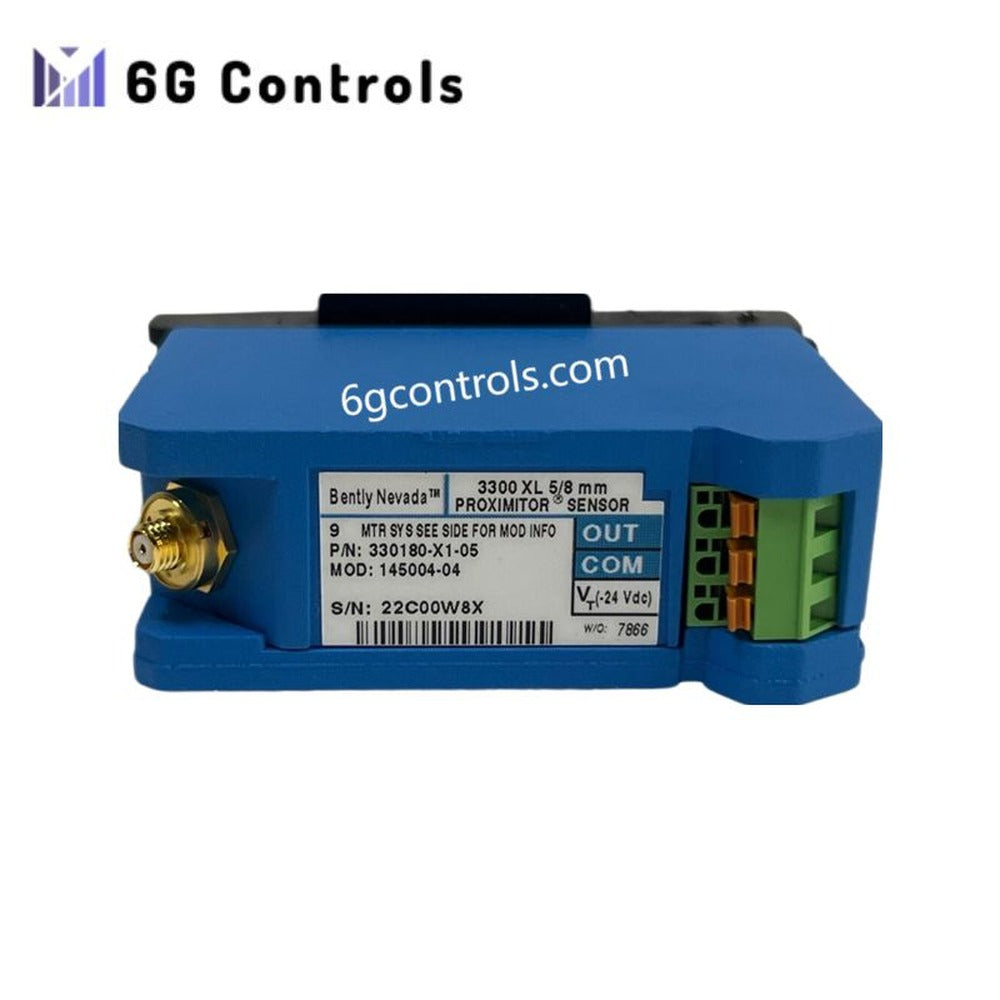

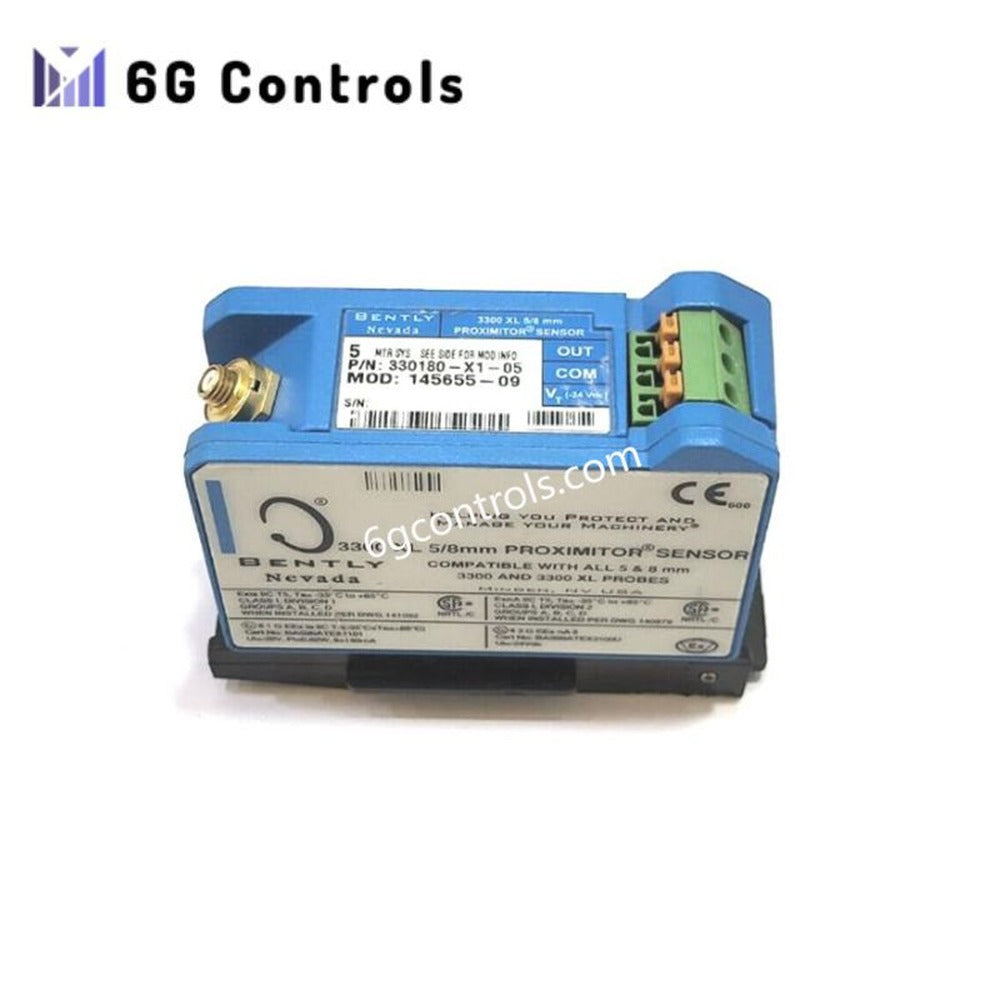

Bently Nevada 330180-X1-05 Proximitor Sensor Brand New

Product Description

The Bently Nevada 330180‑X1‑05 Proximitor Sensor provides high-precision non-contact measurement of shaft vibration, displacement, and position in rotating machinery. Moreover, it integrates seamlessly with 3300 XL probe systems, ensuring reliable condition monitoring in industrial environments. Designed for both static and dynamic measurements, the sensor supports predictive maintenance programs while protecting critical equipment from unplanned downtime. Its robust construction and advanced eddy-current technology deliver accurate and repeatable results under harsh operating conditions.

Key Features & Benefits

• Non-contact eddy-current sensing prevents mechanical wear and improves reliability.
• Compatible with 5 mm and 8 mm 3300/3300 XL probes for flexible system configuration.
• Stable analog output ensures precise monitoring of both vibration and shaft position.
• Rugged housing and connectors withstand dust, moisture, EMI/RFI, and industrial contaminants.
• Supports Keyphasor® reference and speed signals, enabling synchronized monitoring of rotating machinery.
• Facilitates predictive maintenance, reducing the risk of mechanical failures and downtime.

Technical Specifications

• Product Type: 3300 XL Proximitor Sensor (330180‑X1‑05)
• Power Supply: –17.5 VDC to –26 VDC, typical current 12 mA
• Probe Compatibility: 3300-series 5 mm or 3300 XL 8 mm probes with extension cable
• Sensor Output: Analog voltage proportional to shaft distance
• Output Resistance: 50 Ω
• Measurement / Gap Range: 0–2 mm typical linear range
• Operating Temperature: –40 °C to +100 °C
• Housing / Protection: Rugged aluminum/stainless steel; high immunity to EMI/RFI

Typical Applications

• Shaft vibration and displacement monitoring on turbines, compressors, and pumps.
• Integration into condition monitoring systems for predictive maintenance.
• Early detection of misalignment, imbalance, or bearing wear in critical machinery.
• Compatible with 3300 XL transducer architecture and Keyphasor® reference signals.
• Suitable for retrofit or OEM installations requiring non-contact, high-reliability sensing.

FAQ

Q: Which probes can be used with this Proximitor Sensor? A: It supports 3300-series 5 mm probes and 3300 XL 8 mm probes with extension cables.

Q: What voltage supply is required? A: The sensor operates on –17.5 VDC to –26 VDC, consuming about 12 mA typical.

Q: Can it withstand harsh industrial environments? A: Yes, the sensor has rugged housing and high EMI/RFI immunity for reliable performance.

Q: What types of measurements are possible? A: Non-contact measurement of shaft displacement, vibration, and static alignment.
