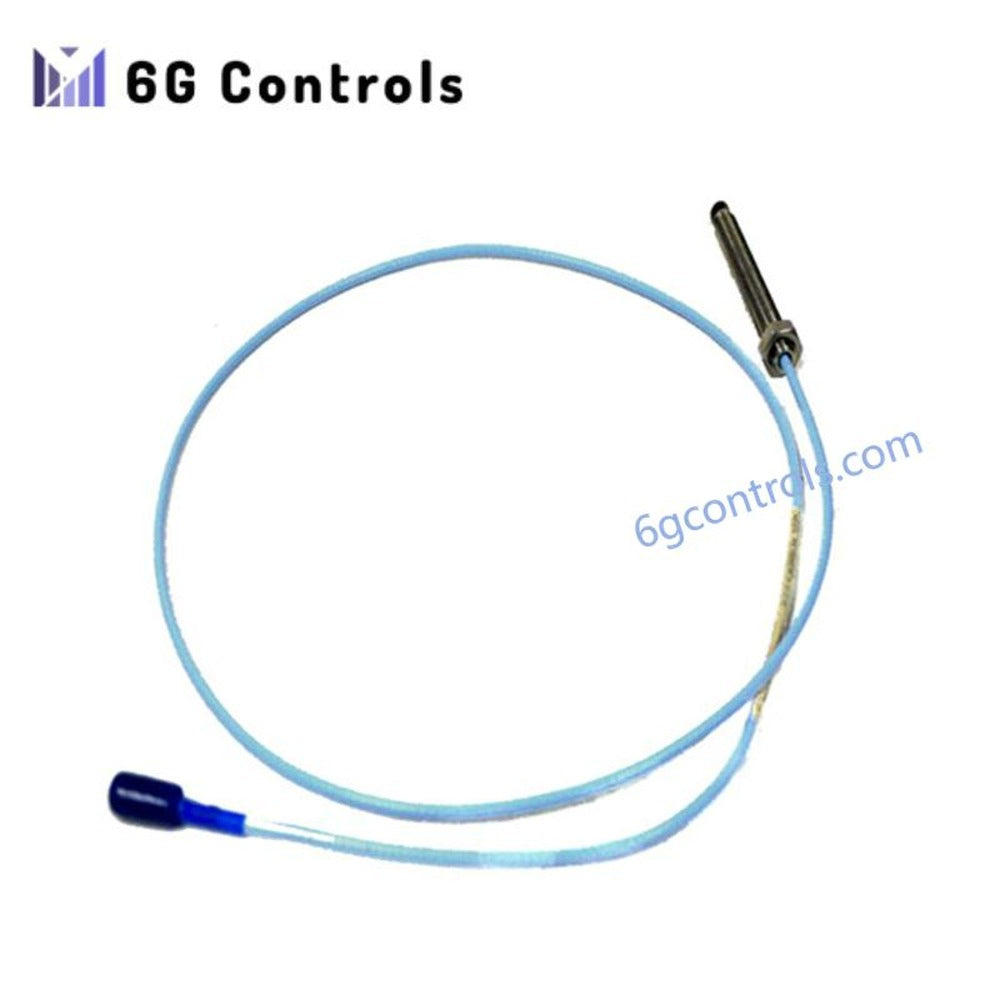

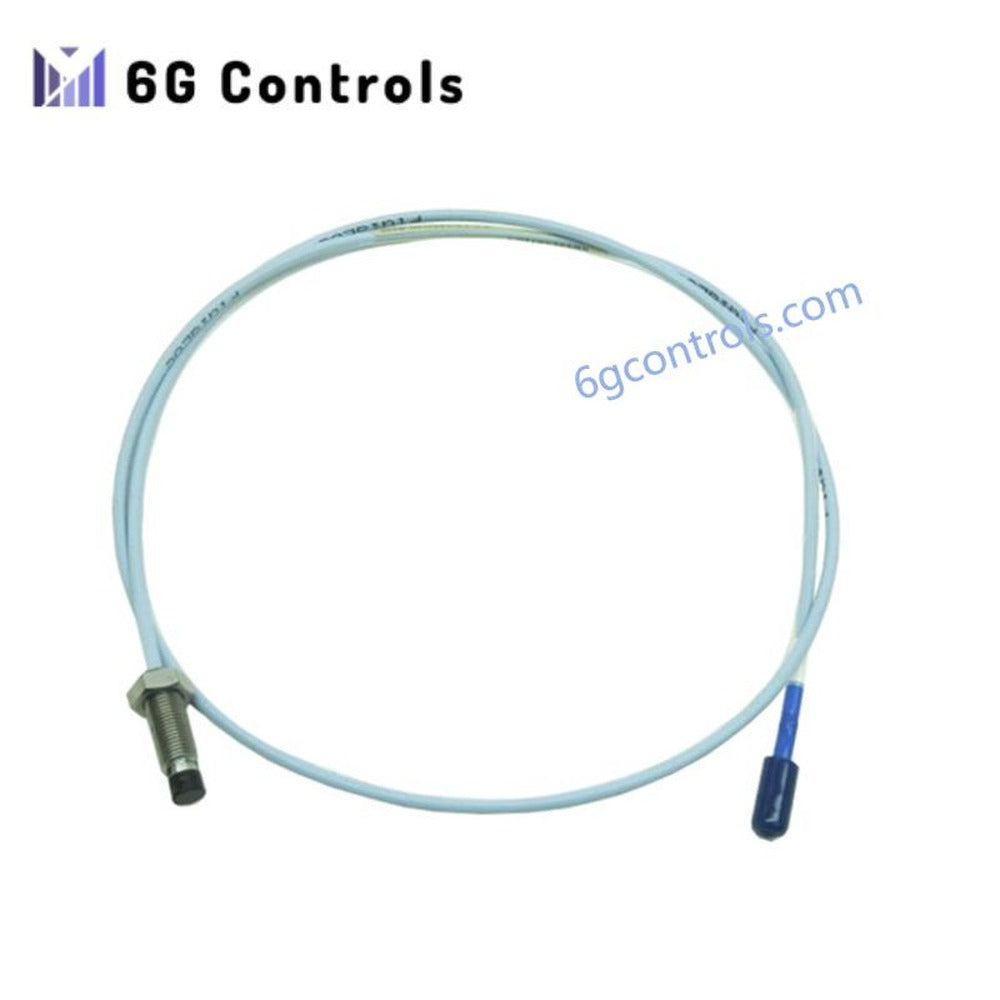

Bently Nevada 330905-00-10-05-02-CN Proximity Probe

Product Overview

The Bently Nevada 330905-00-10-05-02-CN is a 5 mm Proximity Probe, part of the 3300 XL Proximity Transducer System. It delivers precise, non-contact measurement of shaft displacement and vibration for critical rotating machinery. Designed for continuous monitoring, this probe ensures reliable operation in harsh industrial environments. Moreover, it integrates seamlessly with Proximitor® Sensors and extension cables, forming a complete system for accurate vibration and displacement detection.

Key Features & Benefits

• Provides high-precision shaft displacement and vibration measurements for predictive maintenance.
• Rugged stainless steel housing ensures durability in demanding industrial conditions.
• Miniature ClickLoc connector prevents accidental disconnection, simplifying installation.
• Wide operating temperature range from –51 °C to +177 °C supports extreme environments.
• Compatible with extension cables and Proximitor® Sensors to form a complete transducer system.
• Compact 5 mm probe tip allows installation in tight spaces without compromising performance.

Technical Specifications

• Probe Tip Diameter: 5 mm
• Probe Length: 100 mm
• Thread Size: M10 × 1
• Integral Probe Cable: 1.0 m
• Extension Cable: 5.0 m
• Total Cable Length: 6.0 m
• Nominal Range: 2.0 mm (80 mils)
• Linear Range: 0.25 mm to 2.0 mm (10 to 80 mils)
• Scale Factor: 7.87 V/mm (200 mV/mil) ±5%
• Frequency Response: 0–10 kHz (±3 dB)
• Output Signal: −4 VDC to −20 VDC
• Operating Temperature: −51 °C to +177 °C
• Weight: 0.1 kg
• Material: Stainless steel probe housing
• Environmental Rating: IP67

Typical Applications

• Turbines, compressors, and pumps in power plants and industrial facilities.
• Motors and rotating machinery requiring precise shaft vibration monitoring.
• Predictive maintenance programs for critical industrial assets.
• Integration with Bently Nevada 3300 XL Proximitor® Sensors for full system monitoring.

FAQ

Q: What is the compatible system for this probe? A: It works with the Bently Nevada 3300 XL Proximity Transducer System, including Proximitor® Sensors and extension cables.

Q: What environments can this probe operate in? A: It operates reliably from −51 °C to +177 °C and is rated IP67 for dust and water protection.

Q: Can it measure both vibration and displacement? A: Yes, it provides non-contact measurement of both shaft vibration and displacement.

Q: How is the probe installed? A: The probe uses an M10 × 1 threaded housing and a ClickLoc connector for secure, simple installation.
