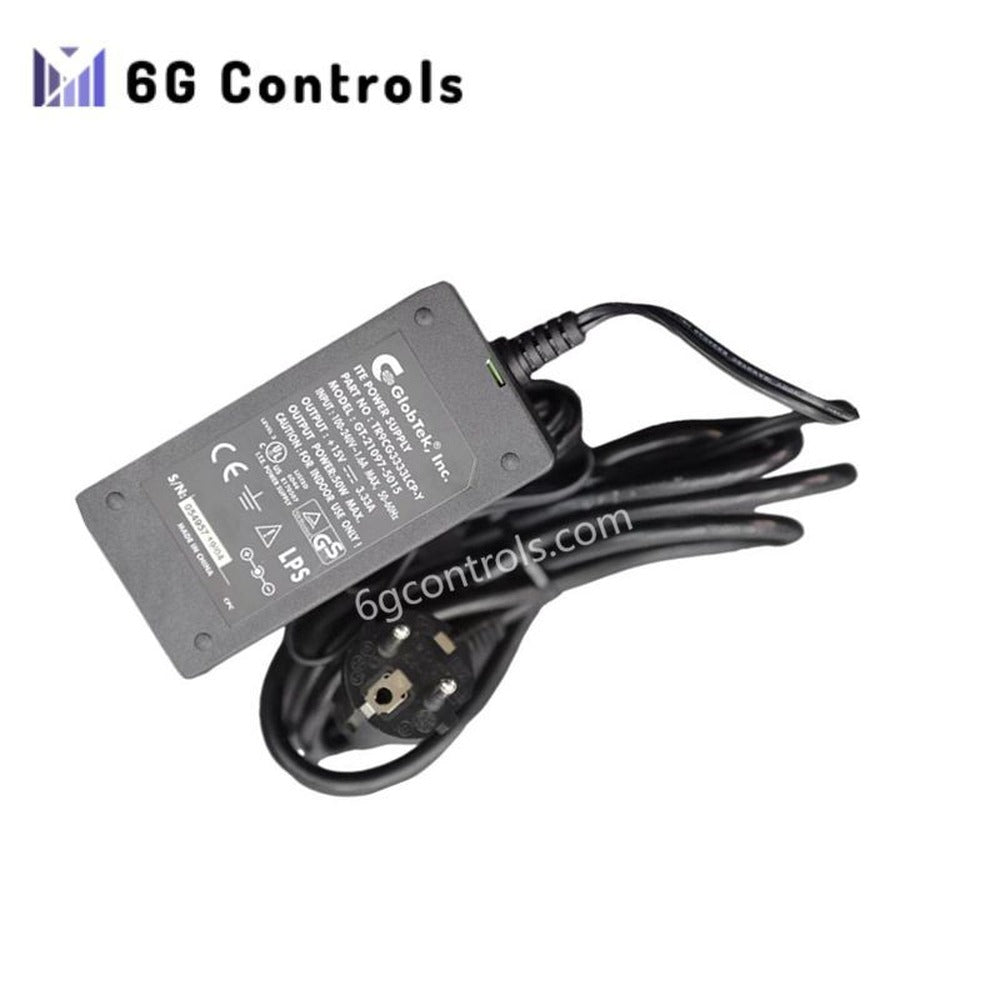

CSI GT-21097-5015 Power Supply Adapter High Quality

Overview

The CSI GT-21097-5015 is a compact, high-efficiency AC-DC switchmode power supply. It delivers 15V DC at 3.3A, supporting up to 49.5W of output power. Engineers use it in ICT and ITE systems where reliability and stability are essential. Its universal AC input, strong protection features, and rugged design ensure consistent performance in demanding industrial environments. Additionally, it meets global safety and environmental standards, making it suitable for worldwide applications.

Technical Specifications

Model Number: GT-21097-5015
Type: Regulated Switchmode AC-DC Power Supply Adapter

Input

• Input Voltage: 100–240V AC, 50–60Hz
• Max Input Current: 1.6A
• Inrush Current: 20A max at 240V AC (cold start)

Output

• Output Voltage: 15V DC
• Output Current: 3.3A
• Power Rating: 49.5W
• Voltage Regulation: ±5% at output connector
• Line Regulation: ±1% typical at full load
• Ripple: ±1% peak-to-peak of output voltage

Performance

• Turn-On Delay: 1 second typical
• Hold-Up Time: 10 ms typical at full load
• Switching Frequency: 100 kHz typical

Protection Features

• Over-Voltage: Crowbar method
• Short Circuit: Hiccup mode with auto recovery
• Over-Load: Hiccup mode with auto recovery

Electrical Isolation

• Dielectric Strength: 4242 VDC (primary to secondary)
• Leakage Current: <500 µA at 240V AC

Environmental Conditions

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 80°C
• Humidity: 0% to 90% RH (non-condensing)

Mechanical

• Enclosure Material: High-impact 94V0 polycarbonate plastic (non-vented)
• Dimensions: 118 × 60 × 33 mm
• Weight: 0.9 kg

Compliance and Reliability

• Certifications: FCC, CE, RoHS, WEEE, GOST-R, China RoHS
• MTBF: >200,000 hours at 25°C
