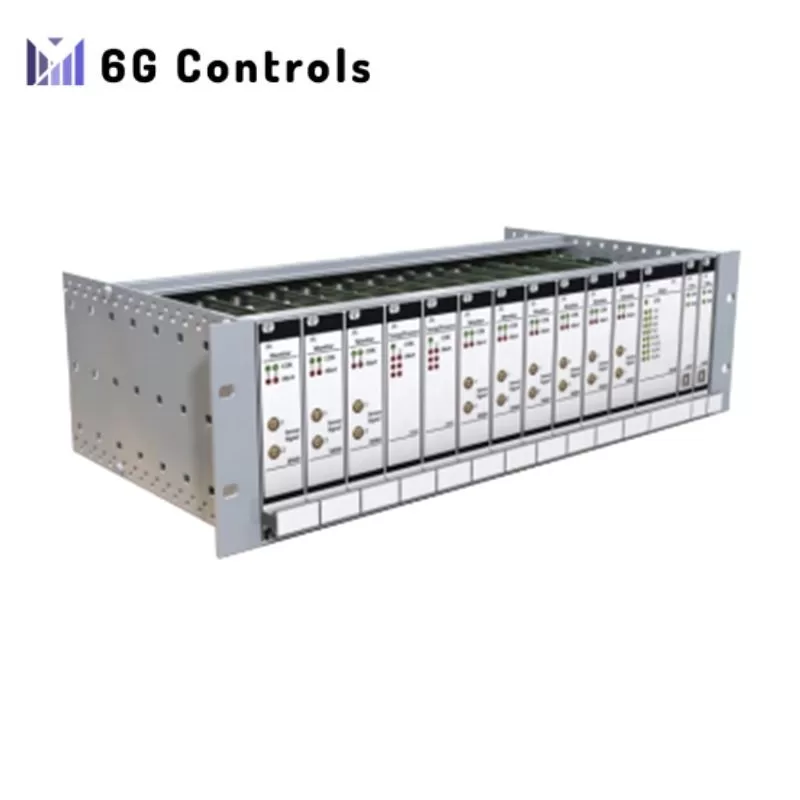

Emerson AMS6500ATG AMS 6500 ATG Protection And Prediction System

Overview:

The Emerson AMS 6500 ATG is an advanced protection and prediction system for critical rotating machinery. It combines asset protection with predictive maintenance to safeguard your valuable equipment.

Key Features and Benefits

Combined Protection and Prediction The AMS 6500 ATG integrates both protection and prediction functions. This proactive approach helps identify potential issues before they become costly failures.

Easy Replacement Designed as a direct replacement for older systems, the AMS 6500 ATG fits seamlessly into your existing infrastructure. This minimizes downtime and reduces installation costs.

Flexible Configuration The system features configurable cards. Tailor the AMS 6500 ATG to meet your specific needs, acquiring precise data for protection and prediction.

Embedded OPC Server An embedded OPC server facilitates integration with other plant systems. This enables efficient data sharing and analysis.

Mobile App The AMS 6500 ATG mobile app offers real-time access to asset health data. Monitor equipment and respond to alerts from anywhere on your plant network.

Predictive Diagnostics Advanced predictive diagnostics include PeakVue technology, order analysis, and band analysis. These features help detect potential problems early.

Compatibility The AMS 6500 ATG integrates with Emerson's AMS Machinery Management software. This adds advanced analysis capabilities.

Technical Specifications

• Analog Channels: Up to 44 (2 full ATG racks)
• Tachometer Channels: Same as analog channels
• Sampling Rate: 48kHz
• ADC Resolution: 24-bit/18.75kHz
• Resolution Lines (via Modbus): 400
• Waveform Samples (via Modbus): 1024
• Input Types: Refer to A6500-UM technical specifications
• Channel Scanning: Simultaneous scanning of 2 to 44 channels
• High-Frequency Detection: PeakVue, PeakVue waveform (OPC-UA, Modbus TCP)
• Communication with AMS Machinery Management Software: Ethernet (data transfer service to database)
• Other Applications: Communication via OPC UA, Modbus TCP/IP, or Modbus RTU
• Configuration Software: Machine Studio with an intuitive user interface
• Mobile App: ATG View for asset health data access

Applications

The AMS 6500 ATG is ideal for:

• Steam turbine generators
• Gas turbines
• Boiler feed pumps
• Offshore compressors
• Pipeline turbo compressors
• Chemical industry compressors
• Turbo exhausters
• Blowers
