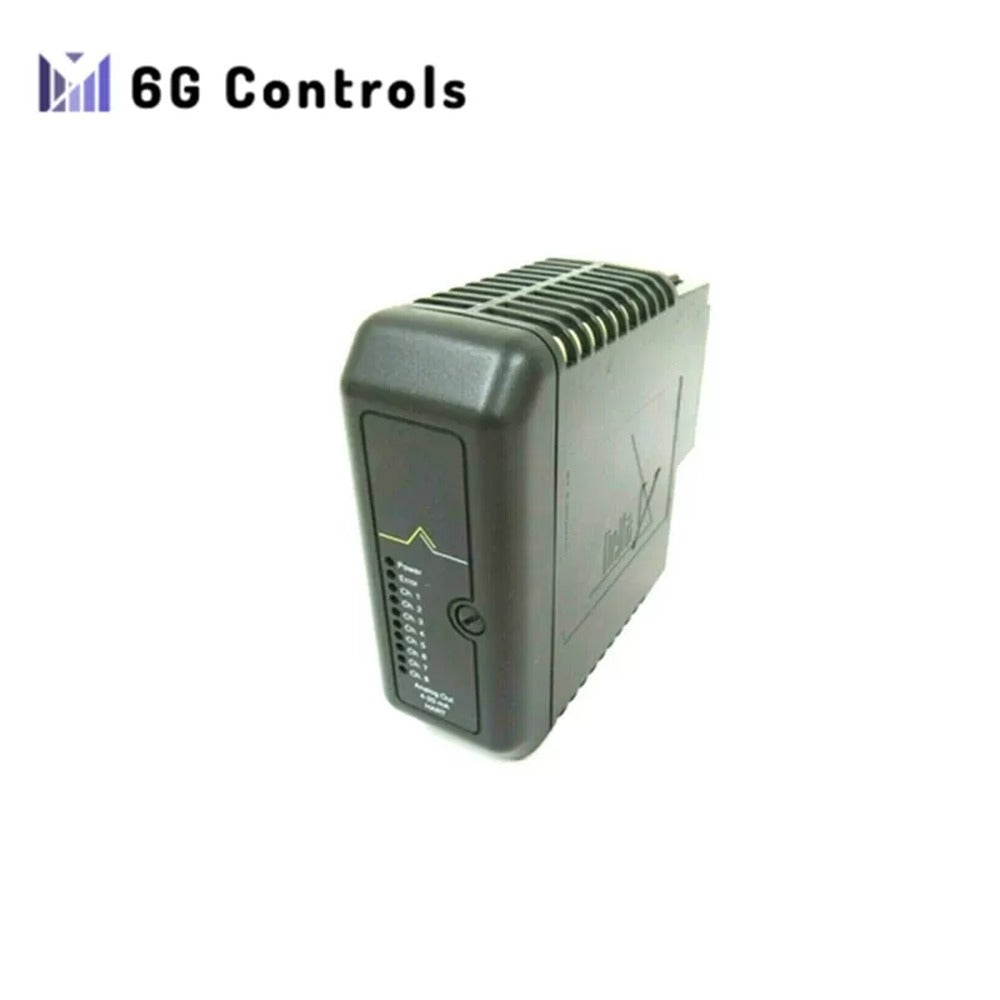

Emerson DeltaV KJ4002X1-BE1 Top Extender Cable Assembly

Overview:

Power Specifications:

• LocalBus Circuit Power: 12.6 VDC at 15 A

Environmental Specifications:

• Ambient Temperature: -40 to 70°C
• Shock: 10g ½ Sinewave for 11 msec
• Vibration:
  • 1mm Peak to Peak from 5 to 16Hz
  • 0.5g from 16 to 150Hz
• Airborne Contaminants: Compliant with ISA-S71.04 –1985 Airborne Contaminants Class G3
• Relative Humidity: 5 to 95% Non-Condensing
• IP Rating: IP 20

Notes and Warnings:

1. Product Label: Refer to the label for the serial number, location, and date of manufacture.
2. Hazardous Area Installation:
   • Follow specific instructions in document 12P2046 "DeltaV ™ Scalable Process System Zone 2 Installation Instructions".
   • Additional instructions can be found in the "Installing Your DeltaV Automation System" manual.

Removal and Insertion:

• Power Down Requirement:
  • The unit must not be removed or inserted with the system power energized.
  • Ensure the power is de-energized before disconnecting any carriers or LocalBus Extender cables.
  • The product must not be unplugged unless the system is de-energized or the area is confirmed to be safe.
• Interconnection Limit:
  • Total length of I/O carriers and LocalBus Extenders must not exceed 6.5 meters.
  • Interconnecting cables between enclosures must be placed in a conduit.

Maintenance and Adjustment:

• User Serviceable Parts: This unit contains no user serviceable parts and should not be disassembled.
• Calibration: Not required.
