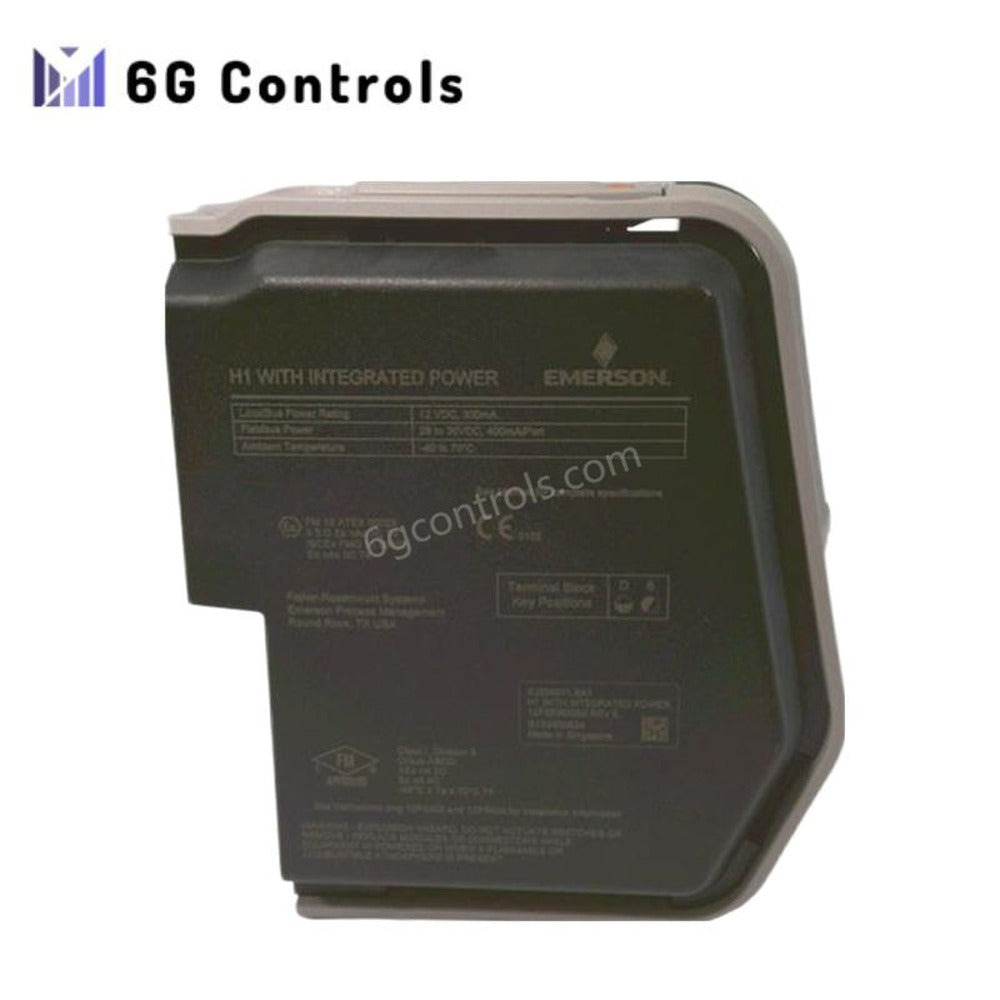

Emerson KJ3246X1-BA1 S-Series H1 with Integrated Power

Overview

The Emerson KJ3246X1-BA1 is an S-Series H1 Module with Integrated Power. It provides both communication and power over a single Fieldbus connection. Designed for hazardous environments, it ensures dependable performance in critical automation systems. Moreover, its rugged design and strict compliance with industrial standards make it suitable for harsh conditions and mission-critical operations.

Technical Specifications

Model Number: KJ3246X1-BA1
Type: S-Series H1 Module with Integrated Power
Manufacturer: Emerson

Power Specifications

• LocalBus Power Rating: 12 VDC at 300 mA

• Field Circuit Power Rating: 28 to 30 VDC at 400 mA per port

Environmental Specifications

• Operating Temperature: -40°C to +70°C

• Shock Resistance: 10g, 1/2 sine wave for 11 ms

• Vibration Resistance: 1 mm peak-to-peak (2–13.2 Hz); 0.7g (13.2–150 Hz)

• Humidity Range: 5% to 95%, non-condensing

• Airborne Contaminants: Complies with ISA-S71.04-1985, Class G3

Additional Info

• Terminal Block Key Position: D6
