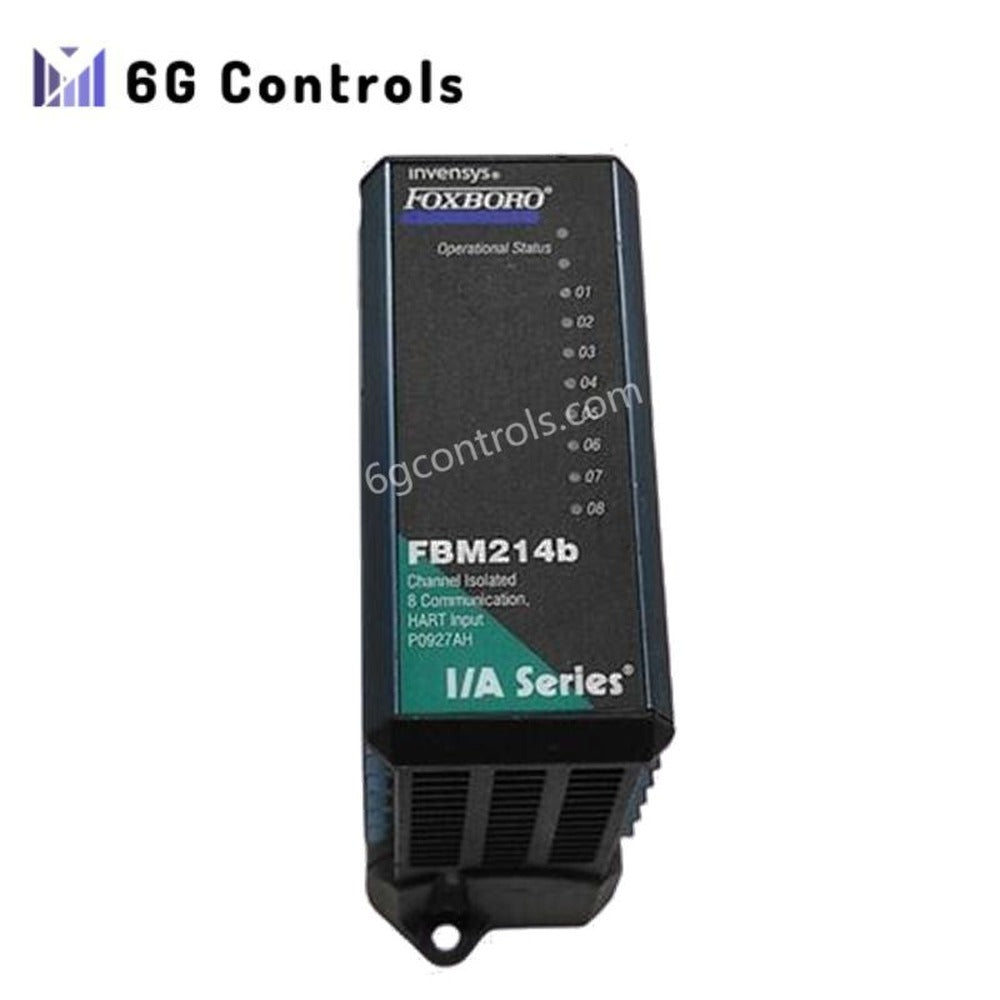

FOXBORO FBM214b RH927AH HART Input Module Brand New

Overview

The FOXBORO FBM214b RH927AH is a HART-enabled analog input module built for demanding industrial environments. It offers eight individually isolated analog channels, each capable of handling both standard 4–20 mA signals and HART digital communication. Designed for precision and reliability, it suits applications requiring real-time diagnostics, configuration, and accurate process data acquisition.

Technical Specifications

Channel Configuration

Channels: 8 isolated analog input channels
Each channel operates independently for enhanced signal integrity

Supported Signals

Analog: Standard 4–20 mA loop current
Digital: HART FSK signal superimposed on the 4–20 mA loop

Communication

Modems: One FSK modem per input channel
Enables bi-directional HART communication for device status and setup

Analog Conversion

Type: Sigma-delta ADC
Resolution: 15-bit for precise measurements
Accuracy: ±0.03% to ±0.05% of full scale
Update Rate: 100 ms per channel
Integration Time: 500 ms to reduce signal noise
Sense Resistor: 61.5 Ω nominal

Power and Isolation

Power Supply:
- Individually isolated power per channel
- Option for external loop power
Isolation: Full galvanic isolation per channel for safety and noise immunity
