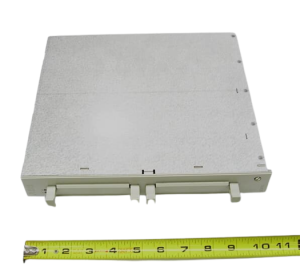

FUJI NP1L-AS2 Communication Module Most Favorable

Overview

The Fuji NP1L-AS2 is a compact, high-performance communication module. It belongs to Fuji Electric’s MICREX-SX series for industrial automation. The module supports AS-interface (AS-i) protocol version 2.1. It enables fast and reliable data exchange between PLCs and field devices. This design improves communication efficiency in distributed control systems. With its rugged build and DIN rail mounting, it suits harsh industrial use. Its built-in digital I/O channels reduce wiring and simplify integration.

Technical Specifications

Communication

• Protocol: AS-interface (AS-i) V2.1

• Data Rate: 167 kbps

• Supported Slaves: Up to 31 nodes

Power

• Supply Voltage: 24 V DC

• Current Consumption: Max 100 mA

• Power Dissipation: 2.4 W

Input/Output

• Digital Inputs: 4 points

• Digital Outputs: 4 points

• Input Voltage: 20.4 to 28.8 V DC

• Output Current: 0.5 A per point

Environmental

• Operating Temperature: 0°C to 55°C

• Storage Temperature: -25°C to 70°C

• Humidity: 30% to 95% non-condensing

Physical

• Dimensions: 90 mm x 65 mm x 82 mm

• Weight: 0.2 kg

• Mounting: DIN rail
