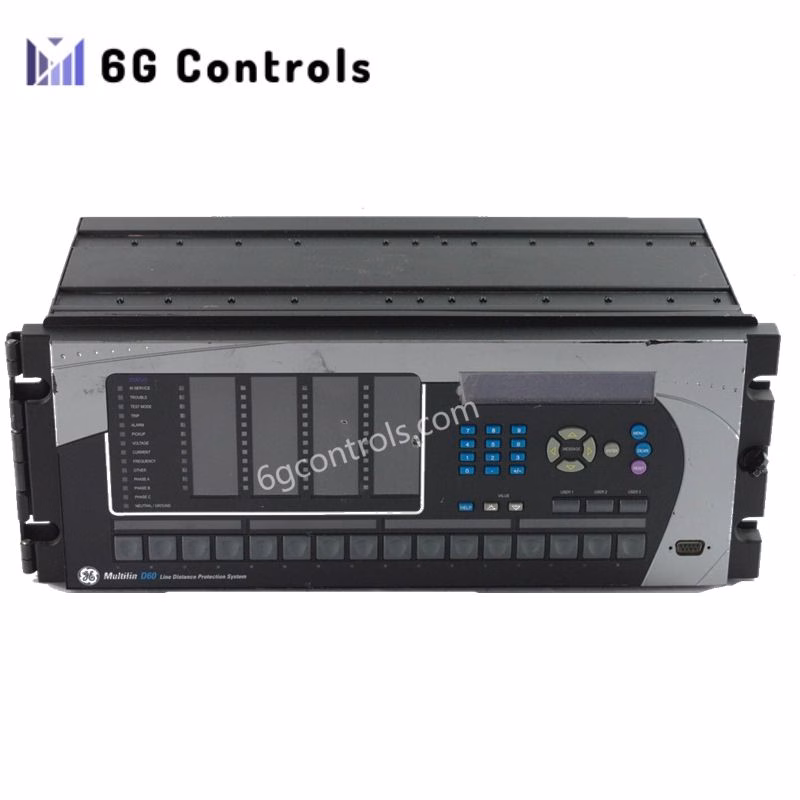

GE D60-U03-HKH-F8L-H6P-M6C-P6D-UXX-WXX Distance Protection Relay

Overview

The GE D60-U03-HKH-F8L-H6P-M6C-P6D-UXX-WXX is a high-performance distance protection relay. It protects transmission lines and cables effectively. The device combines protection, control, communication, and monitoring in a single unit. It ensures reliable operation in tough power system environments.

Technical Specifications

Model Number: D60-U03-HKH-F8L-H6P-M6C-P6D-UXX-WXX
Type: Distance Protection Relay
Manufacturer: GE Multilin

Power Supply:

• 125/250 V AC/DC with redundant supply

Communication Ports:

• 3 Ethernet ports (RJ-45)
• Multiple RS485 and fiber-optic connections

CT/VT Inputs:

• 4 CT / 4 VT with enhanced diagnostics

I/O Modules:

• 6 Form-C outputs
• 6 Fast Form-C outputs
• 4 digital inputs
• 6 Form-A current outputs with optional voltage monitoring

Environmental Range:

• Operating Temperature: -40°C to +70°C
• Humidity: 0–95%, non-condensing

Additional Features:

• AC Voltage Conversion Range: 1 to 275 V
• Breaker Failure Mode: 1-pole, 3-pole
• DCMA Input Type: Passive
• Ground Distance Directionality: All zones reversible
• Negative Sequence IOC Overreach: < 2%
