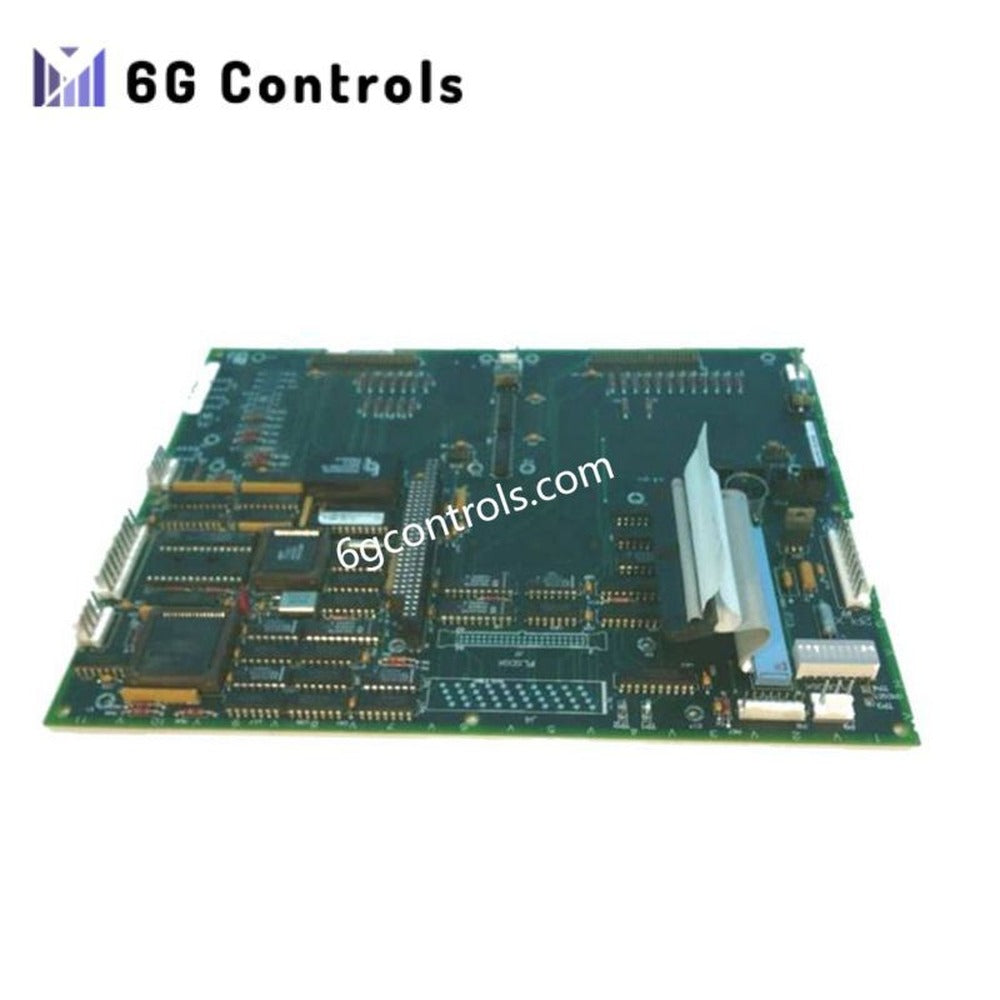

GE DS215TCQAG1BZZ01A | Mark V Speedtronic TCQA Analog I/O Module

14 in stock

Manufacturer: General Electric
Product No.: DS215TCQAG1BZZ01A
Product Type: TCQA Analog I/O Board
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.39 kg
Dimensions: 262 × 185 × 39 mm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Product Overview

The DS215TCQAG1BZZ01A is a high-precision analog input/output module engineered for GE Mark V Speedtronic turbine control systems. This TCQA-series board acquires, conditions, and transmits analog process signals—including temperature, pressure, flow, and vibration—ensuring reliable data delivery to turbine control logic. Its embedded firmware guarantees seamless integration and stable performance within Mark V R/S/T cores.

Designed for demanding turbine environments, the module supports real-time signal monitoring and control, contributing to turbine protection, operational efficiency, and alarm management.

Key Features

Signal Conditioning: Converts raw analog sensor data into accurate, usable inputs for turbine logic.
High-Speed Data Acquisition: Captures critical process parameters and communicates them instantly to the control system.
Integrated Firmware: Ensures compatibility, diagnostics, and consistent operation with Mark V systems.
System Integration: Compatible with R/S/T cores to manage mixed analog input/output signals.
Diagnostics: Monitors signal integrity and identifies faults to enhance system reliability.

Technical Specifications

Attribute	Specification
Manufacturer	General Electric
Product Series	Mark V Speedtronic
Model / Part Number	DS215TCQAG1BZZ01A
Functional Acronym	TCQA
Board Type	Analog Input/Output Module
Power Supply	24V DC
Communication Interfaces	RS-485, CAN, Modbus TCP/IP
Signal Processing	Analog-to-digital conversion and analog output control
Diagnostics	Real-time signal integrity verification
Connectors	High-density analog and digital I/O connectors
Dimensions	262 × 185 × 39 mm
Weight	0.39 kg
PCB Coating	Standard Coating
Functional Revision	Rev 1 B / Z
User Manual	GEH-6195
Operating Temperature Range	−40°C to +70°C

Applications

Gas and steam turbine monitoring and control systems
Acquisition and management of temperature, pressure, flow, and vibration signals
Turbine protection, alarm, and efficiency optimization
Integration with Mark V R/S/T cores for analog signal processing
