GE DS3800NHVL High Voltage Board Most Favorable

Overview

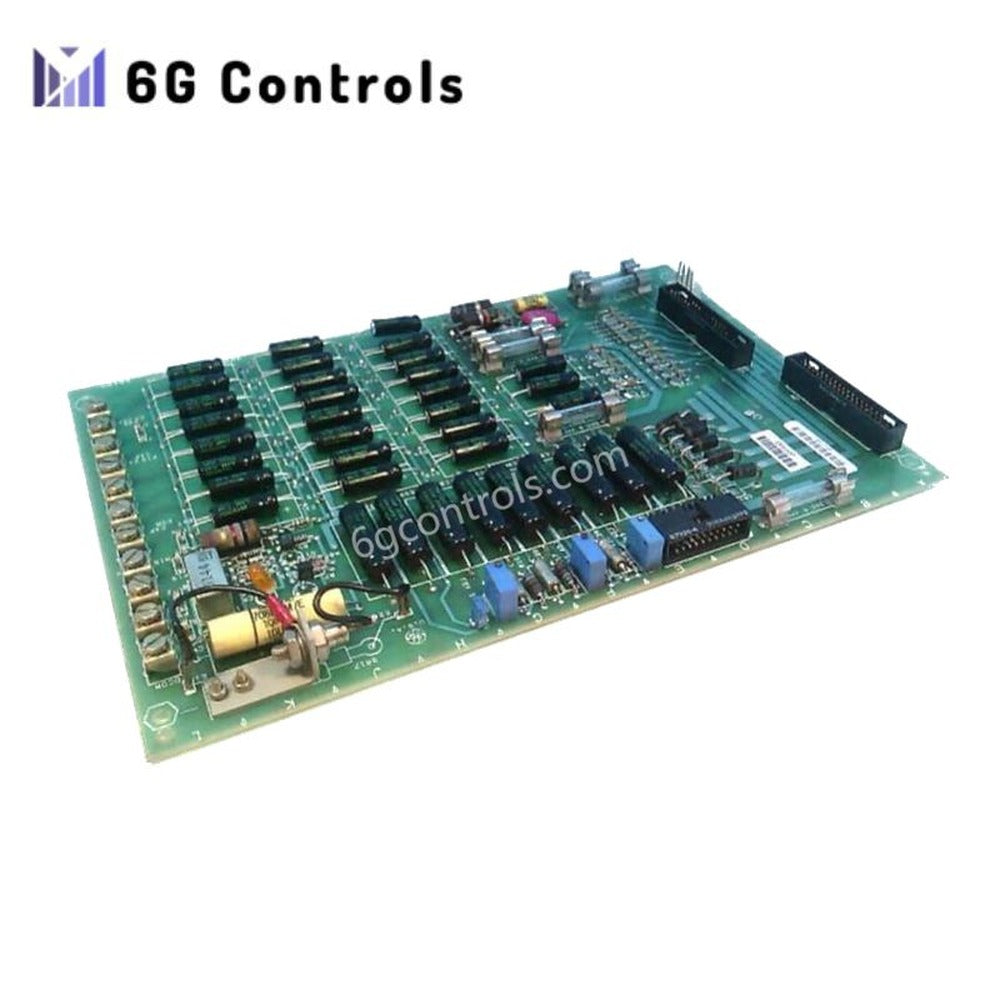

The GE DS3800NHVL is a High Voltage Board engineered for use in the GE Mark IV Speedtronic gas turbine control system. It manages high-voltage energy distribution and regulates power across turbine circuits. GE designed this board to ensure stable and efficient turbine performance under demanding industrial conditions. Furthermore, its rugged components and flexible mounting options support long-term reliability.

Technical Specifications

• Product Type: High Voltage Board
• Manufacturer: General Electric (GE)
• Model Number: DS3800NHVL
• System Compatibility: GE Mark IV Speedtronic Turbine Control System

Key Components

• Diodes:
  • 18 brown
  • 24 black/silver
  • 6 small grey
  • 14 medium grey
• Relays:
  • 6 relays manage controlled energy flow
• Capacitors:
  • 3 red circular
  • 6 large silver
  • 6 medium yellow
  • 6 large black
• Connection Terminals:
  • 8 white male terminals with 3-prong metal connectors
  • 1 blue male terminal
• Jumper Ports:
  • Adjustable using small cap-style jumpers

Installation and Environment

• Mounting Type: Rack-mounted or standalone; supports DIN rail installation
• Operating Temperature: -10°C to +55°C
• Storage Temperature: -40°C to +70°C
• Humidity Range: 5% to 95%, non-condensing
