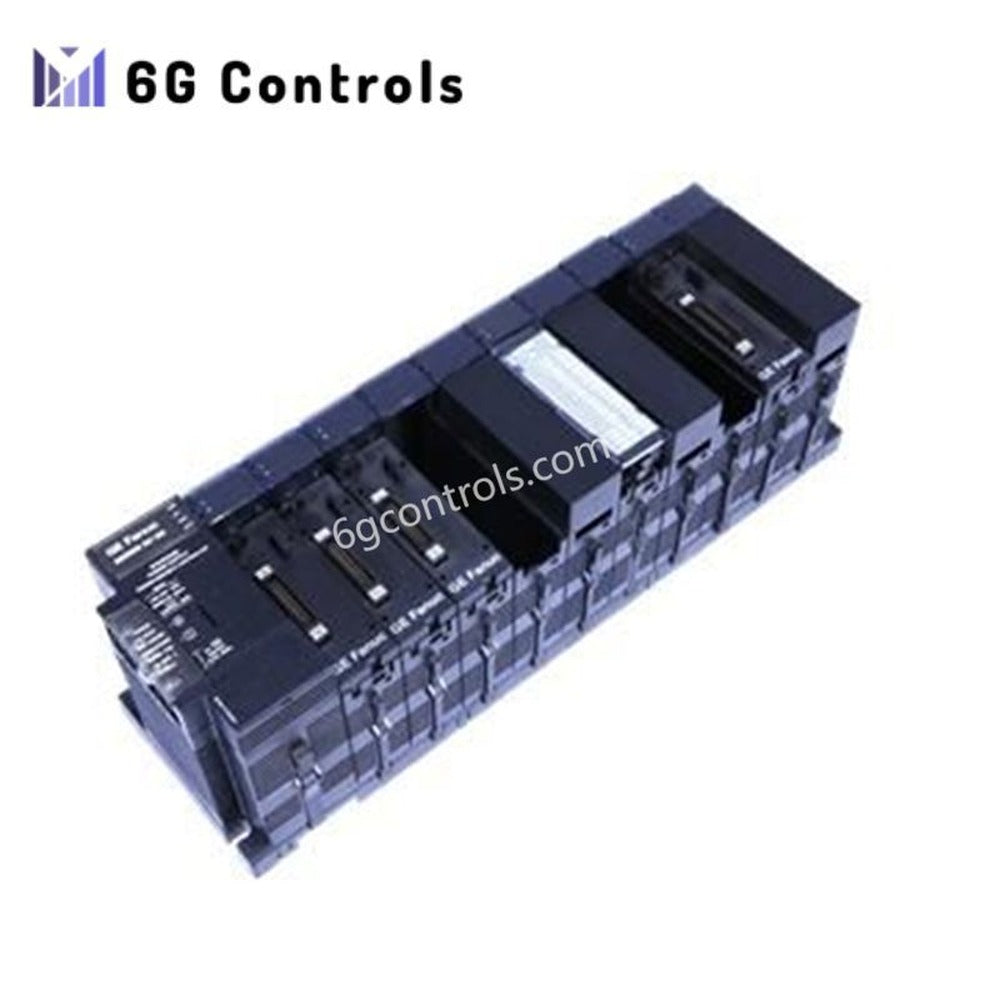

GE Fanuc D20EME 526-2102-000216 526-2100 PLC Module

The GE Fanuc D20EME 526-2102-000216 526-2100 is a high-performance programmable logic controller (PLC) module designed for GE Fanuc's Series 90-30 and Series 90-20 PLC systems. This module offers high/low limit checking for analog inputs and includes diagnostic LEDs to simplify troubleshooting. It integrates various I/O types, ensuring versatile system control and communication in industrial applications.

Technical Specifications

• Model Numbers: D20EME 526-2102-000216 526-2100

• Brand: GE Fanuc

• Type: Programmable Logic Controller (PLC) Module

• Series: Series 90-30, Series 90-20

• Functionality:

  • High/Low Limit Checking for analog inputs
  • Diagnostic LEDs for troubleshooting

• Connectors:

  • Multiple integrated circuits
  • Two female phone plugs
  • One three-pin female connector
  • Two light-emitting diodes (LEDs)

• I/O Types:

  • 8 Analog Inputs
  • 1 Incremental Encoder Input
  • 1 Absolute Encoder Input
  • 1 Analog Output
  • 20 Discrete Inputs
  • 1 Discrete Output
  • 8 Relay Outputs
  • 2 RS-485 Interfaces
  • 1 Brake Control Output

• Additional Features:

  • Twelve relays
  • Six metal oxide varistors for surge protection

• Certifications:

  • SWC
  • C37.990 EMI
  • RFI Interference Immunity

• Compatibility:

  • D20/D200 systems
  • D20ME modules

• Power Requirements:

  • +5V power, drawing 110mA
  • 5A system supply to support multiple cards

• Ethernet Capability:

  • MIC expansion for Ethernet connectivity
  • Supports three MIC types with dual channels

• Memory Expansion:

  • Increased memory capacity, varies by model (e.g., 526-2102-000216)

• Physical Characteristics:

  • Fits D20/D200 chassis
  • Weight: 500 grams
  • Manufactured in Canada

• Environmental Suitability:

  • Meets GE Fanuc industrial standards for harsh environments

• Additional Components:

  • MIC enables Ethernet connectivity
  • RS-232 interfaces support 5V devices
