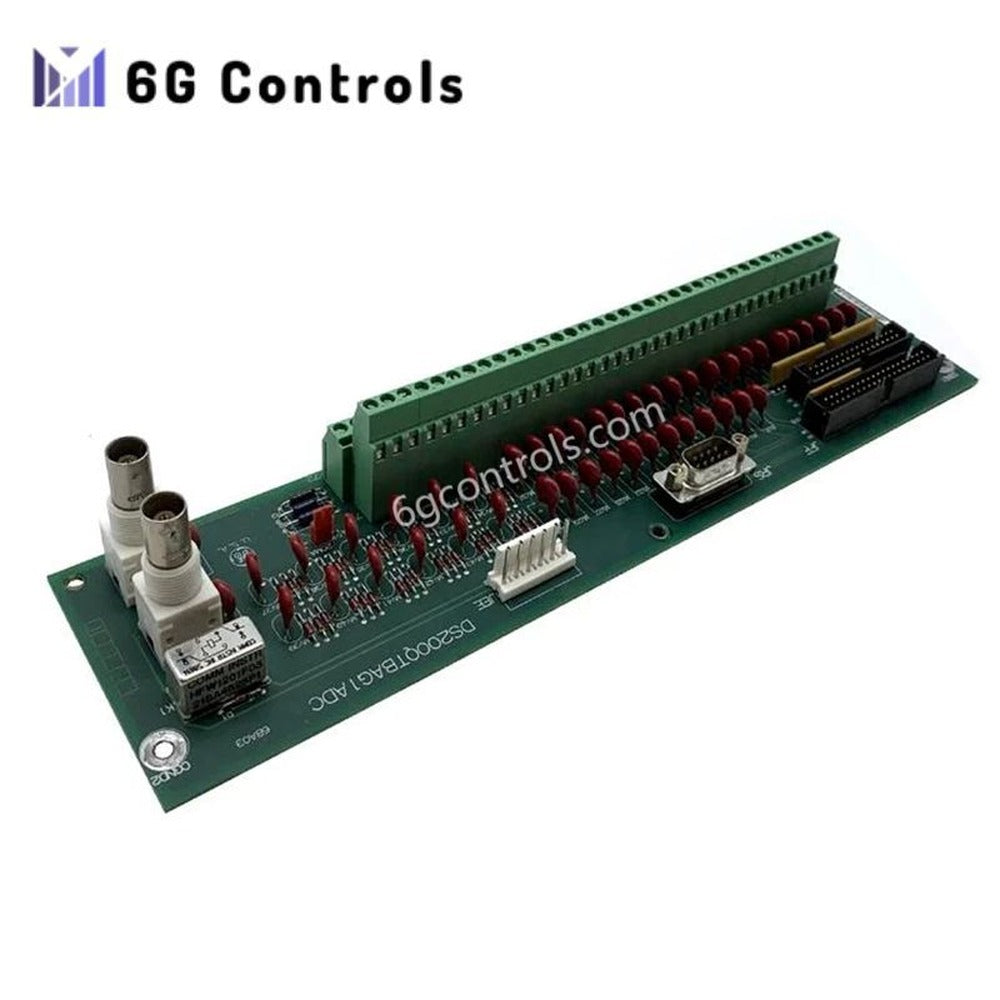

GE Fanuc DS200QTBAG1ADC RST Termination Board Brand New

The DS200QTBAG1ADC is an RST Termination Board manufactured by GE Fanuc. It was designed specifically for use in the Mark V Speedtronic turbine control system, providing essential signal termination and protection. This legacy product, though now obsolete, remains a crucial component in GE-compatible turbine systems, ensuring stable operation and reliable signal management.

Technical Specifications

• Model Number: DS200QTBAG1ADC

• Manufacturer: GE Fanuc

• Type: RST Termination Board

• Series: Mark V Speedtronic

• Number of Terminals:

  • 2 terminal blocks with 72 terminals each for signal wires

• Connectors:

  • 1 x 40-pin connector (ID: JFF)
  • 1 x serial connector

• Inputs:

  • 6 magnetic pulse rate inputs

• Outputs:

  • 8 servo value outputs

• Excitation Sources:

  • 6 excitation sources for LVDTs

• Configuration:

  • Core <R>, <S>, <T> in location 6

• Jumper Position:

  • Default at J1, set to 20mA

• Operating Temperature Range:

  • -40°C to +70°C

• Product Type: QTBA Terminal Board

• Revision: ADC

• Weight: 0.66 lbs

• Assembly Type: Normal Assembly

• Category: PLCs/Machine Control

• Subcategory: PC Board PLC/Add-On Board
