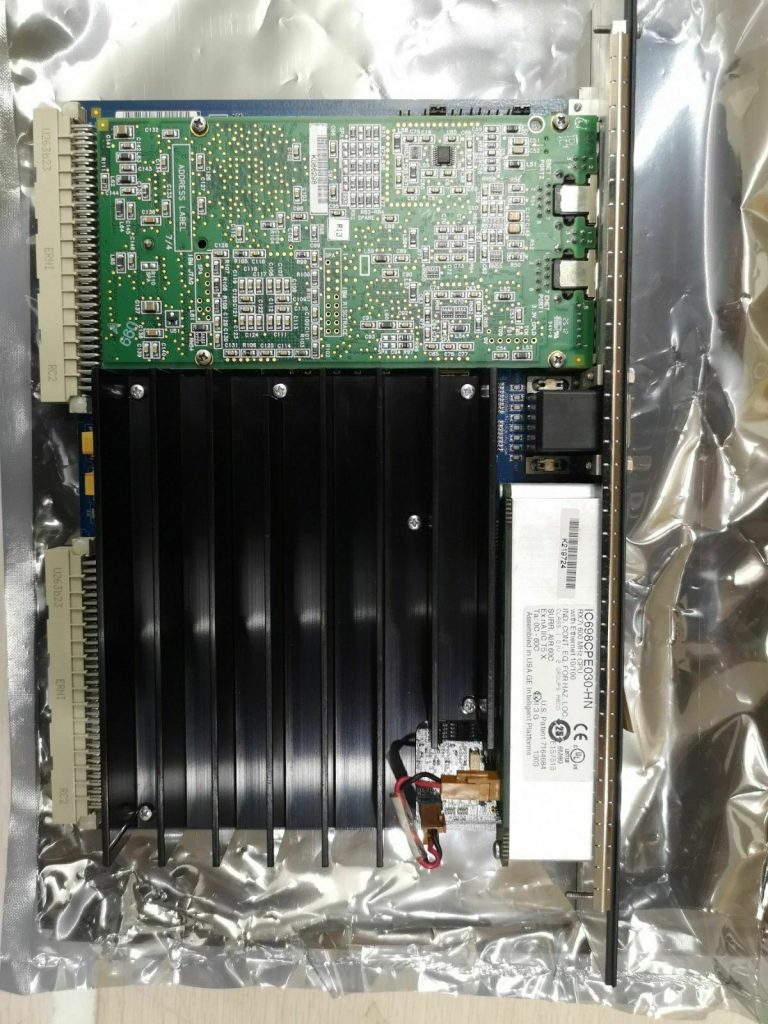

GE FANUC IC698CRE030 CPU Module Brand new in Stock

The GE FANUC IC698CRE030 is a PACSystems RX7i Central Processing Unit designed for real-time control of machines, processes, and systems. It communicates with I/O and smart option modules using the VME64 Standard format over a rack-mounted backplane. It features a 600MHz Pentium-M microprocessor with 64 MB of user memory and flash memory. Here are some key features and specifications of this unit:

Key Features:

1. Redundancy: Supports HSB (hot standby) redundancy for enhanced reliability.
2. Memory: Battery-backed user memory and non-volatile flash memory for program, configuration, register data, and symbolic variable storage. Bulk memory accessible via reference table %W.
3. Programming: Supports multiple programming languages including Ladder Diagram, C, Structured Text, and Function Block Diagram.
4. Symbolic Variables: Auto-located Symbolic Variables with unlimited memory.
5. Module Support: Compatible with 90-70 Series discrete and analog I/O modules, as well as VME modules.
6. Web Communication: Allows data monitoring across the web with a maximum of 16 web server/FTP connections.
7. Program Blocks: Supports up to 512 program blocks with a maximum block size of 128KB.
8. Serial Ports: Equipped with three isolated serial ports and supports serial port enabled firmware upgrades.
9. Ethernet Interface: Embedded Ethernet port for communication with the programmer and HMI devices. Enables EGD data exchange, TCP/IP communication services, station management, diagnostic tools, and time synchronization to the timeserver. Also supports a redundant IP for EGD exchange production.

Specifications:

• Power Requirements (CRE030):
  • +5 VDC: 3.2 Amps nominal
  • +12 VDC: 0.003 Amps nominal
  • -12 VDC: 0.003 Amps nominal
• Operating Temperature (CRE030): 0 to 50°C (32°F to 122°F)
  • 0 to 60°C (32°F to 140°F) with fan tray
  • 0 to 60°C (32°F to 140°F), fan tray required
• Boolean Execution Speed (CRE030): 0.069ms per 1000 Boolean contacts/coils
• Time of Day Clock Accuracy: Maximum drift of ±2 seconds per day
• Elapsed Time Clock Accuracy: ±0.01% maximum
• Embedded Communications: RS-232, RS-485, Ethernet interface
• Serial Protocols Supported: Modbus RTU Slave, SNP, Serial I/O
• Ethernet Ports: Embedded auto-sensing 10/100 Mbps half/full duplex Ethernet interface
• VME Compatibility: Designed to support the VME64 standard ANSI/VITA 1
• Memory:
  • %I and %Q: 32Kbits for discrete
  • %AI and %AQ: configurable up to 32Kwords
  • %W: configurable up to the maximum available user RAM
  • Managed memory (Symbolic and I/O variables combined): configurable up to 10 Mbytes
• Ethernet Interface Specifications:
  • Web-based data monitoring: Up to 16 web server and FTP connections (combined)
  • Ethernet data rate: 10Mb/sec and 100Mb/sec
  • Physical interface: 10BaseT RJ45
  • WinLoader support: Yes
  • Number of EGD configuration-based pages: 255
  • Time synchronization: SNTP
  • Selective consumption of EGD: Yes
  • Load EGD configuration from RX7i to programmer: Yes
  • Remote Station Manager over UDP: Yes
  • Local Station Manager (RS-232): Dedicated RS-232 port
  • Configurable Advanced User Parameters: Yes
