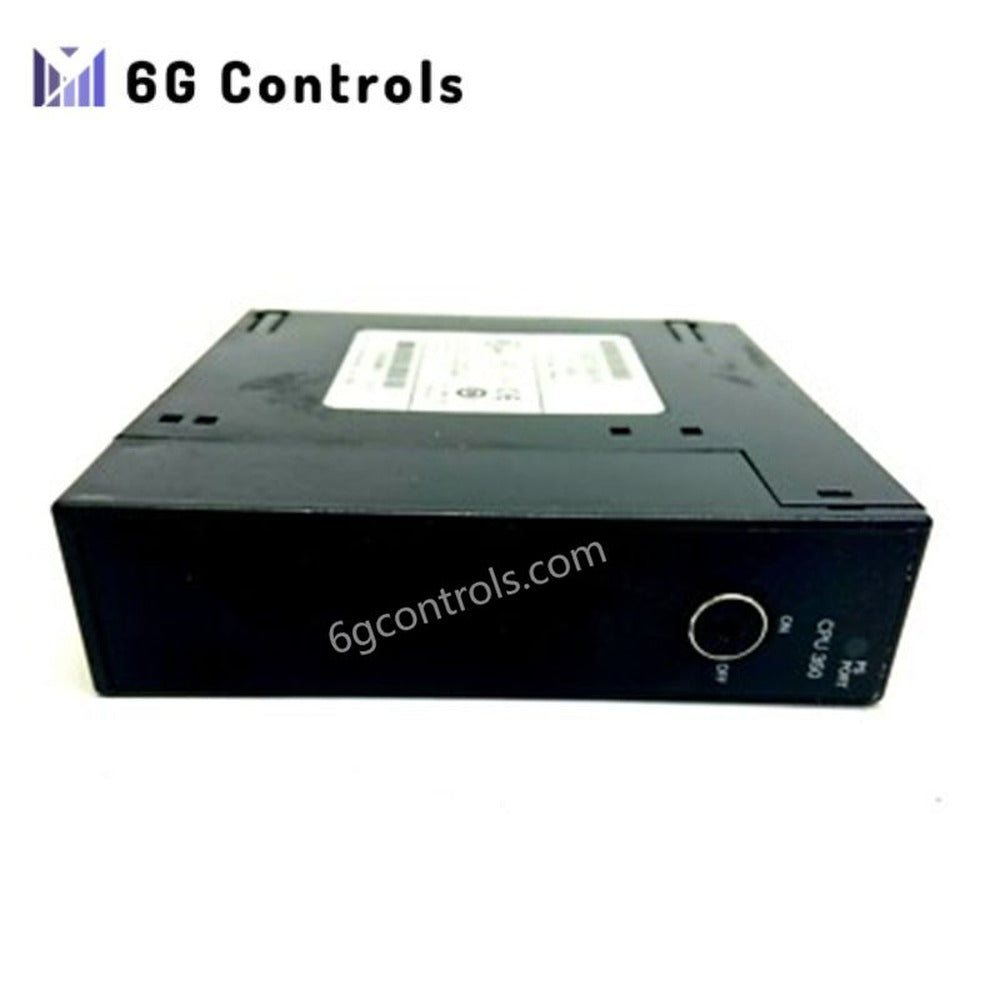

GE IC693PTM101 Power Transducer Module High Quality

Overview

The GE IC693PTM101 is a high-precision Power Transducer Module (PTM) designed for the Series 90-30 PLC system. It actively monitors voltage, current, power, and energy in both single-phase and three-phase systems. This module delivers real-time diagnostics, helping industries optimize energy consumption, implement load shedding, and perform demand management efficiently. Users benefit from its fast data processing speed, compact design, and compatibility with any Series 90-30 CPU module.

Technical Specifications

• Model: IC693PTM101
• Series: GE Fanuc Series 90-30
• Input Voltage Range: 10–120 VAC
• Input Current Range: 0–7.5 A RMS
• Frequency Range: 35–70 Hz
• Power Dissipation: 4 W max
• Backplane Power Consumption: 5 VDC @ 400 mA
• Resolution: 14-bit analog sampling
• Memory Allocation: %I: 16 bits, %Q: 16 bits, %AI: 25 words, %AQ: 2 words
• Isolation Voltage: 1500 V between backplane and PTM inputs
• Operating Temperature: −10°C to +55°C, 0–95% RH non-condensing
• Mounting: Any Series 90-30 baseplate
• Measured Parameters: Voltage, Current, kW, kVAR, kVA, kWH, kVARH, kVAH, Power Factor, Frequency, Phase
• Operating Modes: Single-phase, Three-phase, Synchro monitor mode
• Data Calculation Speed: 20 ms at 50 Hz, 16.67 ms at 60 Hz
• Module Components: Processing module, interface board, interface cable
