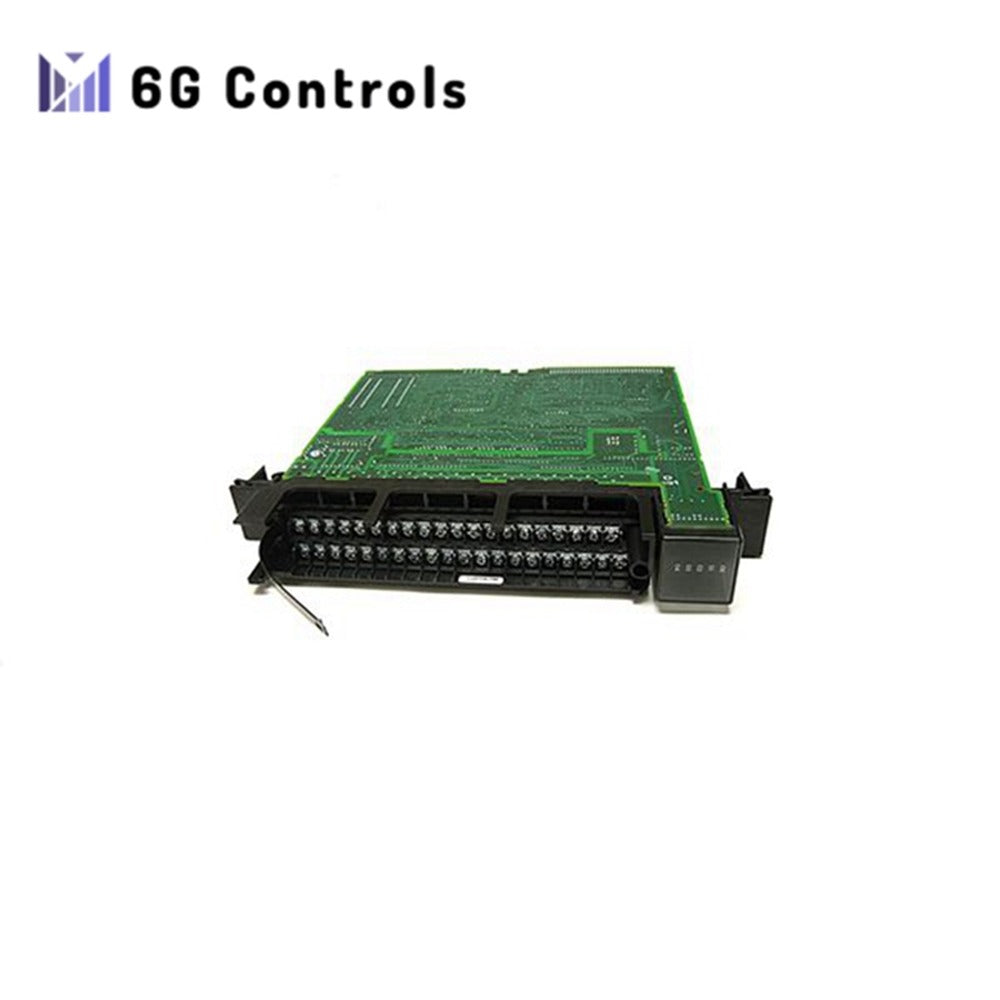

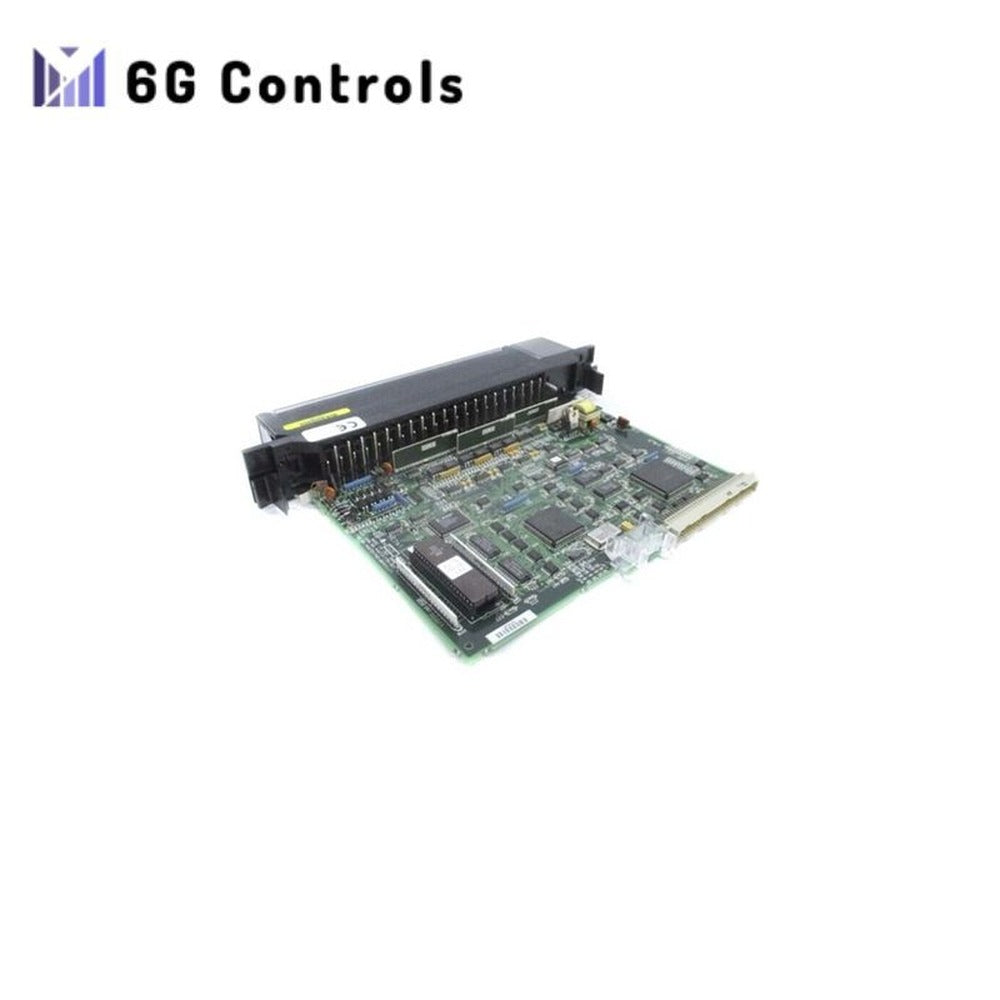

GE IC697HSC700 Series 90-70 High-Speed Counter (HSC) Module

Overview

The IC697HSC700 High-Speed Counter (HSC) Module by GE Fanuc for the 90-70 series offers robust features tailored for industrial applications requiring precise counting and control capabilities. Here's a breakdown based on the provided information:

Features:

• Module Type: High-Speed Counter
• Processing Speed: Up to 200 KHz
• Input Voltage Range: 5 VDC or 10 to 30 VDC
• Output Voltage Range: 30 VDC
• Input/Output Type: Positive Logic
• Power Consumption: 500mA @ 5VDC

Key Features:

• Slot Type: Single slot module
• Counter Types: A, B, C, D, E configurations available
• Inputs: 12 single-ended or differential inputs supporting TTL, non-TTL, and magnetic pickup thresholds
• Outputs: Four positive logic outputs with status LEDs
• Communication: Configurable via MS-DOS, Windows over Ethernet TCP/IP, or the SNP port
• Functions: Processes rapid pulse signals directly, suitable for applications like turbine flowmeter, meter proving, velocity measurement, material handling, and motion/process control
• Count Rates:
  • Types A-D: Up to 200 KHz (high frequency filter), 30 Hz (low-frequency filter)
  • Type E:
    • Up to 30 Hz (low-frequency filter)
    • Up to 200 KHz in Up/Down mode and 800 KHz in A Quad B mode (high-frequency filter)
• Optional Features: PLC ladder interrupt capability

Applications:

• Industrial Usage: Ideal for applications requiring precise counting and rapid signal processing such as flow measurement, speed detection, and control in various industrial processes.

Configuration:

• Ease of Use: User-friendly PLC interface for straightforward configuration and integration into existing systems.
• Compatibility: Works with compatible PCs for configuration via installed software.

Technical Specifications:

• Power Consumption: Operates efficiently with a consumption of 500mA at 5VDC, ensuring reliability in industrial environments.
