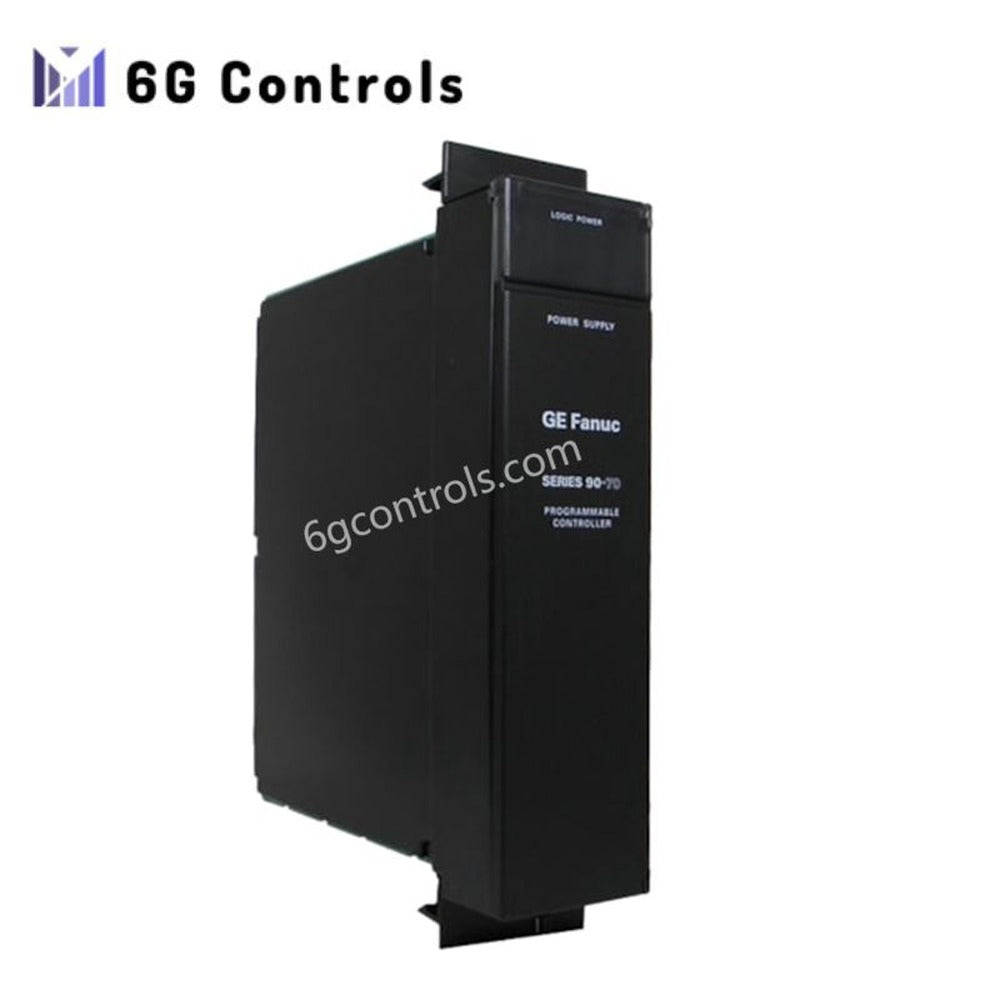

GE IC697PWR722 Power Supply Module Most Favorable

Overview

The GE IC697PWR722 is a high-efficiency 24 VDC power supply designed for the Series 90-70 programmable controller system. It provides stable and reliable DC power for both single-rack and dual-rack configurations, ensuring smooth operation in demanding industrial automation environments. The module supports multiple output voltages and advanced protection features, making it ideal for critical control applications.

Technical Specifications

• Series: GE Fanuc Series 90-70
• Part Number: IC697PWR722
• Type: Power Supply Module
• Input Voltage Range: 21 to 32 VDC
• Nominal Input Voltage: 24 VDC
• Input Power: 156 W max
• Output Power: 90 W max
• Output Voltages: +5 VDC @ 16.5 A, +12 VDC @ 1.5 A, −12 VDC @ 1 A
• Voltage Regulation: ±5% typical
• Overvoltage Protection: Activates at 6.55 ± 0.45 V on 5 V bus
• Overcurrent Protection: Electronic protection on all outputs
• Inrush Energy: 22 joules at 32 VDC
• Dual Rack Support: Yes, with IC697CBL700 cable (max 3 ft)
• Mounting Orientation: Vertical only (for convection cooling)
• Operating Temperature: 0°C to 60°C
• Shock Resistance: 15 G for 11 ms
• Weight: 3.0 lbs
