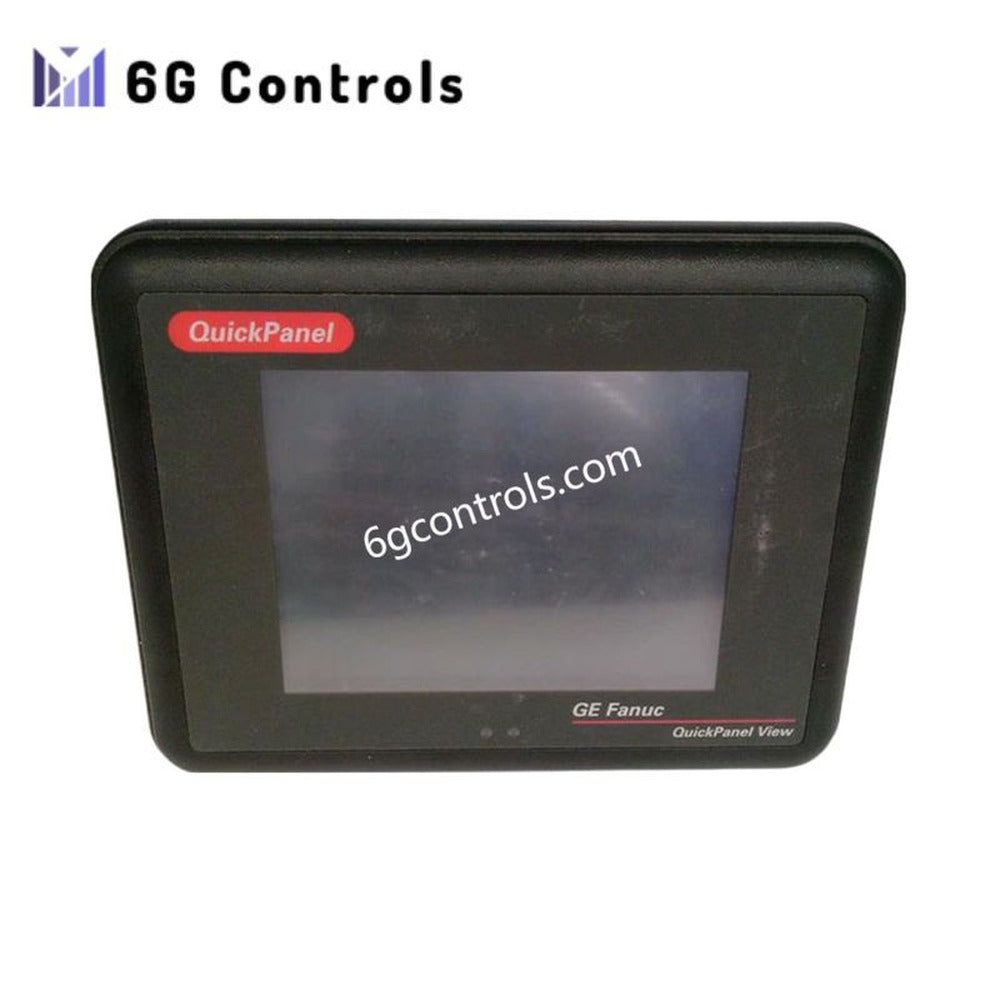

The GE Fanuc IC754VSB06MTD QuickPanel View Operator Terminal offers reliable human-machine interaction for industrial automation systems. Designed with a 6-inch monochrome touchscreen, it enables operators to monitor and control processes efficiently. Its compact design, coupled with a robust Intel XScale PXA255 200 MHz CPU, ensures responsive performance for diverse factory and process environments. Moreover, the device provides flexible communication through Ethernet, RS232, and RS485 ports, allowing seamless integration with existing control networks. Operating on a 24 VDC supply, this terminal combines durability with user-friendly interface functionality.
Key Features and Benefits
- Intuitive 6-inch resistive touchscreen enables precise operator input.
- Monochrome passive FSTN display offers clear visibility in industrial environments.
- Intel XScale PXA255 CPU at 200 MHz delivers reliable processing performance.
- Integrated memory includes 16 MB Flash, 16 MB DRAM, and 512 KB ROM for stable application storage.
- Dual communication ports (Ethernet and RS232/RS485) support flexible system integration.
- Compact and lightweight design (2 lbs) simplifies installation in tight control panels.
- Operates on 24 VDC with low power consumption of 12 Watts for energy-efficient operation.
Technical Specifications
- Manufacturer: GE Fanuc
- Product Type: Human Machine Interface (HMI)
- Product Line: QuickPanel View
- Part Number: IC754VSB06MTD
- Display Size: 6 inches
- Display Color: Monochrome
- Display Resolution: 320 x 240 pixels
- Display Type: Passive FSTN
- Processor: Intel XScale PXA255, 200 MHz
- Memory: 16 MB Flash, 16 MB DRAM, 512 KB ROM
- Input Type: Resistive touchscreen, 12-bit

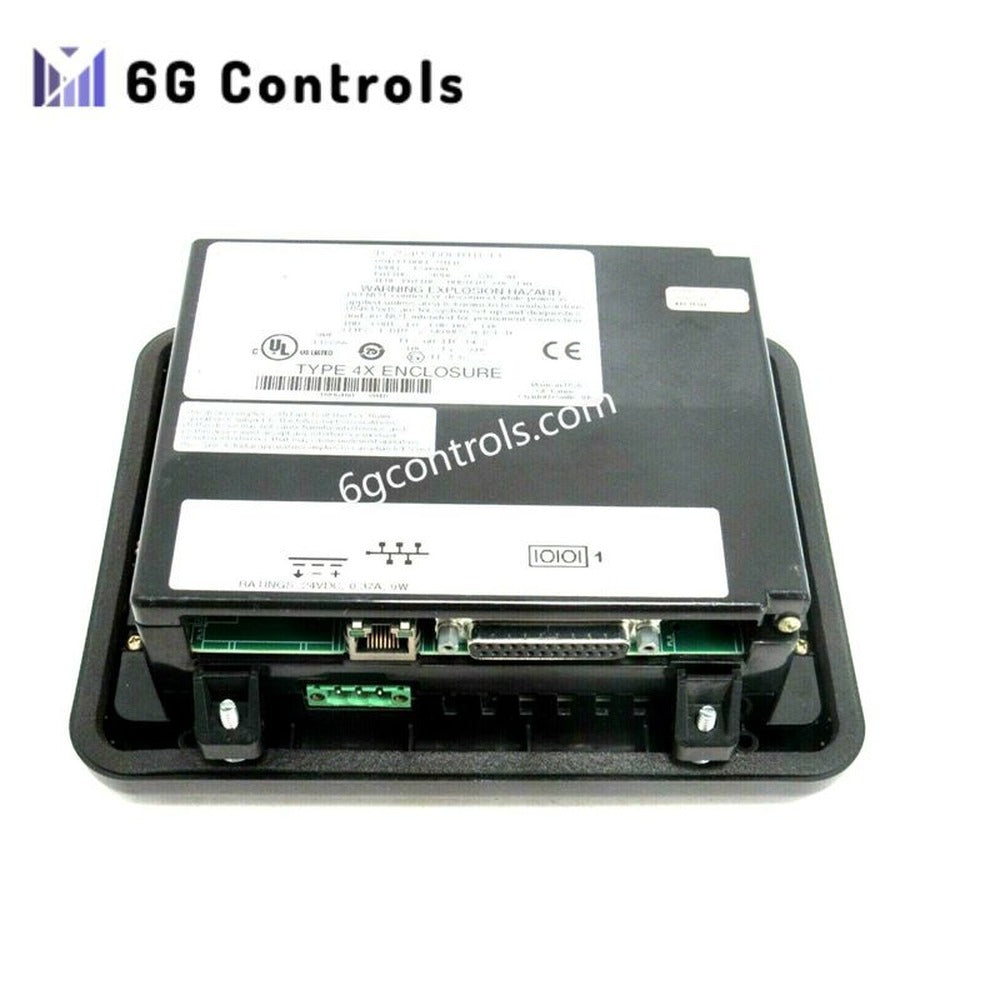

- Communication Ports: Ethernet, RS232, RS485
- Bezel Material: Valox 3706
- Membrane Material: Lexan HP60
- Power Supply: 12–30 VDC
- Power Consumption: 12 Watts
- Operating System: Windows CE
- Dimensions: 8.0 x 6.3 x 3.5 inches (20.3 x 16.0 x 8.9 cm)
- Weight: 2 lbs
Typical Applications
The IC754VSB06MTD QuickPanel View is ideal for process monitoring, factory automation, and industrial control panel applications. For instance, it is commonly used in assembly lines, packaging machinery, and SCADA systems. Its compact form factor and versatile communication interfaces allow integration into both new and legacy automation systems, making it a trusted solution for operators needing reliable HMI functionality.
FAQ
Q: Can this HMI interface with modern PLCs?
A: Yes, it supports Ethernet, RS232, and RS485 communication for integration with a wide range of PLCs.
Q: What is the display resolution of the IC754VSB06MTD?
A: The device features a 6-inch monochrome display with a resolution of 320 x 240 pixels.
Q: Is the terminal still supported?
A: This model is discontinued, but it remains functional in existing systems and can be serviced via authorized providers.
Q: What is the power requirement?
A: The QuickPanel View operates on a 24 VDC supply with 12 Watts of power consumption.
Q: Does it support touch input?
A: Yes, it features a 12-bit resistive touchscreen suitable for precise operator interaction.
