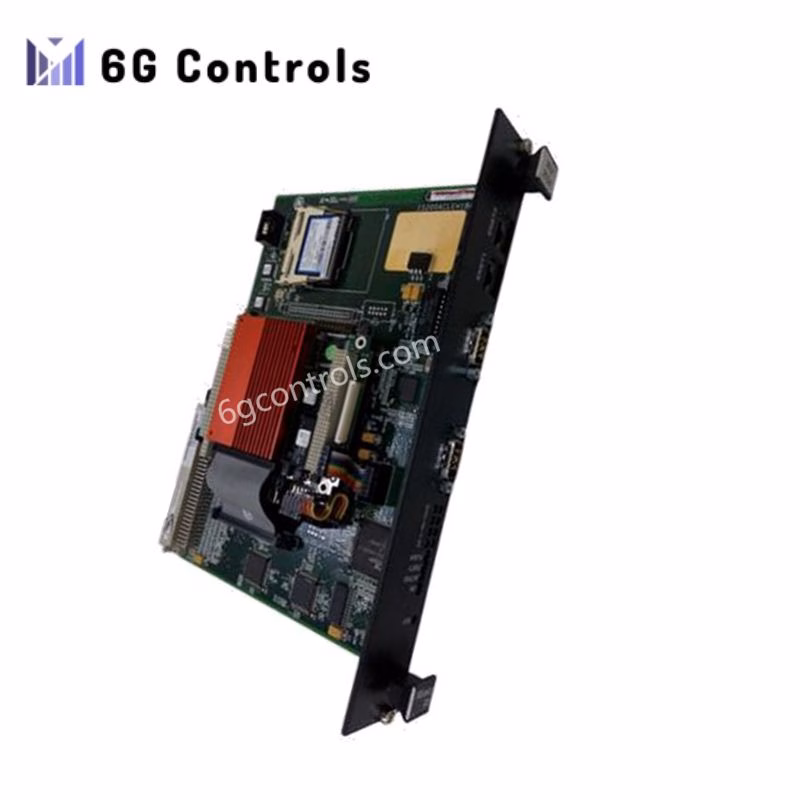

GE IS200ACLEH1BCB(IS215ACLEH1B) Application Control Layer Module

Overview

The GE IS200ACLEH1BCB(IS215ACLEH1B) is an Application Control Layer Module. GE developed it for the Mark VI Speedtronic Turbine Control System. It manages key control functions for gas and steam turbines. Moreover, it ensures real-time data handling and system communication. Engineers can install it easily into the EX2100 exciter rack. Its design allows stable performance in harsh industrial environments. Additionally, backward compatibility supports system upgrades without major rewiring.

Technical Specifications

• Manufacturer: GE (General Electric)
• Series: Mark VI Turbine Control System
• Module Type: Application Control Layer Module (ACLE)
• Board Type: Modular with faceplate
• Placement: Rack card (fits EX2100 exciter rack)
• Revisions: Three (B, C, B)
• Backwards Compatibility: First two revisions are compatible
• Memory: 128 MB for OS and application software
• Additional Memory: 8 MB DRAM, 4 MB BIOS
• Communication: Ethernet and ISBus
• Internal Interface: IDE to SATA converter
• Cooling Mechanism: Passive cooling with heat dissipation
• Dimensions: 14.75 cm × 9.50 cm × 3.50 cm
• Weight: 0.8 kg
