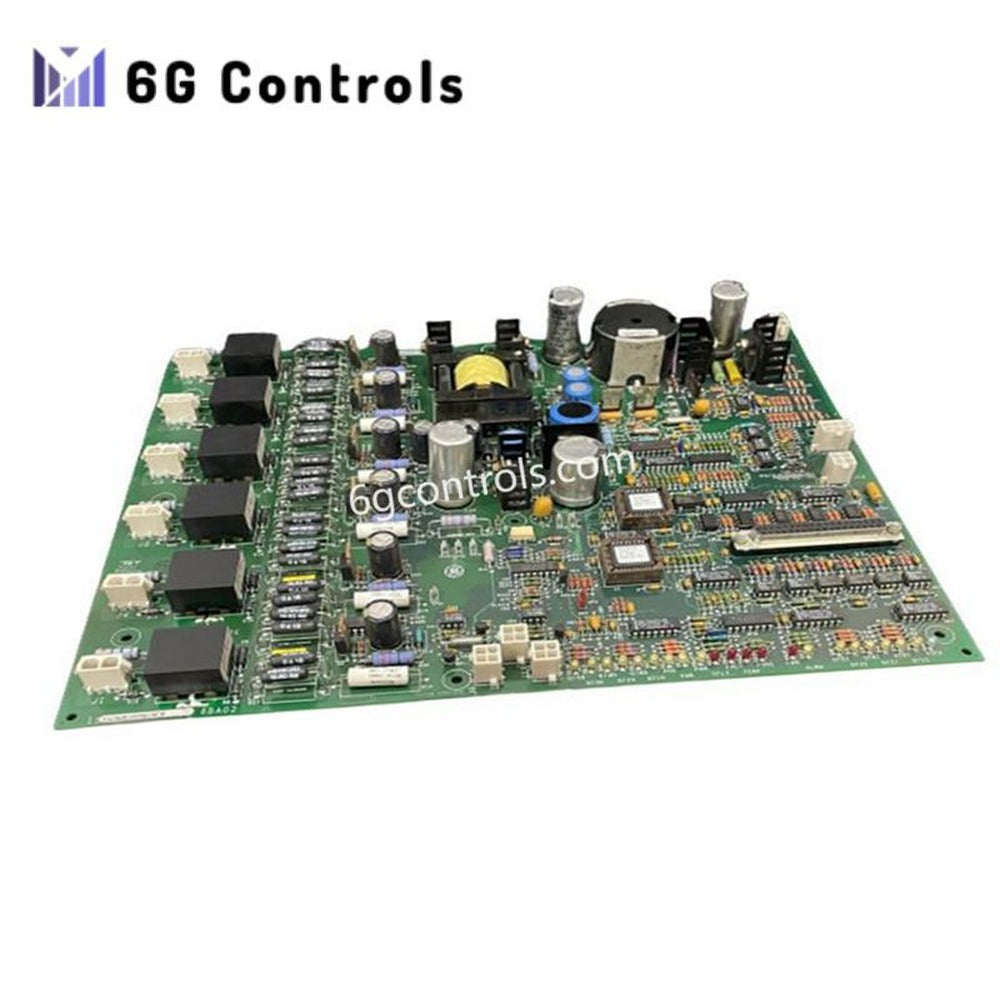

GE IS200EHPAG1BAA Gate Pulse Amplifier Board In Stock

18 in stock

Manufacturer: General Electric
Product No.: IS200EHPAG1BAA
Product Type: Gate Pulse Amplifier Board
Condition: Brand New
Payment: T/T, Western Union
Weight: 0.5 kg
Dimensions: 16 cm × 16 cm × 12 cm
Shipping port: Xiamen
Warranty: 12 months

Description
Reviews
Shipping & Payment

Overview

The IS200EHPAG1BAA is a Gate Pulse Amplifier Board designed by GE for the EX2100 excitation control system. It amplifies gate pulse signals from the ESEL logic board and sends them to six Silicon-Controlled Rectifiers (SCRs). This board ensures precise SCR triggering, stable excitation control, and system protection in high-power industrial environments. It also monitors conduction current, airflow, and temperature to maintain optimal operation. Additionally, it provides fault detection and status indication via onboard LEDs.

Technical Specifications

Function: Gate pulse amplification for SCR control
Inputs: Six gate command signals from the ESEL logic board
Power Supply: 125 VDC nominal (provided by EPDM)
Monitoring Features:
- SCR current conduction feedback
- Airflow monitoring via fan rotation sensors
- Temperature monitoring for thermal protection
Protection Features:
- Overtemperature alarm at 76°C (170°F)
- Fault trip at 87°C (190°F)
Status Indicators (LEDs):
- Power status
- Gate command activity
- SCR output
- Bridge current
- Cooling fan operation
- Fault conditions
Environmental Ratings:
- Operating temperature: −30°C to +65°C
- Storage temperature: −40°C to +85°C
- Humidity: 5% to 95%, non-condensing
Weight: 0.5 kg

Payment: T/T, Western Union.

Shipping port: Xiamen.

Lead time: Typically 1–3 working days after payment confirmation (subject to stock).

Worldwide delivery: We ship industrial automation parts to customers around the world. Freight is quoted with your RFQ.
