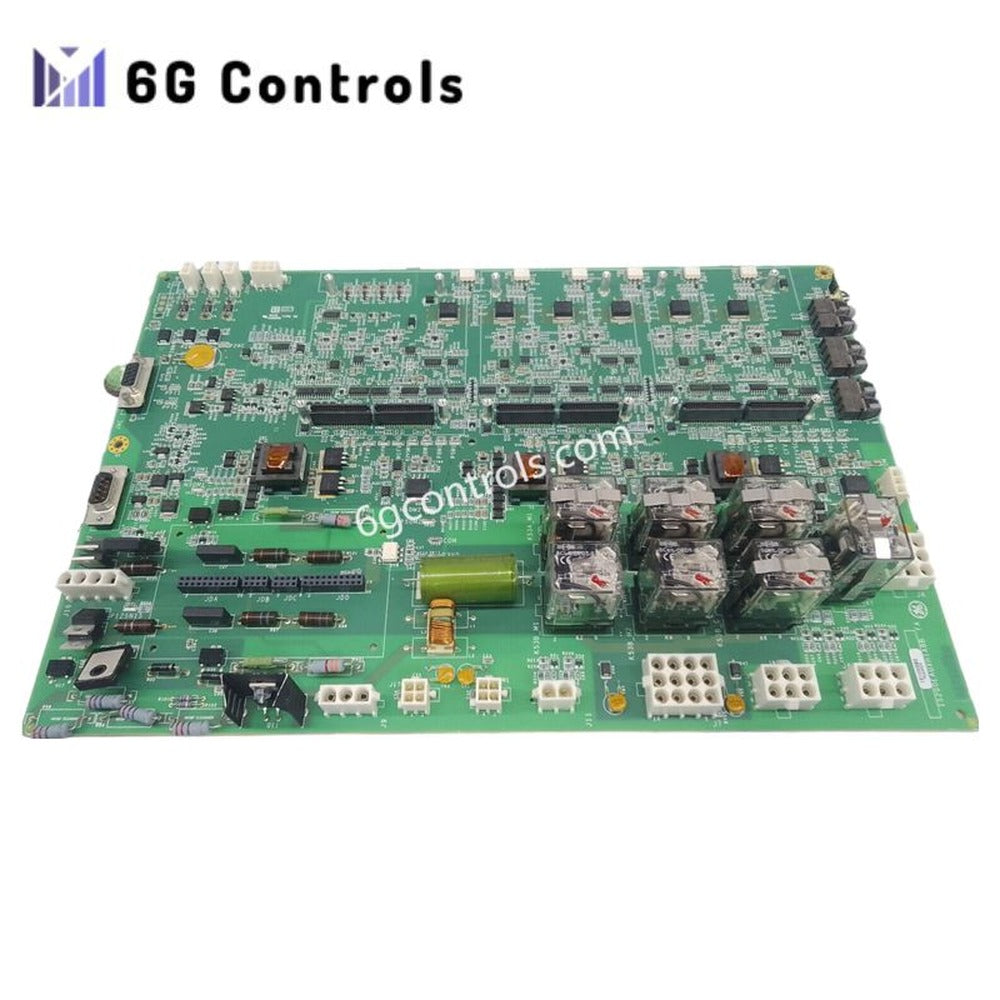

GE IS200ESYSH3A I/O Terminal Board With Good Price

Overview

The GE IS200ESYSH3A is an I/O Terminal Board designed for use in the GE EX2100e excitation control system. It provides essential input and output interfaces that link external field devices to the exciter. Engineers install this board in simplex control systems to connect generator voltage and current feedback, trip relays, and auxiliary inputs. Its compact design and high-speed serial link ensure fast, reliable communication with the main controller.

Technical Specifications

• Product Type: I/O Terminal Board
• Model Number: IS200ESYSH3A
• Manufacturer: General Electric (GE)
• System Compatibility: EX2100e Excitation Control System
• Control Sections: M1
• Group Variation: H3
• Manual Reference: GEI-100772

Redundancy and Control

• Redundancy Type: Simplex Control
• High-Speed Serial Link: Yes

Input Channels

• Auxiliary Contact Inputs: 7 (55 VDC powered)
• Generator CT Inputs: 2 (rated at 1A or 5A)
• Generator PT Voltage Inputs: 2 three-phase sets

Output Channels

• Trip Relay Outputs: 2 (used for lockout device control)

Connectivity

• Number of Sub-D Pin Connectors: 6
• Interface Type: PT and CT connections

Physical

• Weight: 0.45 kg
