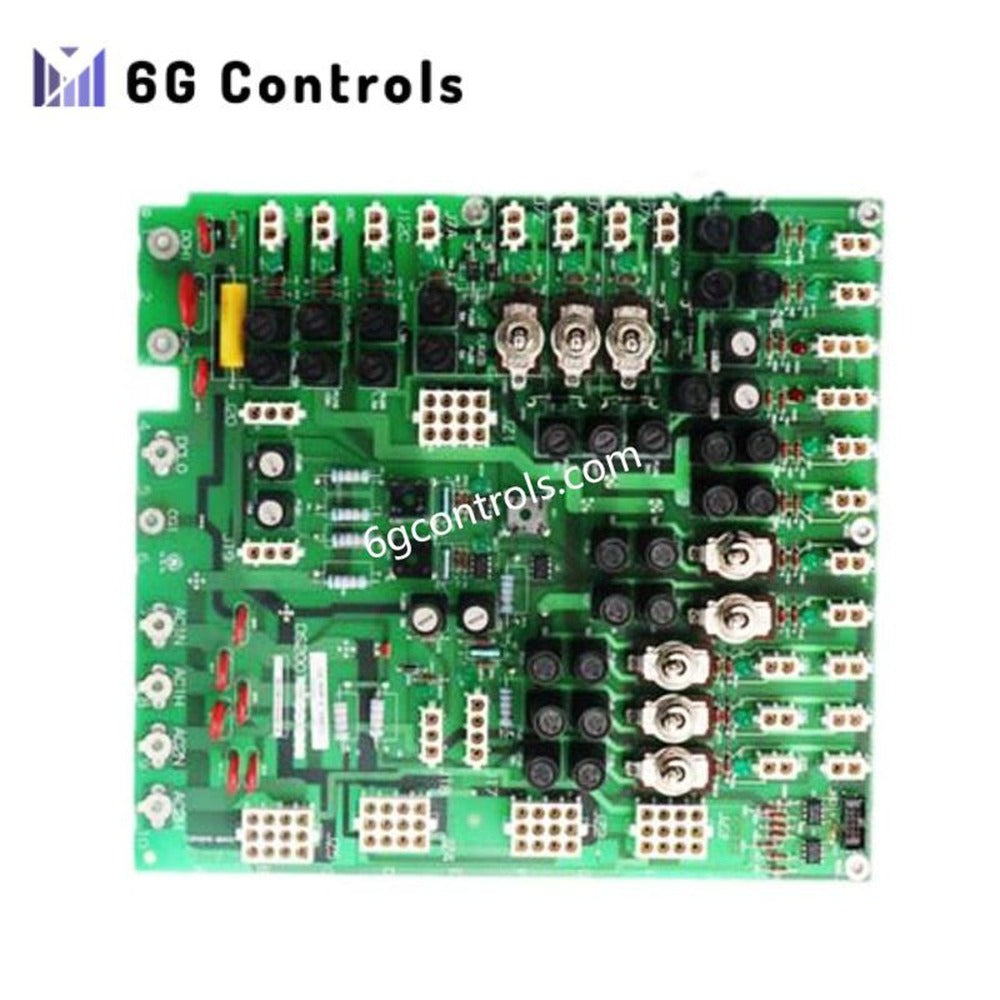

GE IS200JPDEG1A DC Power Distribution Board

Overview

The GE IS200JPDEG1A is a DC Power Distribution Board for the Mark VIe turbine control system. It distributes 125 VDC power from batteries or rectified sources to terminal boards and I/O packs. Moreover, it integrates protection and diagnostic features that improve reliability and simplify maintenance.

Technical Specifications

• Function: DC power distribution for Mark VI control systems
• Input Voltage: 125 VDC
• Output Channels: Multiple protected DC outputs for terminal boards and I/O packs
• Connectors: Two 50-pin diagnostic connectors (P1, P2)
• Mounting: Sheet metal bracket with grounding terminal; fits PDM-style assemblies
• Protection Features: Overload, overvoltage, overtemperature, lightning, and EMI protection
• Coating Type: Thick protective PCB coating (non-conformal)
• Diagnostic Interface: Feedback and monitoring via PPDA I/O Pack
• Application: Turbine control, industrial automation, and energy systems
• Manufacturer: GE Energy
• Series: Mark VIe
• Part Number: IS200JPDEG1A
• Functional Acronym: JPDE
• Functional Description: DC Battery Distribution Board
• PCB Coating: Normal Coating
• Functional Revision 1: A
