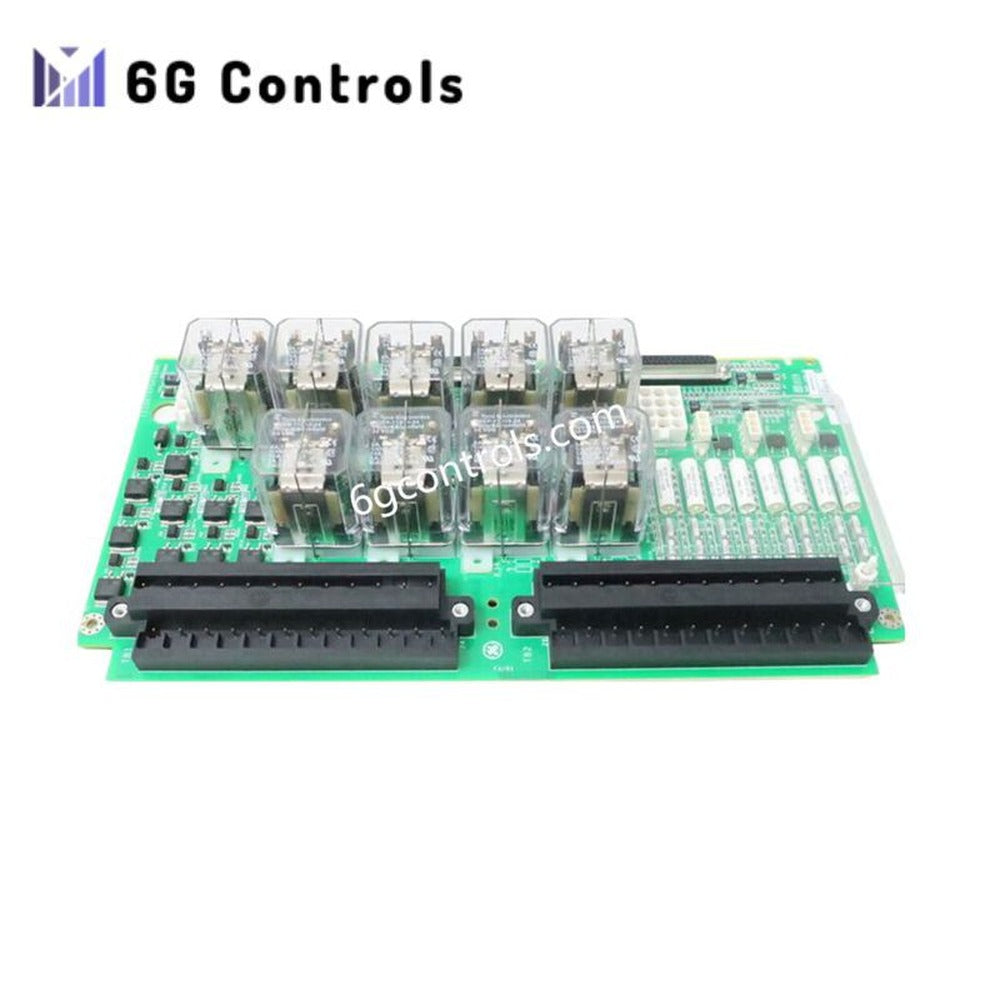

GE IS200JPDEG1ABB DC Power Distribution Board

Overview

The GE IS200JPDEG1ABB is an advanced DC Power Distribution Board for GE’s Mark VIe turbine control systems. It distributes regulated DC power from battery sources or rectified AC supplies to system components such as terminal boards and I/O packs. With its integrated microprocessor, advanced protection features, and modular design, the board ensures safe, reliable, and efficient power distribution in demanding industrial environments.

Technical Specifications

• Function: DC power distribution for Mark VIe control systems
• Input Voltage: 125 VDC
• Output Channels: Multiple protected DC outputs for system loads
• Processor: Integrated microprocessor for fast data handling and control
• Connectors: Dual 50-pin diagnostic connectors (P1 and P2) for feedback and monitoring
• Mounting: Sheet metal bracket with grounding terminal; PDM-style assemblies; mounts directly on terminal boards
• Protection Features: Overvoltage, overload, EMI, lightning, and thermal protection
• PCB Coating: Thick protective non-conformal layer for durability
• Modular Design: Compatible with other GE automation components
• Connector Mechanism: Push-in or screw type for easy installation
• Operating Temperature: -30 to 65 °C (-22 to 149 °F)
• Storage Temperature: -40 to 85 °C (-40 to 185 °F)
• Relative Humidity: 5% to 95% non-condensing
