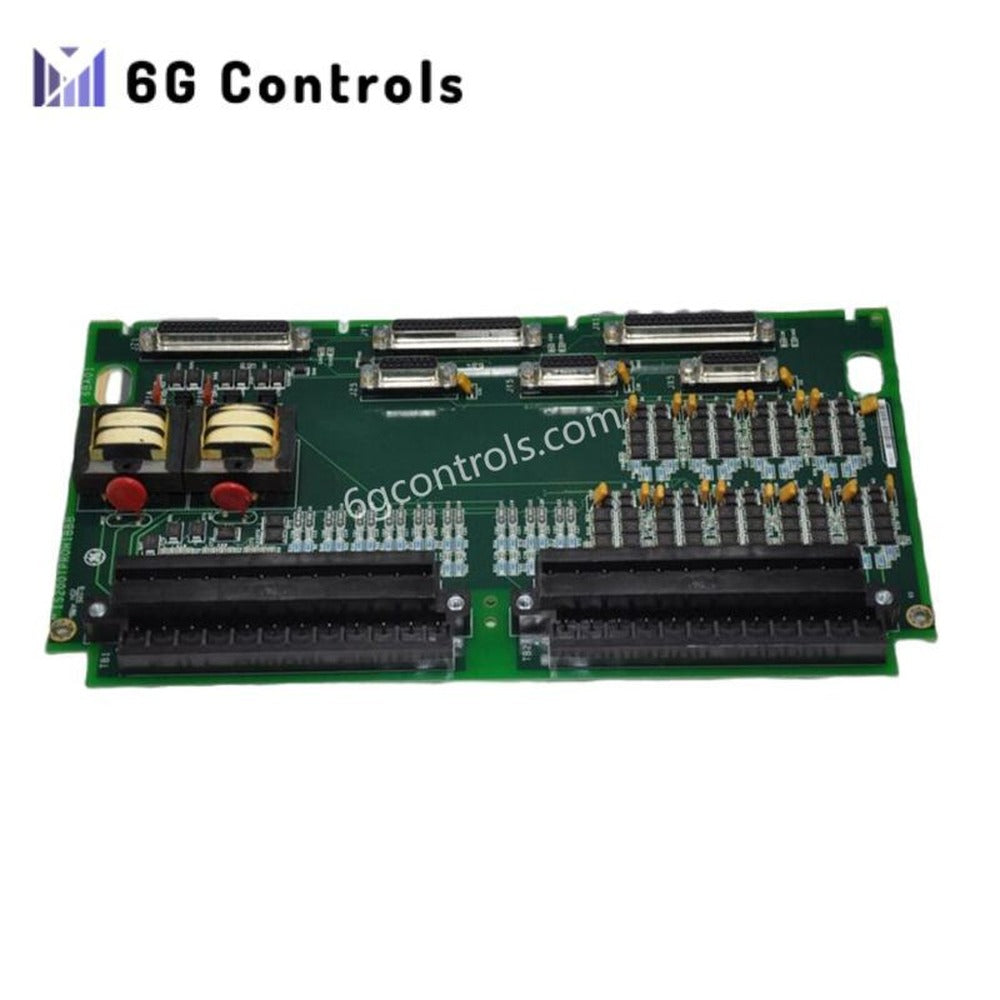

GE IS200JPDMG1A Power Distribution Board High Quality

Overview

The GE IS200JPDMG1A is a Power Distribution Board built for the GE Mark VIe Control System. It ensures stable power delivery to system components with high reliability. The board features three isolated power buses (R, S, T) to provide redundancy and fault isolation. It supports integration with I/O packs and offers fuse protection to guard against overcurrent and short circuits. The unit is DIN-rail mountable, compact, and approved for Class 1 Division 2 hazardous environments.

Technical Specifications

• Product Type: Power Distribution Board
• Model Number: IS200JPDMG1A
• Manufacturer: General Electric (GE)
• System Compatibility: GE Mark VIe Control System
• Power Input: 28V DC from an external AC/DC or DC/DC converter
• Power Distribution: Three independent power buses (R, S, T)
• Protection: Fuse protection for all outputs
• Connectivity:
  • Two 50-pin connectors (P1, P2)
  • One DC62 female connector (JA1)
  • Two terminal blocks for bus access
• Max Input Current: 35A per terminal block screw
• Mounting Type: DIN-rail mounting
• Dimensions: 16.51 cm (H) x 17.8 cm (W)
• Operating Temperature: -30°C to +65°C
• Storage Temperature: 0°C to 60°C
• Agency Approval: Class 1 Division 2 explosive atmosphere
