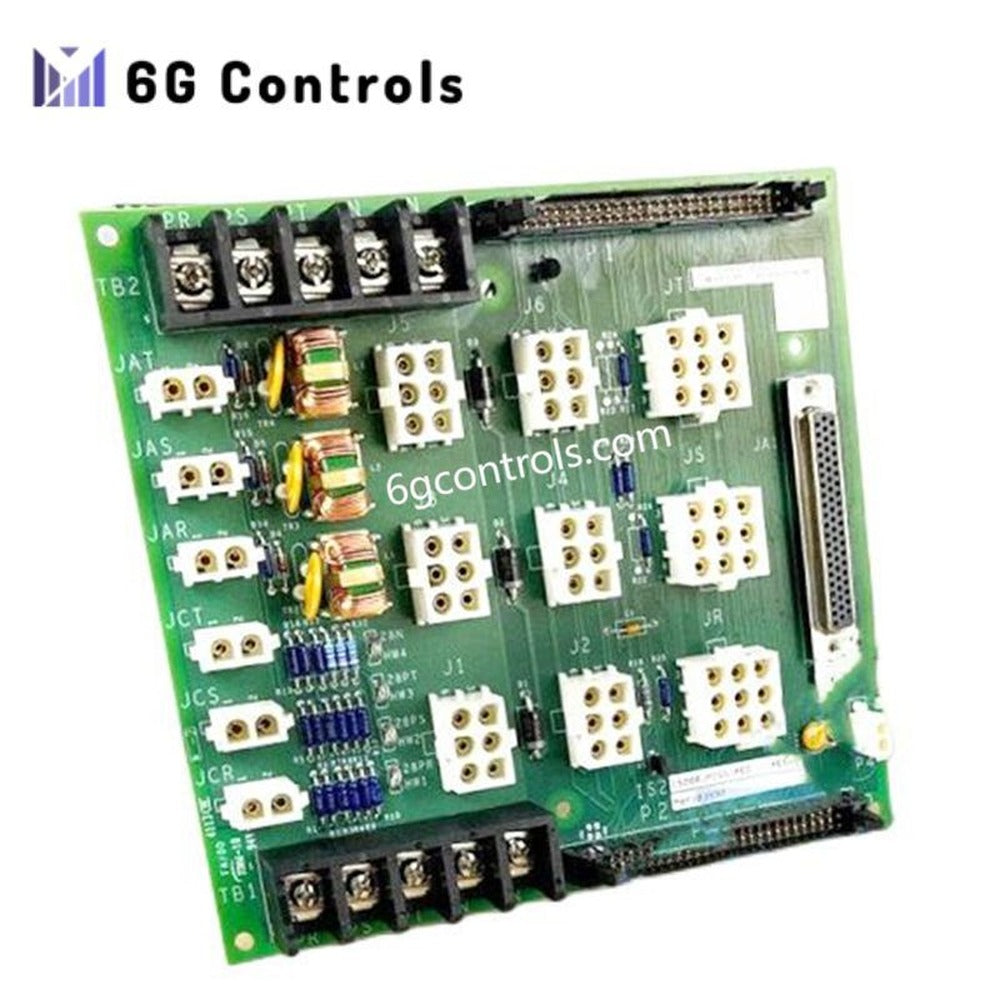

GE IS200JPDMG1ACC Power Distribution Card Brand New

The GE IS200JPDMG1ACC is a Power Distribution Card designed for the Mark VI Turbine Control System. It efficiently distributes protected control power to I/O packs, ensuring stable and reliable operation in industrial environments. With built-in short circuit protection, robust fuse protection, and support for hazardous locations, this module plays a critical role in turbine control and industrial automation systems.

Technical Specifications

Model Number

• IS200JPDMG1ACC

Type

• Power Distribution Card

Power Source

• Operates on a 125V DC battery system.

• Supports 120/240V AC when used with a power converter.

Input Voltage

• Accepts 28V DC.

Maximum Current

• Handles up to 35 Amps.

Connections

• Equipped with J1 and J1X connectors for daisy-chaining multiple boards.

• Uses a terminal block for secure wiring.

Components

• Includes 24 varistors and 24 two-position plugs, arranged in three rows of eight.

Short Circuit Protection

• Designed for gas turbines with a separate power source for ignition transformers.

• Provides short circuit protection of 20 A or less.

Mounting Strategy

• Supports DIN-rail mounting.

Installation

• Designed for panel installation.

Operating Temperature

• Functions within -40°C to +70°C (-40°F to +158°F).

Certifications

• Suitable for hazardous locations: Class 1 Division 2 and ATEX zones.

• Meets UL/ATEX HazLoc requirements.

Protection

• Features fuse protection for all outputs.

Size & Weight

• 200 mm x 150 mm x 50 mm

• 0.5 kg
